Keithley 8010-DTB-220 – Device Test Board

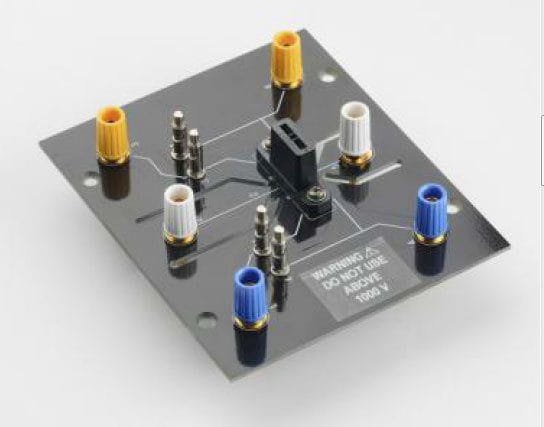

The Model 8010-DTB-220 is a device test board for testing 3-terminal devices in a TO-220 or TO-247 package and 2-terminal axial-lead devices. The test board is used with Keithley Instrument Models 8010 High Power Device Test Fixture and 8011 High Current Test Socket Kit.

Electrical characteristics
The following characteristics apply when used with the Model 8010 High Power Device Test Fixture: :

• Maximum voltage: 1000 V
• Maximum DC current: 15 A
• Maximum pulsed current: 100 A for 1 ms, 1 percent duty cycle
