Keithley HV-CA-554-1 – High-Voltage Triaxial Cable

• High-Voltage Triaxial Cable
• Cable Length: 3.3 ft (1.0 m)
• Rated voltage: 3300 V
• Rated amperage: 2.0 A
• Center/guard to shield: 5250 V

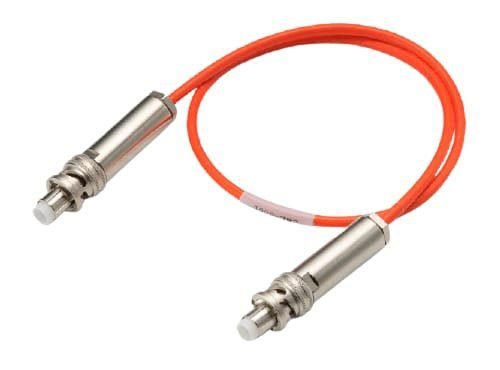

The Keithley HV-CA-554-1 is a high-voltage triaxial cable assembly that is terminated on either end with a male high-voltage triaxial connector.

Note: With the Model 2657A System SourceMeter Instrument, the voltage between the Guard and HI (inner shield and center conductor) will typically be less than 1 V under steady-state conditions. This results in a much lower leakage current between the inner shield of the cable and the center conductor.
