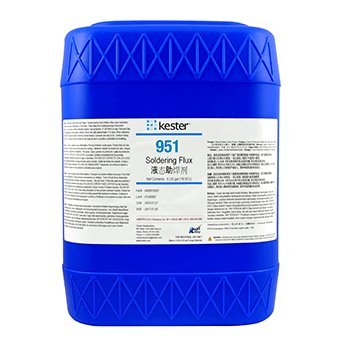

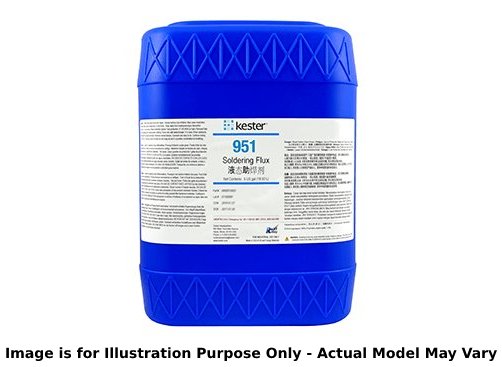

Kester 63-0000-0951 – Soldering Flux, 951, Zero-Halogen, Non-Rosin, 1 Gallon

• 951 Soldering flux
• Type: No-clean
• Flux Type: Alcohol-based organic acid
• Size (gallons): 1

The Kester 951 is a zero-halogen, non-rosin flux designed for wave soldering, conventional, and surface-mount circuit board assemblies. Because of the extremely low solids content (2.0%) and the nature of the activator system, virtually no residue is left on the assembly after soldering. Boards are dry and cosmetically clean as they exit the wave solder machine. There are no residues to interfere with electrical testing.

951 exhibits improved soldering performance to minimize solder bridges (shorts) and excessive solder defects. This flux is suitable for automotive, computer, telecommunications, and other applications where reliability considerations are critical. The surface insulation resistance on soldered boards is higher than that provided by typical water-soluble fluxes. 951 contains a corrosion inhibitor such that no corrosion products are formed when bare copper surfaces are exposed to humid environments.
