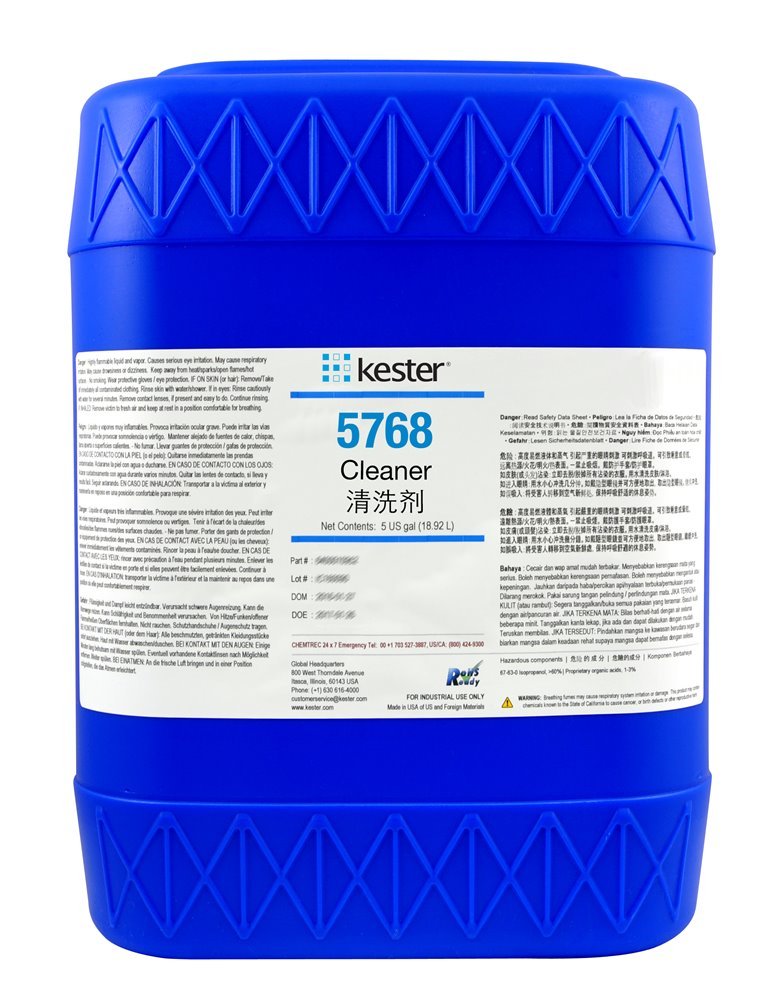

Kester 64-0000-5768 – 5768 Cleaner, 5 Gallons

• Size: 5 Gallons
• Enhanced ability to solubilize flux residues
• Easily cleaned in water
• Effective for both rosin and water soluble flux chemistries
• RoHS Compliance

Kester 5768 Cleaner is a highly concentrated liquid cleaner which is added to water to make a non-foaming solution for removing rosin flux residue. The alkaline chemicals in 5768 react with rosin by a chemical conversion known as saponification to form soaps which are water soluble. The resulting rosin soap and any water soluble residue, such as activator salts, can then be rinsed away with water.

5768 possesses enhanced ability to solubilize unsaponifiable material that is normally present in rosin and in additives used in some flux or solder paste formulations. This assures excellent visual and ionic cleanliness of circuit boards after cleaning. A significant feature of this formulation is its stable composition during use at elevated temperatures such that a greatly increased operating life is achieved. This results in less frequent discharge of the wash tank for replacement with fresh solution and in a process cost reduction.

Another special feature of 5768 is that unlike other saponifier products which tend to mildly etch the solder surface, it leaves joints bright and shiny after cleaning. 5768 eliminates the need for expensive, toxic and environmentally harmful solvents traditionally used for flux removal.

RoHS Compliance

This product meets the requirements of the Restriction of Hazardous Substances (RoHS) Directive, 2015/863/EU for the stated banned substances.

Cleaning

Deionized water is recommended for the wash solution and rinse tank section of in-line spray cleaning equipment. Use of hard or high mineral content tap water will reduce cleaning efficiency and cause scale build up in the cleaning equipment. There will also be increased consumption of 5768 because the saponifier will react with the minerals in hard tap water.

Disposal

5768 does not contain phosphates, dichromates, caustic soda, inorganic salts, terpenes or halogenated hydrocarbon solvents. The spent cleaning solution is biodegradable. However, the water may contain some lead. Local regulations should be consulted for limitations on such factor as pH, solids content, COD level and metals percentage.
