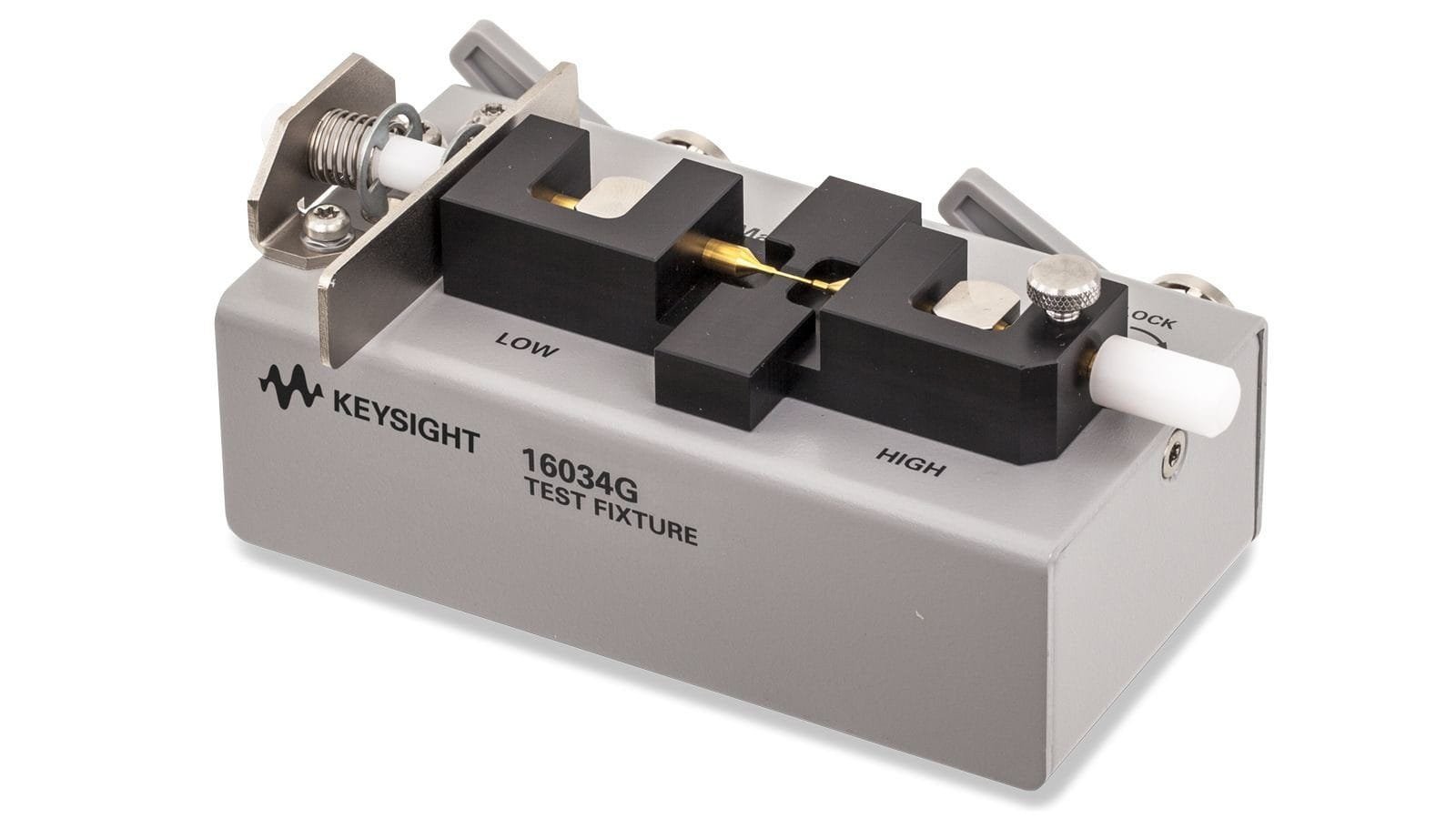

Keysight 16034G – SMD Test Fixture, 120 MHz
18 people are viewing this product right now
$3,422.10
Shipping calculated at checkout.
Estimated delivery:5 days
Test Fixture
- Frequency: DC to 120 MHz (with OPEN/SHORT/LOAD correction)
- Terminal connector: 4-Terminal Pair, BNC
- Max. voltage: +/- 42 V peak max (AC+DC)
- Dimensions (HxWxD): 50mm x 120mm x 70 mm
- Designed for impedance evaluations of SMD components
- For use with 4 terminal-pair LCR Meters and Impedance Analyzers
Guarantee Safe and Secure Payment Checkout
Description
Keysight 16034G – SMD Test Fixture, 120 MHz
The Keysight 16034G test fixture is designed for impedance evaluations of SMD. The minimum SMD size that this fixture is adapted to evaluate is 0.6mm(L) x 0.3mm(W).
This test fixture is designed to facilitate easy and accurate measurements of chip-type components and similar types not furnished with lead wires. Connection of sample components to the Keysight 16034G is done by simply pressing the loading lever to left, inserting sample components in the V-mount center section (between fixture jaws), and releasing the lever. Components that may be measured with the Keysight 16034G are the rectangular paralleled chip, cylindrical chip, and others similar in shape and type.
Applicable SMD Sizes
- 0603, 1005, 1608, 2012, 3216
Product General Attributes | |
|---|---|
| Unique Features | Frequency: DC to 120 MHz (with OPEN/SHORT/LOAD correction) Max. voltage: +/- 42 V peak max (AC+DC) Terminal connector: 4-Terminal Pair, BNC |
| Product Weight | 0.44 LBS |
| Product Height | 1.96 IN |
| Product Length | 2.75 IN |
| Product Width | 4.72 IN |
