Keysight 16197A – Bottom Electrode SMD Test Fixture
36 people are viewing this product right now
$10,788.80
Shipping calculated at checkout.
Estimated delivery:5 days

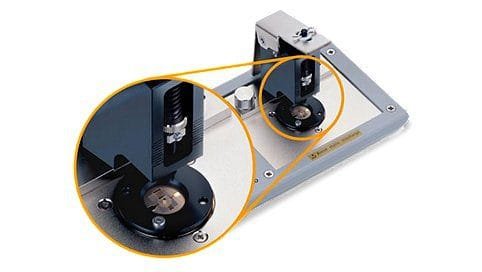

Bottom Electrode SMD Test Fixture
- Frequency range : DC to 3 GHz
- SMD size code range: 1005 (mm) to 3225 (mm)
- Size spec range (mm): (1.0 ±0.1) x (0.5 ±0.1) to (3.2 ±0.15) x (2.5 ±0.15)
- Terminal connection: 7 mm
- DUT connection: 2-Terminal
- Designed for impedance evaluations of bottom electrode SMDs
- Accommodation of the 0603 (mm)/0201 (inch) size is available (option Keysight 16197A-001)
Guarantee Safe and Secure Payment Checkout
Description
Keysight 16197A – Bottom Electrode SMD Test Fixture
The Keysight 16197A test fixture is designed for impedance evaluations of bottom electrode SMDs. It achieves stable frequency characteristics up to 3 GHz and provides highly repeatable measurements. This test fixture supports various SMD sizes, as small as 1005 (mm)/0402 (inch) and as large as 3225 (mm)/1210 (inch). Accommodation of the 0603 (mm)/0201 (inch) size is available with option 001
The 16197A uses a device guide and an electrode plate for measuring to various sizes of bottom-electrode SMDs.
Keysight 16197A Applicable DUT Size (SMD with Bottom Electrodes):
