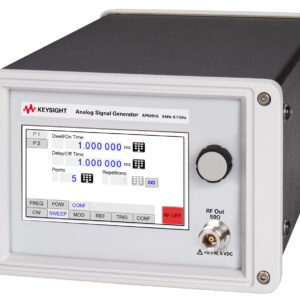

Keysight AP5001A/502 – RF Analog Signal Generator (9kHz to 2GHz)
45 people are viewing this product right now
$8,092.70
Shipping calculated at checkout.
Estimated delivery:5 days
RF Analog Signal Generator, Frequency Range, 9 kHz to 2 GHz, AP5000A Series
- Portable, general purpose RF analog signal generator
- Frequency range: 9kHz to 2GHz
- Frequency range easily upgraded to 4 or 6.1GHz via software keycode
- Step attenuator (via option AP5001A-1E1)
- Enables you to characterize and fully stress-test your devices quickly and confidently
- Best-in-class output power range and phase noise
- Accelerate testing with superior frequency switching speed
- LCD touch screen for parameter setup
- Single hard/key knob for quicker operation
- SCPI commands compatible with Keysight and R&S signal sources
Guarantee Safe and Secure Payment Checkout
Description
Keysight AP5001A/502
- Portable, general purpose RF analog signal generator
- Frequency range: 9kHz to 2GHz
- Frequency range easily upgraded to 4 or 6.1GHz via software keycode
- Step attenuator (via option AP5001A-1E1)
- Enables you to characterize and fully stress-test your devices quickly and confidently
RF Analog Signal Generator (9kHz to 2GHz)
The Keysight AP5001A/502 is an RF analog signal generator with a frequency range of 9kHz to 2GHz.
For users requiring a larger frequency range, this can also be easily upgraded via software option. Part numbers and corresponding increases are as follows:
- AP5001AU/F01: 2 GHz to 4 GHz
- AP5001AU/F02: 2 GHz to 6.1 GHz
- AP5001AU/F03: 4 GHz to 6.1 GHz
A step attenuator is also available and can be activated via option AP5001AU/1E1.
Two versions available
Keysight offers two versions of its AP5000A. A brief overview of the main differences in each can be seen below:
| AP5001A | AP5002A | |
| Frequency range | 9kHz to 2, 4 or 6.1 GHz | 9kHz to 12, 20 or 26 GHz |
| Output power | -30 to +17 dBm; -120 to +17 dBm (Opt. 1E1) | -20 to +15 dBm; -120 to +23 dBm (Opt. 1E1/1EA) |
| Phase noise at 1 GHz, 20kHz offset | -128 dBc/Hz, -130 dBc/Hz typ. | -128 dBc/Hz, -130 dBc/Hz typ. |
| Harmonics at 1 GHz | -30 dBc, -40 dBc typ. | -30 dBc, -40 dBc typ. |
| Non-harmonics at 1 GHz | -55 dBc, -65 dBc typ. | -65 dBc, -75 dBc typ. |
| Frequency switching speed | 200 µs | 300 µs |
| Modulation capabilities | AM, FM, PM, pulse, frequency chirps | AM, FM, PM, pulse, frequency chirps |
Included standard:
- Low frequency coverage down to 9 kHz
- OCXO precision frequency reference
- AM/FM/PM/Pulse modulation
- Frequency chirps
- PC control software
- 3-year Keysight warranty
- 3-year KeysightCare Technical Support

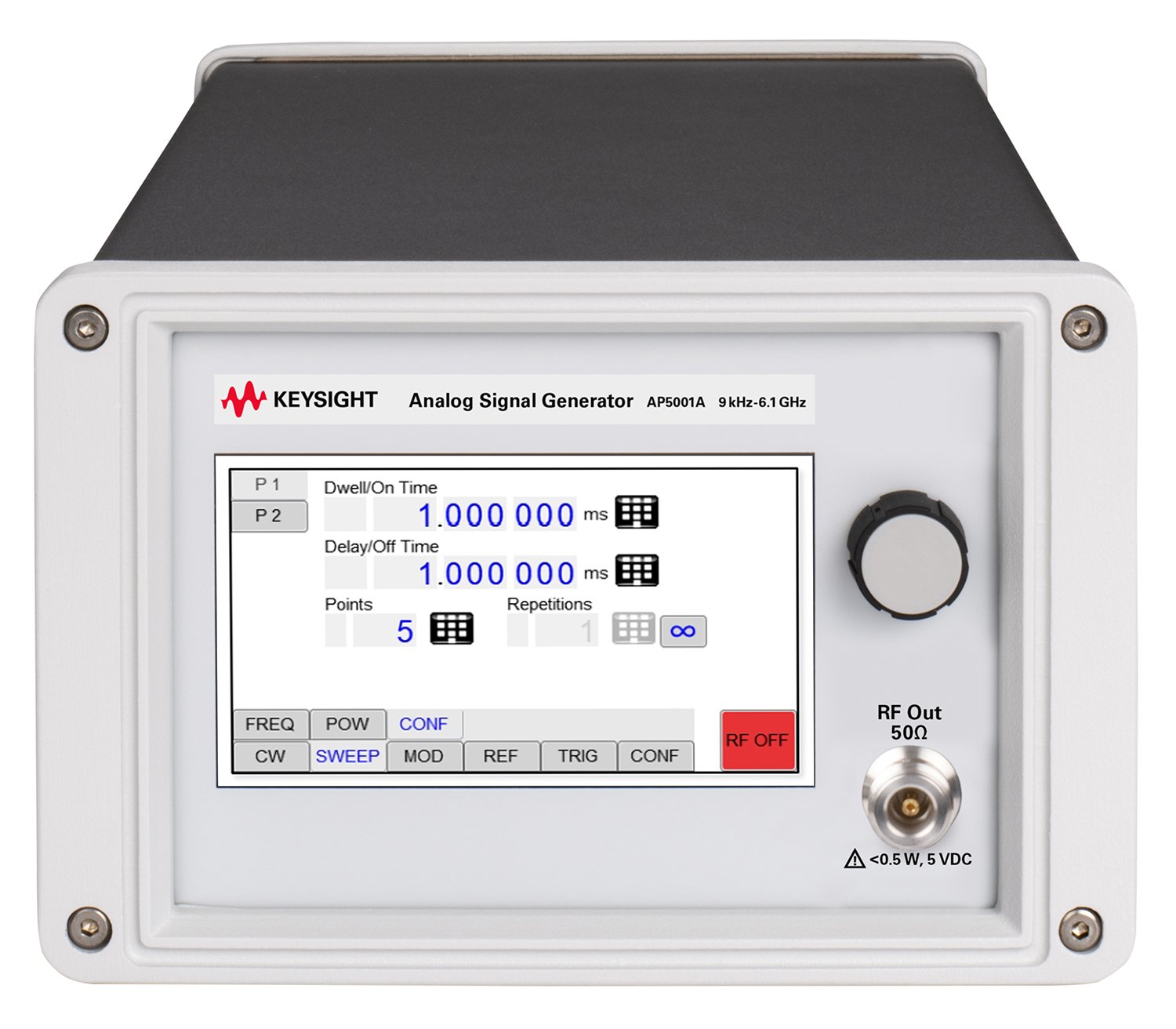

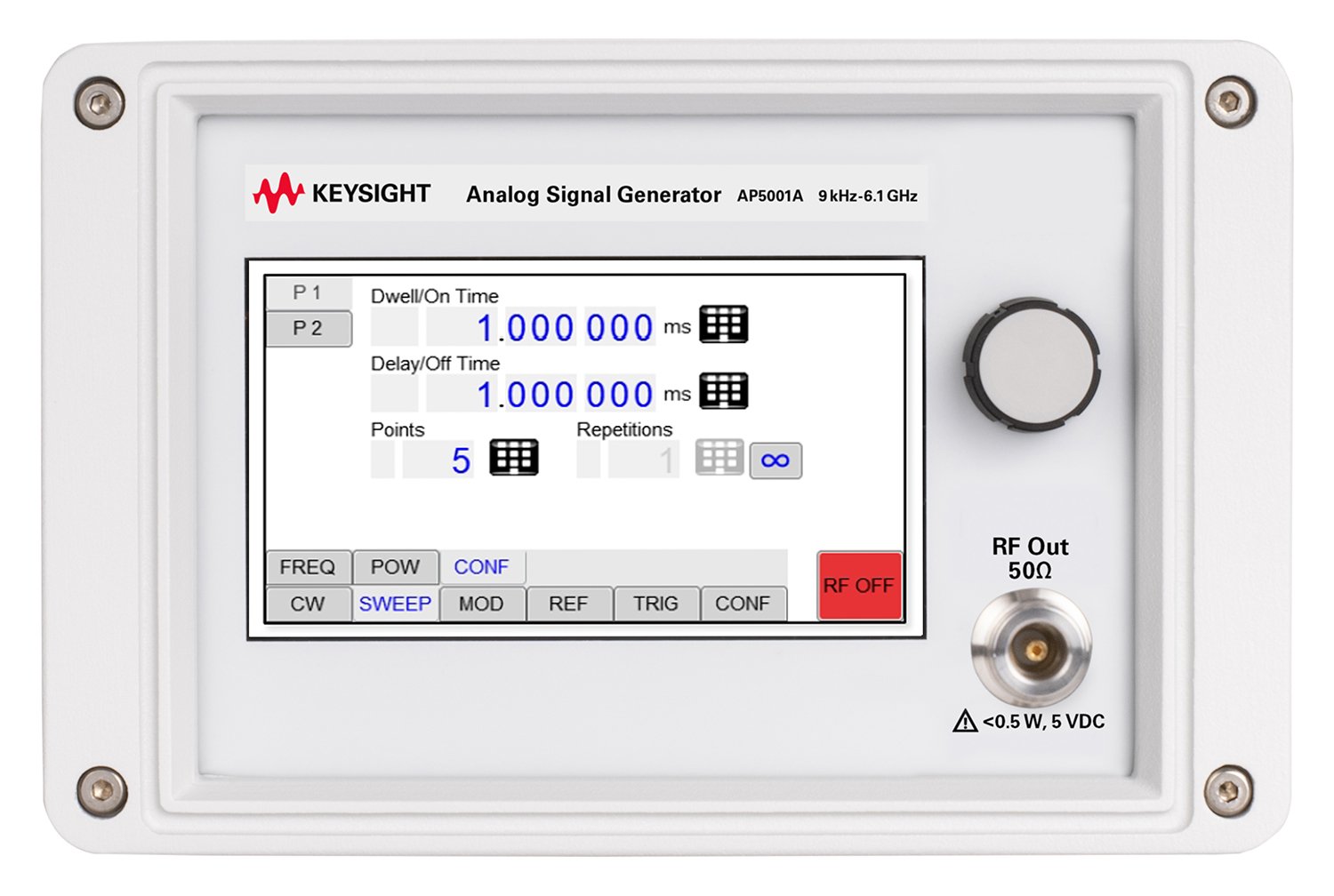

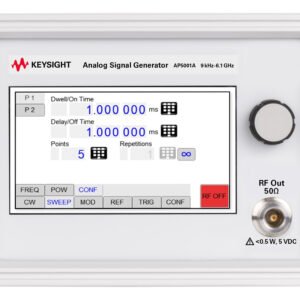

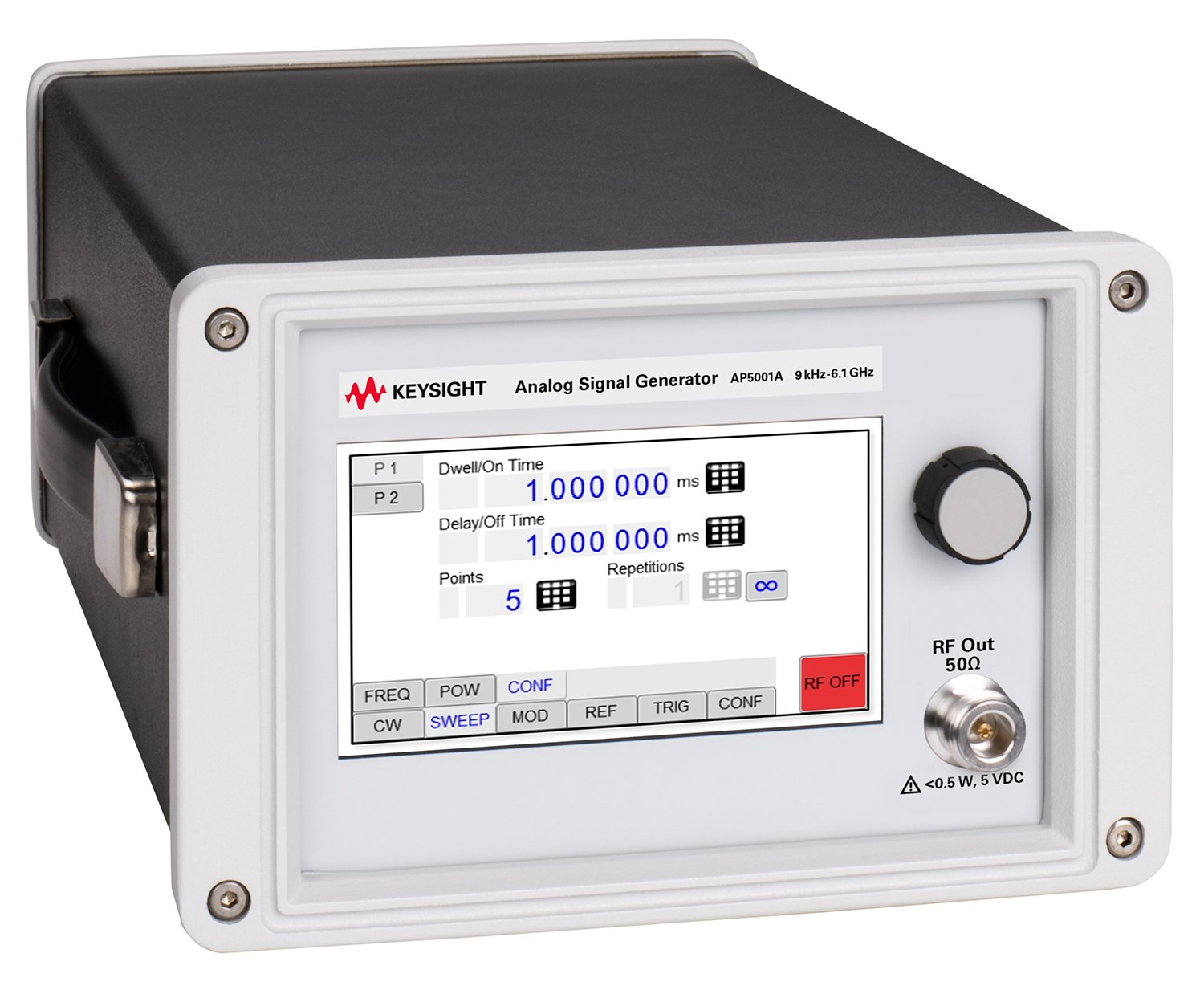

Front panel
1. RF output – N female
2. Rotary knob

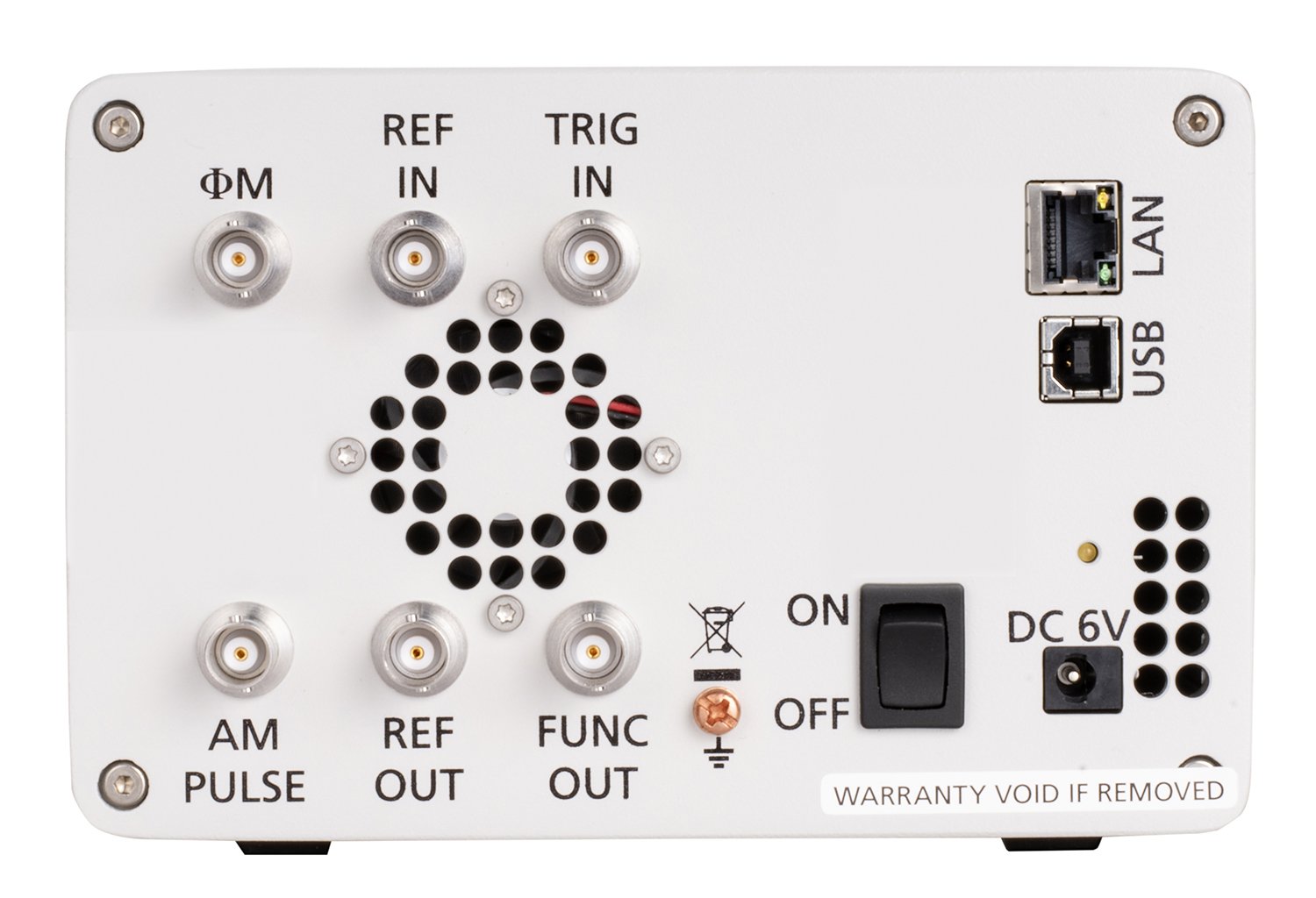

Rear panel
| 1. Trigger input – BNC female | 8. USB 2.0 device |
| 2. Function output – BNC female | 9. DC power plug |
| 3. External reference input – BNC female | 10. DC power switch |
| 4. Internal reference output – BNC female | 11. Ground screw |
| 5. FM/PM modulation input – BNC female | 12. Fan holes |
| 6. AM and pulse modulation – BNC female | 13. Fan holes |
| 7. LAN connection – RJ45 |
Generators / Counters/RF Signal Generator Template | |
|---|---|
| Type(Generator) | Bench, Portable |
| Minimum Frequency Range (kHz) | 9 kHz (0.009 MHz) |
| Maximum Frequency Range | 2 GHz (2000 MHz) |
| Modulation Types (generator) | AM, FM, Other, PM |
| Output dB Range Min | -30 dBm (-30 dB) |
| Output dB Range Max | 17 dBm (17 dB) |
| Variable/Step Attenuator | Yes |
Product General Attributes | |
| Warranty | 3 YEARS |
| Interfaces I/O | LAN / Ethernet, USB |
