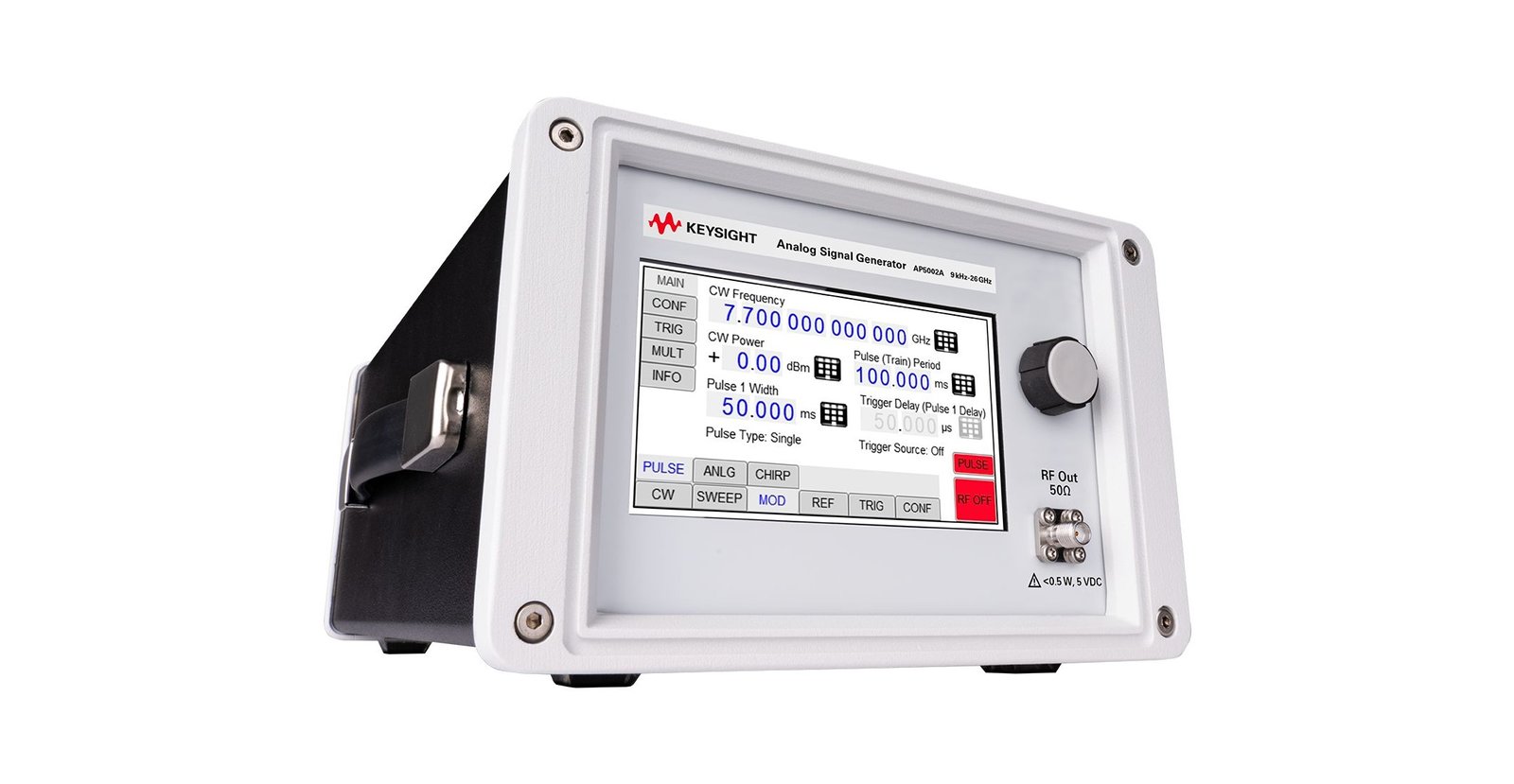

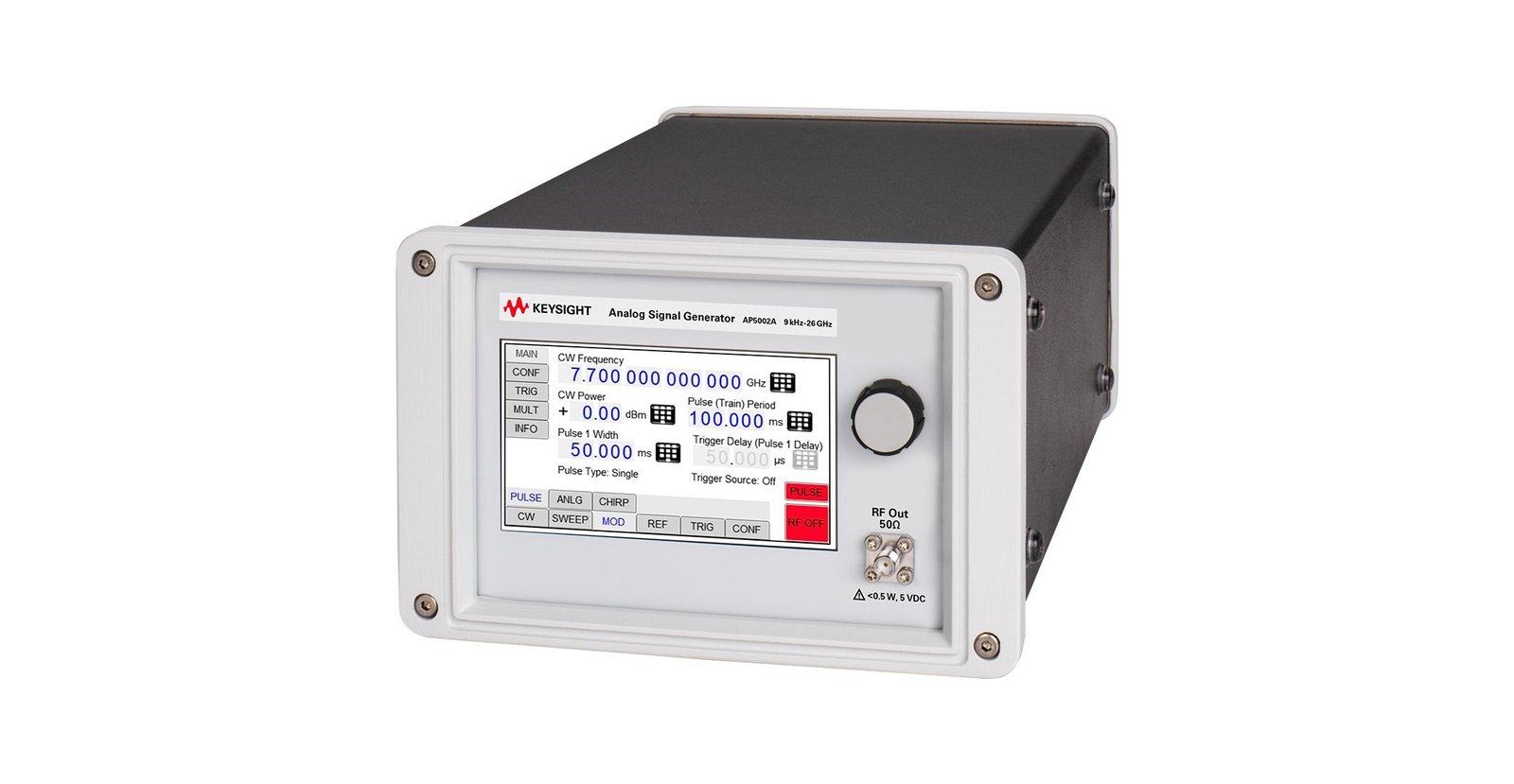

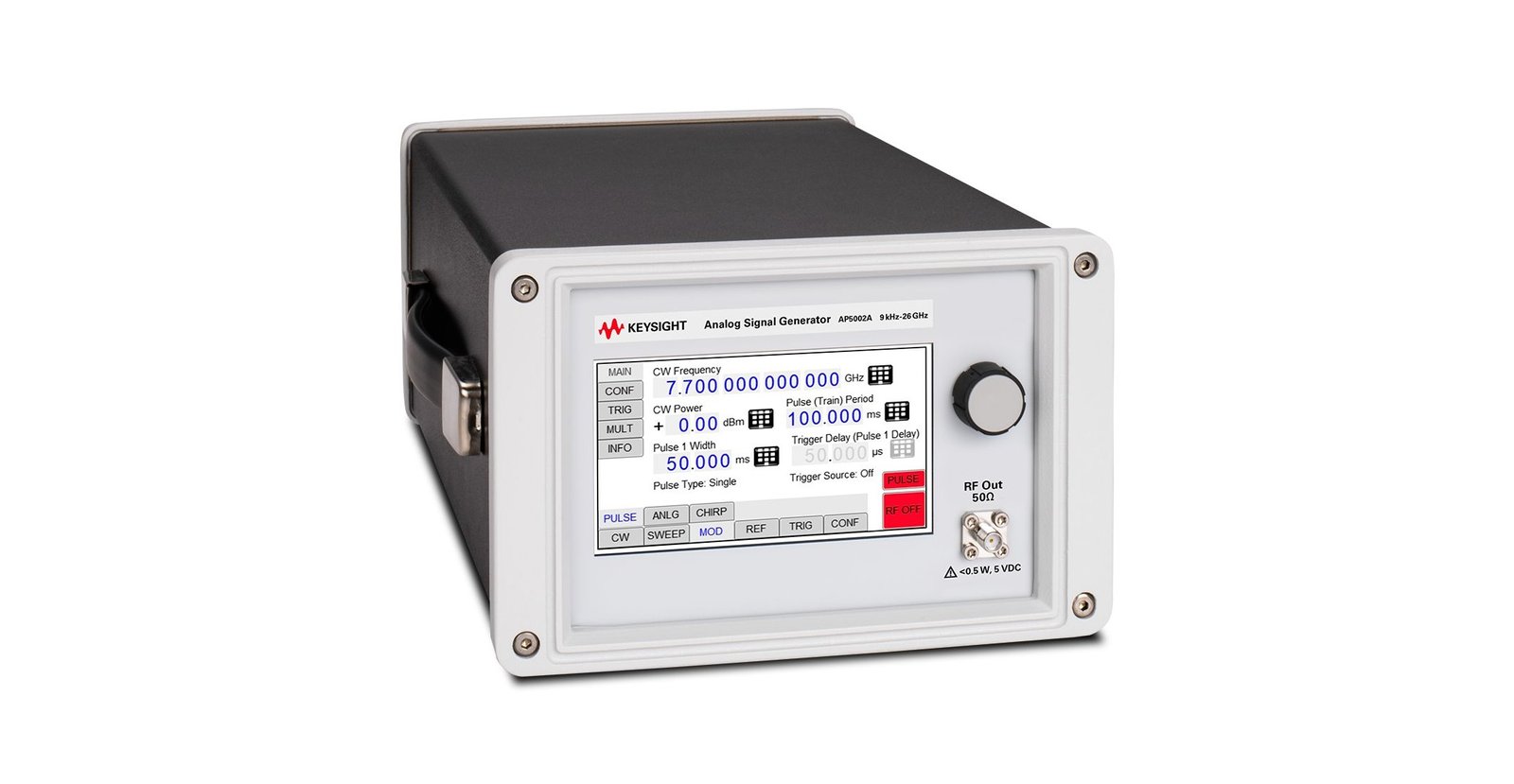

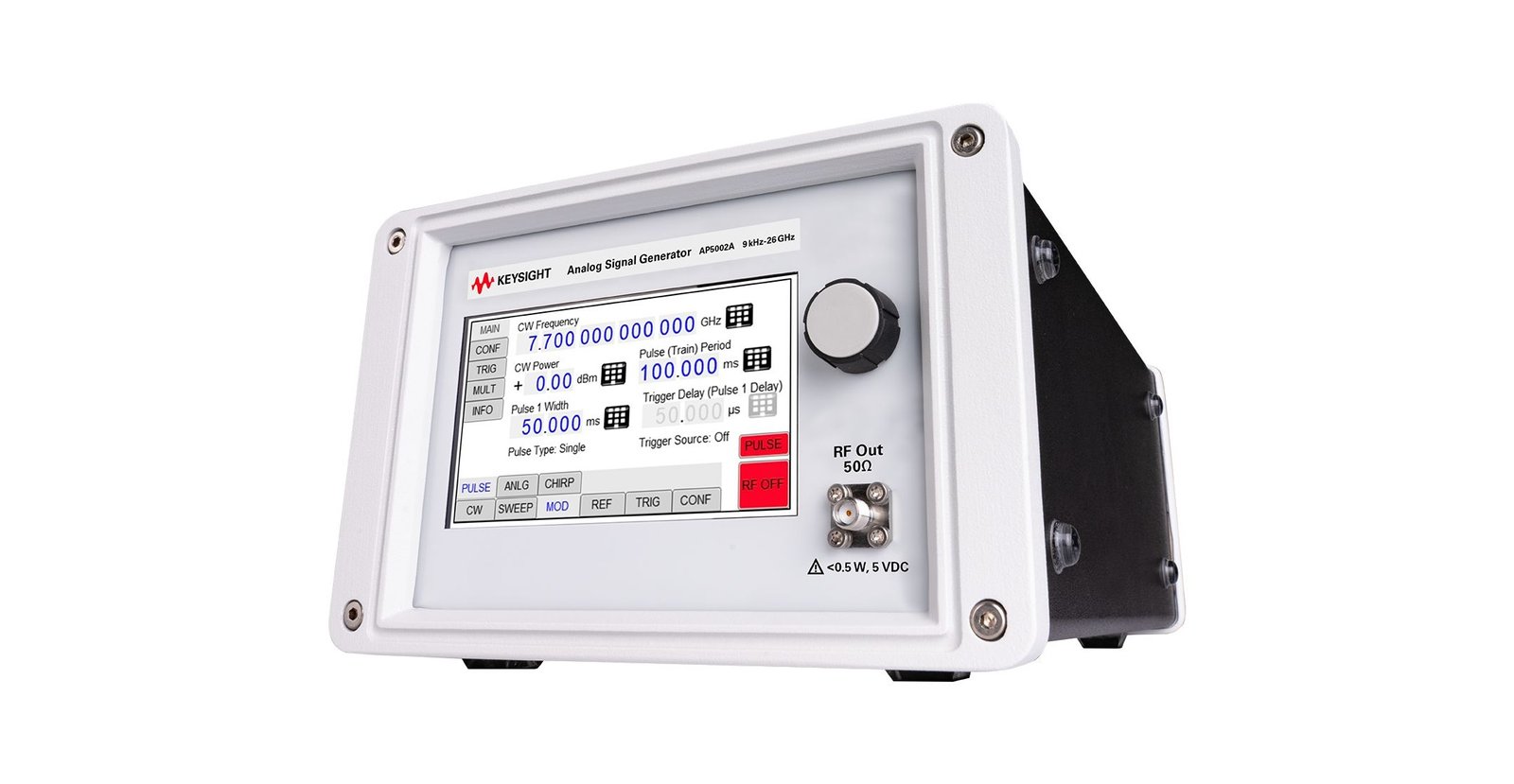

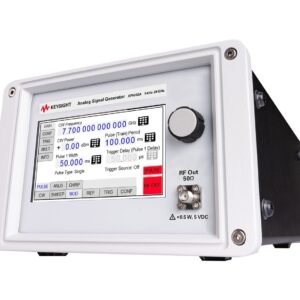

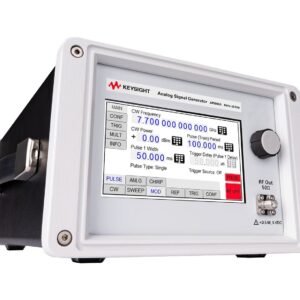

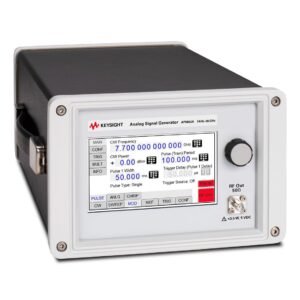

Keysight AP5002A/512 – Microwave Analog Signal Generator (9kHz to 12GHz)
41 people are viewing this product right now
$19,657.00
Shipping calculated at checkout.
Estimated delivery:5 days
Microwave Analog Signal Generator, Frequency Range, 9 kHz to 12 GHz, AP5000A Series
- Microwave analog signal generator
- Frequency range: 9kHz to 12GHz
- Frequency range easily upgraded to 20 or 26GHz via software keycode option
- Step attenuator (via option AP5002AU/1E1)
- Enables you to characterize and fully stress-test your devices quickly and confidently
- Best-in-class output power range and phase noise
- Accelerate testing with superior frequency switching speed
- LCD touch screen for parameter setup
- Single hard/key knob for quicker operation
- SCPI commands compatible with Keysight and R&S signal sources
Guarantee Safe and Secure Payment Checkout
Description
Keysight AP5002A/512
- Microwave analog signal generator
- Frequency range: 9kHz to 12GHz
- Frequency range easily upgraded to 20 or 26GHz via software keycode option
- Step attenuator (via option AP5002AU/1E1)
- Enables you to characterize and fully stress-test your devices quickly and confidently
Microwave Analog Signal Generator (9kHz to 12GHz)
The Keysight AP5002A/512 is a microwave analog signal generator with a frequency range of 9kHz to 12GHz.
For users requiring a larger frequency range, this can also be easily upgraded via software option. Part numbers and corresponding increases are as follows:
- AP5002AU/F01: 12 GHz to 20 GHz
- AP5002AU/F02: 12 GHz to 26 GHz
- AP5002AU/F03: 20 GHz to 26 GHz
Step attenuator and high output power options
The AP5002A can also be upgraded via software keycode with a step attenuator and increased output power.
Option part numbers are as follows:
- AP5002AU/1E1 – Step attenuator
- AP5002AU/1EA – High output power
Performance specifications with these options can be viewed in the chart below.
| Min | Max | Note | |
| Standard | -20 dBm | +15 dBm | 9 kHz to 26 GHz |
| With option 1E1 | -120 dbm | +15 dBm | 9 kHz to 26 GHz |
| With option 1EA | -20 dBm | +15 dBm | 9 kHz to 100 kHz |
| -20 dBm | +20 dBm | 100 kHz to 10 MHz | |
| -20 dBm | +23 dBm | 10 MHz to 7.5 GHz | |
| -20 dBm | +20 dBm | 7.5 to 20 GHz | |
| -20 dBm | +18 dBm | 20 to 24 GHz | |
| -20 dBm | +14 dBm | 24 to 26 GHz | |
| With options 1E1, 1EA | -120 dbm | +15 dBm | 9 kHz to 100 kHz |
| -120 dbm | +20 dBm | 100 kHz to 10 MHz | |
| -120 dbm | +23 dBm | 10 MHz to 7.5 GHz | |
| -120 dbm | +20 dBm | 7.5 to 20 GHz | |
| -120 dbm | +18 dBm | 20 to 24 GHz | |
| -120 dbm | +14 dBm | 24 to 26 GHz |
Two versions available
Keysight offers two versions of its AP5000A. A brief overview of the main differences in each can be seen below:
| AP5001A | AP5002A | |
| Frequency range | 9kHz to 2, 4 or 6.1 GHz | 9kHz to 12, 20 or 26 GHz |
| Output power | -30 to +17 dBm; -120 to +17 dBm (Opt. 1E1) | -20 to +15 dBm; -120 to +23 dBm (Opt. 1E1/1EA) |
| Phase noise at 1 GHz, 20kHz offset | -128 dBc/Hz, -130 dBc/Hz typ. | -128 dBc/Hz, -130 dBc/Hz typ. |
| Harmonics at 1 GHz | -30 dBc, -40 dBc typ. | -30 dBc, -40 dBc typ. |
| Non-harmonics at 1 GHz | -55 dBc, -65 dBc typ. | -65 dBc, -75 dBc typ. |
| Frequency switching speed | 200 µs | 300 µs |
| Modulation capabilities | AM, FM, PM, pulse, frequency chirps | AM, FM, PM, pulse, frequency chirps |
Included standard:
- Low frequency coverage down to 9 kHz
- OCXO precision frequency reference
- AM/FM/PM/Pulse modulation
- Frequency chirps
- PC control software
- 3-year Keysight warranty
- 3-year KeysightCare Technical Support

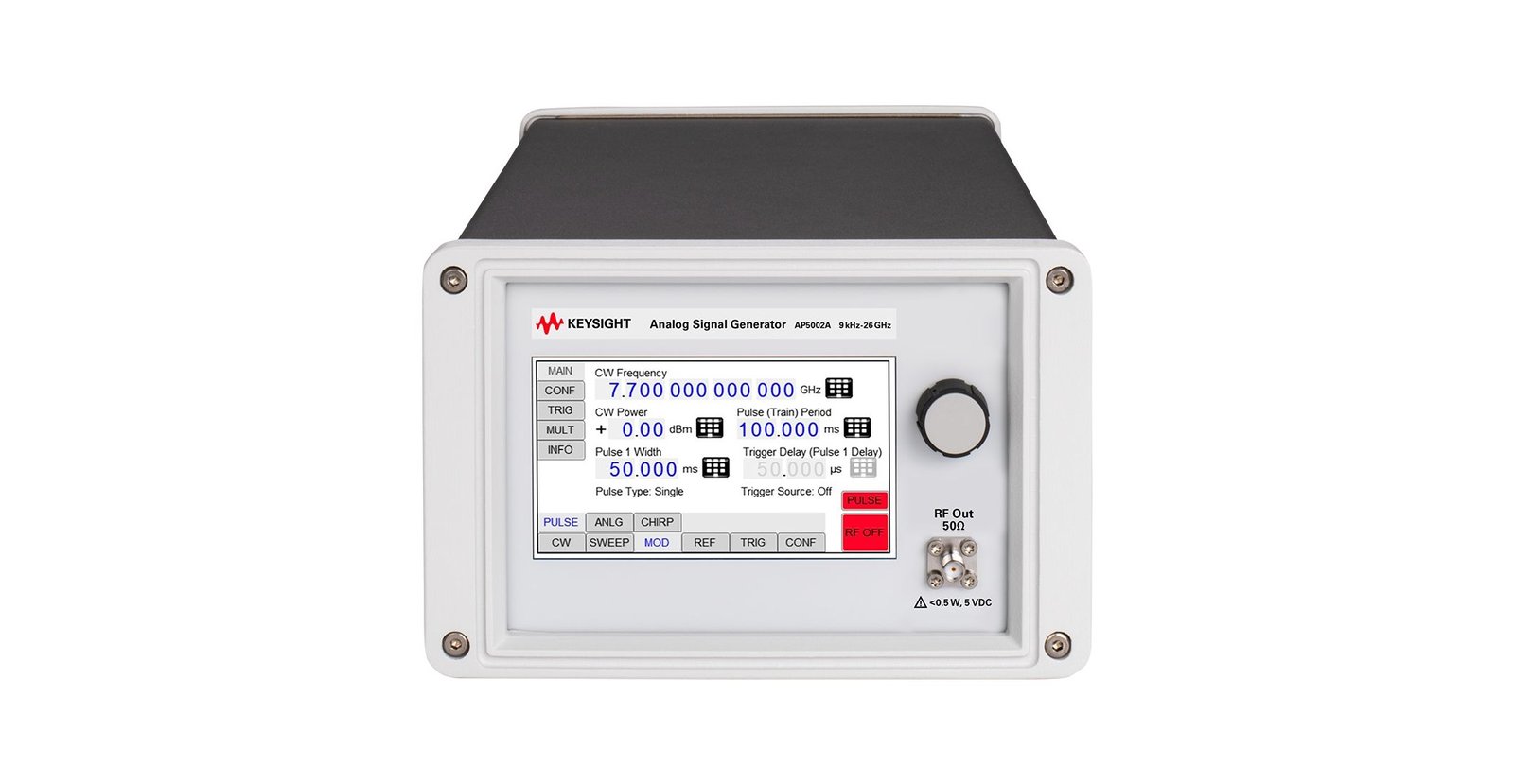

Front panel
1. Rotary Button – The rotary button is used to change the value selected on the screen.
2. RF 50 Ω connector – The female SMA-type connector provides the output for generator signals. The impedance is 50 ohm.
Rear panel
| 1. TRIG IN – This BNC female Connector is the trigger input. | 8. USB B – The USB B connector is used to connect the device to a computer. |
| 2. FUNC OUT – This BNC female Connector is the output for the function signal. | 9. Power Supply – Connect the power adaptor to this connector to supply the device with energy. |
| 3. REF IN – This BNC female Connector is the input for the reference signal. | 10. ON/OFF Switch – Turns the device on or off. |
| 4. REF OUT – This BNC female Connector is the output for the reference signal. | 11. Ground Screw |
| 5. ΦM – This BNC female Connector is the input for FM and PM. | 12. Fan Holes – The air intake of the fan. |
| 6. AM PULSE – This BNC female Connector is the input for the AM and the PULSE Modulation signal. | 13. Fan Holes – The holes by which the air is extruded. |
| 7. LAN – The LAN connector is used to connect the device to a network. |
Generators / Counters/RF Signal Generator Template | |
|---|---|
| Type(Generator) | Bench, Portable |
| Minimum Frequency Range (kHz) | 9 kHz (0.009 MHz) |
| Maximum Frequency Range | 12 GHz (12000 MHz) |
| Modulation Types (generator) | AM, FM, Other, PM |
| Output dB Range Min | -20 dBm (-20 dB) |
| Output dB Range Max | 15 dBm (15 dB) |
| Variable/Step Attenuator | Yes |
Product General Attributes | |
| Warranty | 3 YEARS |
| Interfaces I/O | LAN / Ethernet, USB |
