Keysight B2987B – Electrometer / High Resistance Meter (0.01fA), Battery Powered
10 people are viewing this product right now
$18,876.00
Shipping calculated at checkout.
Estimated delivery:5 days
Electrometer/High Resistance Meter, 0.01fA, 1000V, Battery
- Battery operation eliminates AC line noise from your critical measurements
- 0.01 fA minimum measurement resolution
- 10 PO maximum resistance measurement with 1000 V source
- 20,000 readings/s
- Easy-to-use auto navigation
- Real-time noise monitor
- 4.3” color LCD
- Graphical user interface that provides trend chart and histogram data in addition to numeric information
- Front-panel capabilities enable you to capture transient behavior and to perform quick statistical analyses without a PC
Guarantee Safe and Secure Payment Checkout
Description
Keysight B2987B
- Battery operation eliminates AC line noise from your critical measurements
0.01 fA minimum measurement resolution
- 10 PΩ maximum resistance measurement with 1000 V source
- 20,000 readings/s
- Easy-to-use auto navigation
Electrometer / High Resistance Meter (0.01fA), Battery Powered

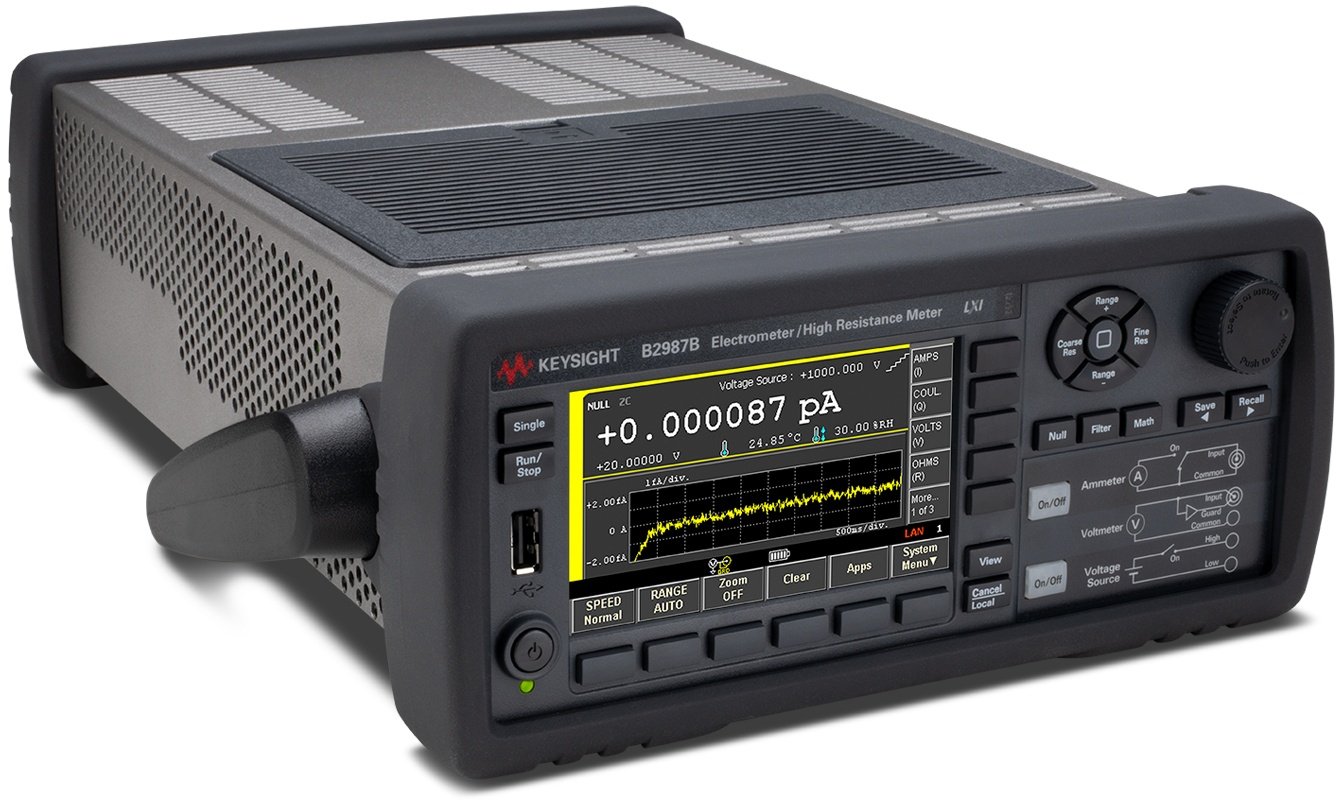

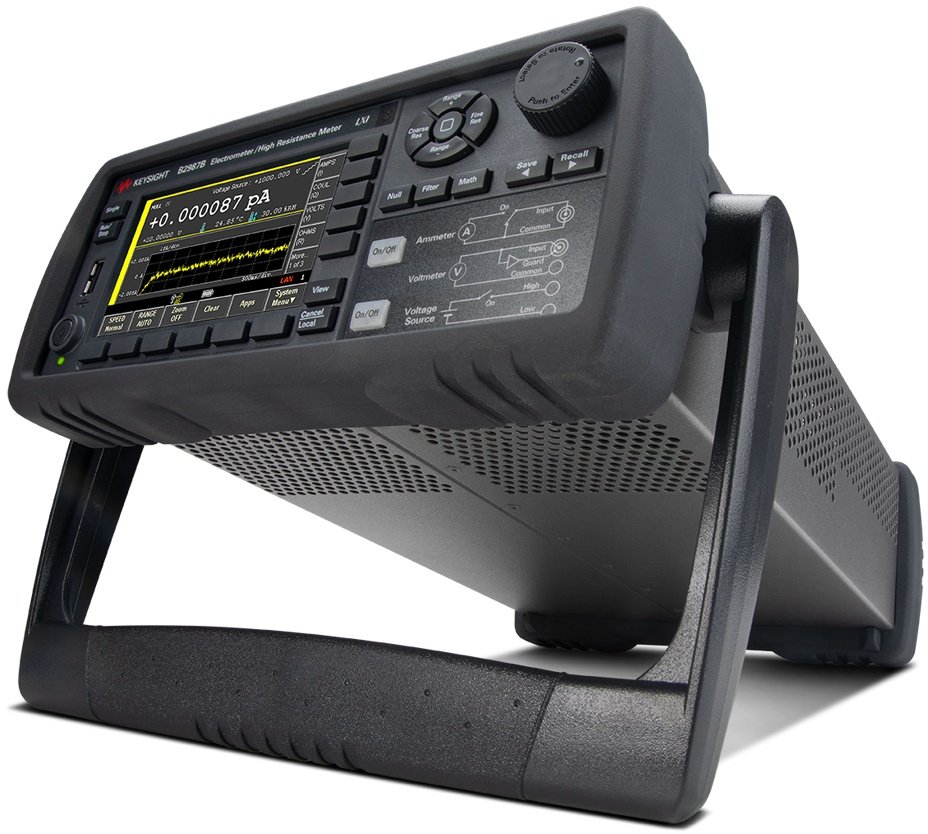

The B2987B Electrometer/High Resistance Meter is the world’s only graphical electrometer that allows you to confidently measure small currents with 0.01 fA (0.01 x 10-15 A) resolution and large resistances of up to 10 PΩ (10 x 1015 Ω). In addition, battery operation eliminates AC line noise from your critical measurements. It possesses a 4.3” color LCD with a graphical user interface that provides trend charts and histogram data in addition to numeric information. These front-panel capabilities enable you to capture transient behavior and to perform quick statistical analyses without a PC. The available Setup Integrity Checker software option allows you to compare the noise levels of different cabling and fixturing arrangements to help isolate external noise sources.
Several versions available
The chart below provides an overview of the B2980B series and the main features of each.
| Model | Femto/Picoammeter – B2981B | Femto/Picoammeter – B2983B | Electrometer/High Resistance Meter – B2985B | Electrometer/High Resistance Meter – B2987B |
| Measurement resolution | 6½ digits | 6½ digits | 6½ digits | 6½ digits |
| Current measurement | 0.01 fA – 20 mA | 0.01 fA – 20 mA | 0.01 fA – 20 mA | 0.01 fA – 20 mA |
| Minimum range | 2 pA | 2 pA | 2 pA | 2 pA |
| Resistance measurement | Up to 10 PΩ | Up to 10 PΩ | ||
| Voltage measurement | 1 μV – 20 V | 1 μV – 20 V | ||
| Input resistance | > 200 TΩ | > 200 TΩ | ||
| Charge measurement | 1 fC – 2 μC | 1 fC – 2 μC | ||
| Temperature measurement | √ | √ | ||
| Humidity measurement | √ | √ | ||
| Voltage source | Up to ±1,000 V | Up to ±1,000 V | ||
| Minimum resolution | 700 μV | 700 μV | ||
| Maximum reading rate | 20,000 rdg/s | 20,000 rdg/s | 20,000 rdg/s | 20,000 rdg/s |
| Battery operation | √ | √ | ||
| Other key features | Graphical capability (Meter View, Graph View, Histogram View, Roll View), Auto navigation, 100,000 points sample buffer, Interface (USB, LAN, GPIB, LXI Core), Free PC control software, etc. | Graphical capability (Meter View, Graph View, Histogram View, Roll View), Auto navigation, 100,000 points sample buffer, Interface (USB, LAN, GPIB, LXI Core), Free PC control software, etc. | Graphical capability (Meter View, Graph View, Histogram View, Roll View), Auto navigation, 100,000 points sample buffer, Interface (USB, LAN, GPIB, LXI Core), Free PC control software, etc. | Graphical capability (Meter View, Graph View, Histogram View, Roll View), Auto navigation, 100,000 points sample buffer, Interface (USB, LAN, GPIB, LXI Core), Free PC control software, etc. |
Multimeters Template | |
|---|---|
| Style | Bench |
Product General Attributes | |
| Product Weight | 12.57 LBS |
| Product Height | 4.1 IN |
| Product Length | 14.72 IN |
| Product Width | 10.27 IN |
| Shipping Weight | 23.81 LBS |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 12.57 lbs |
|---|---|
| Dimensions | 14.72 × 10.27 × 4.1 in |
