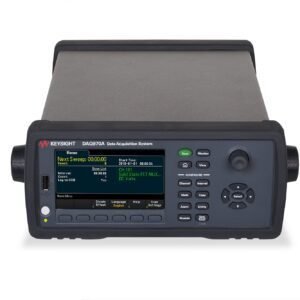

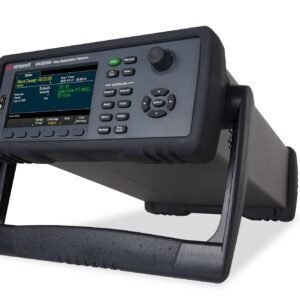

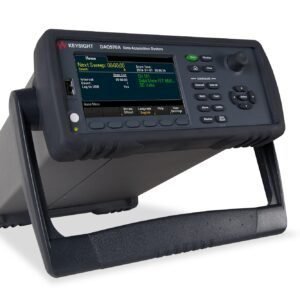

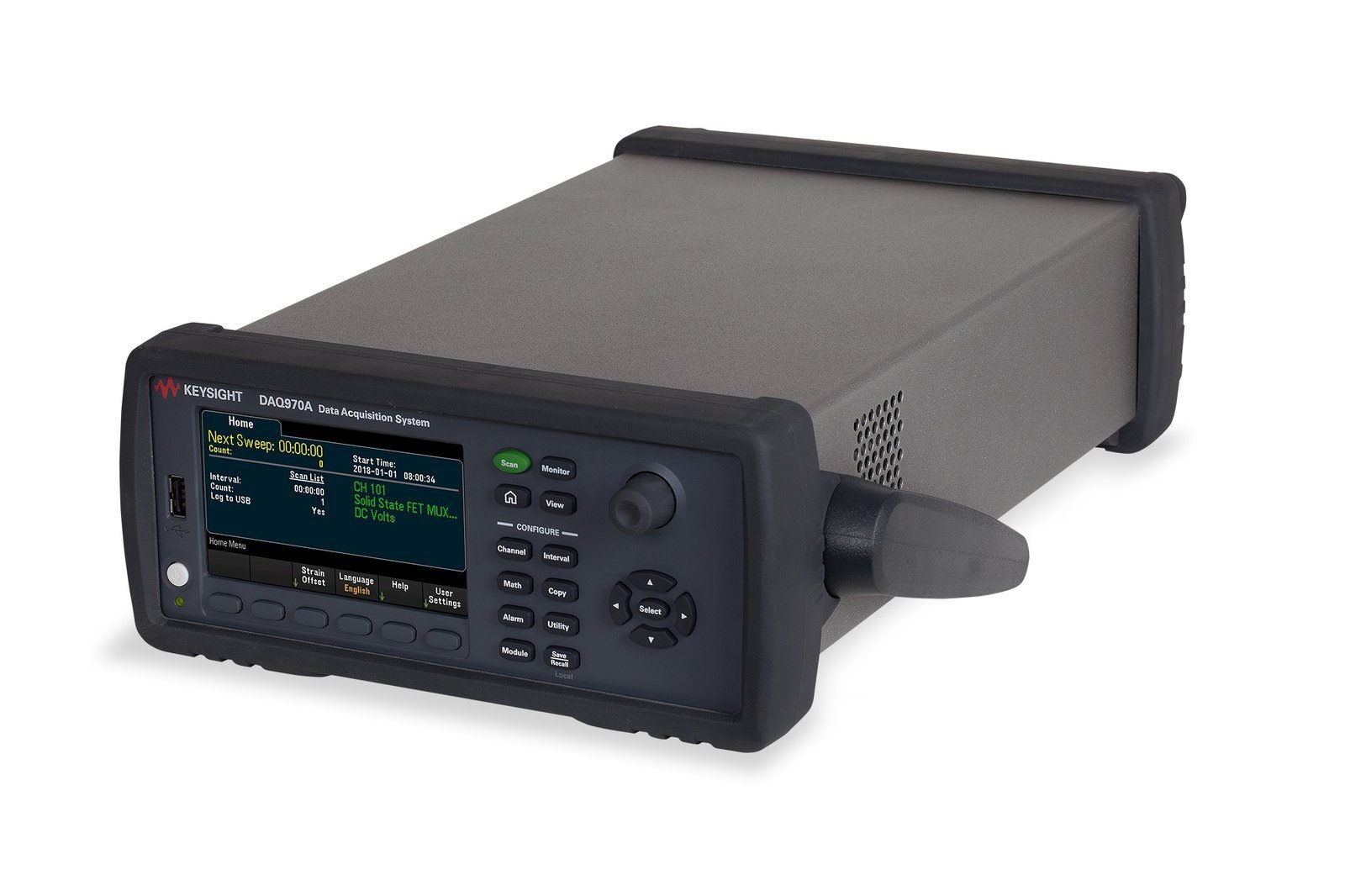

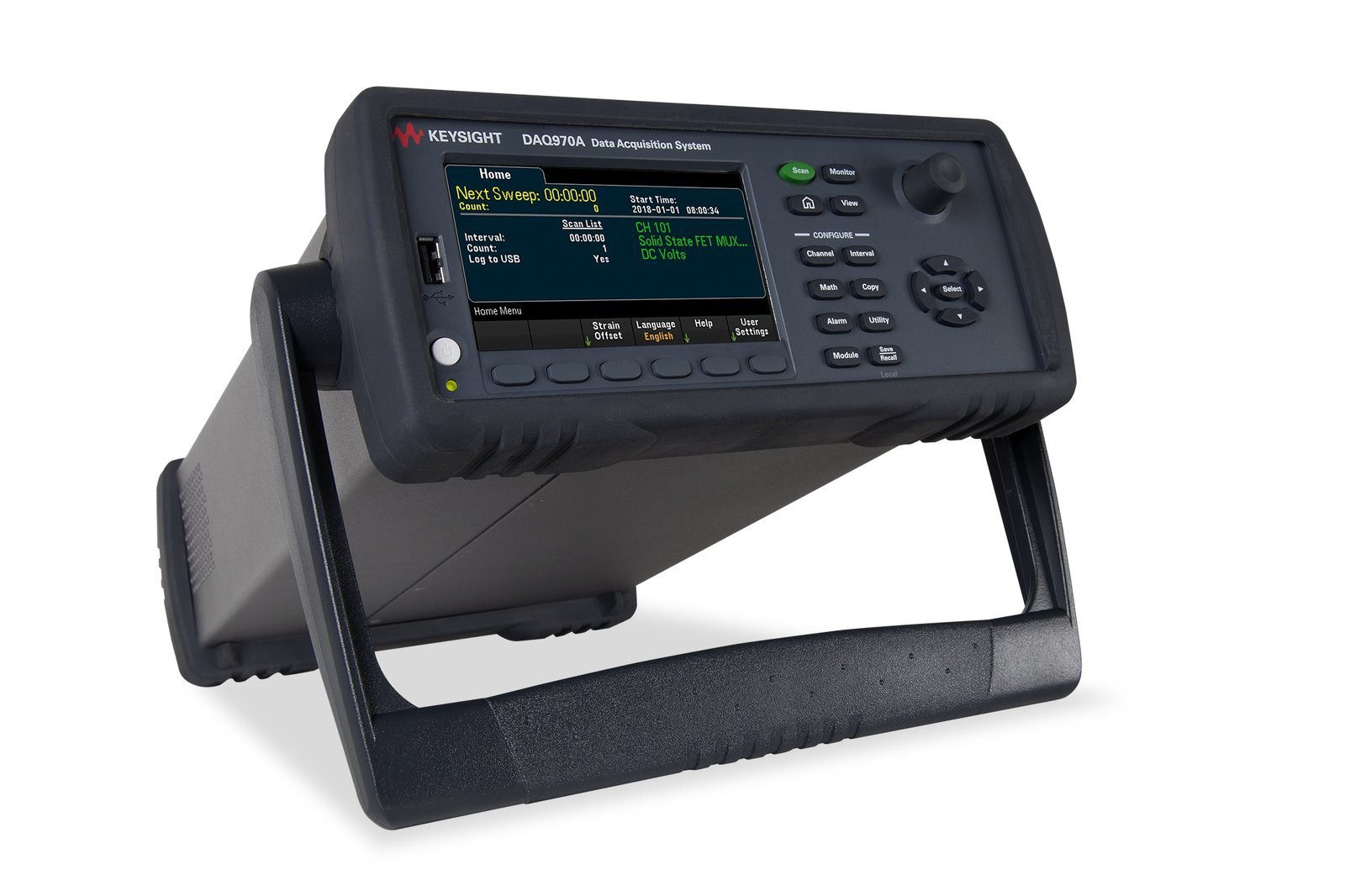

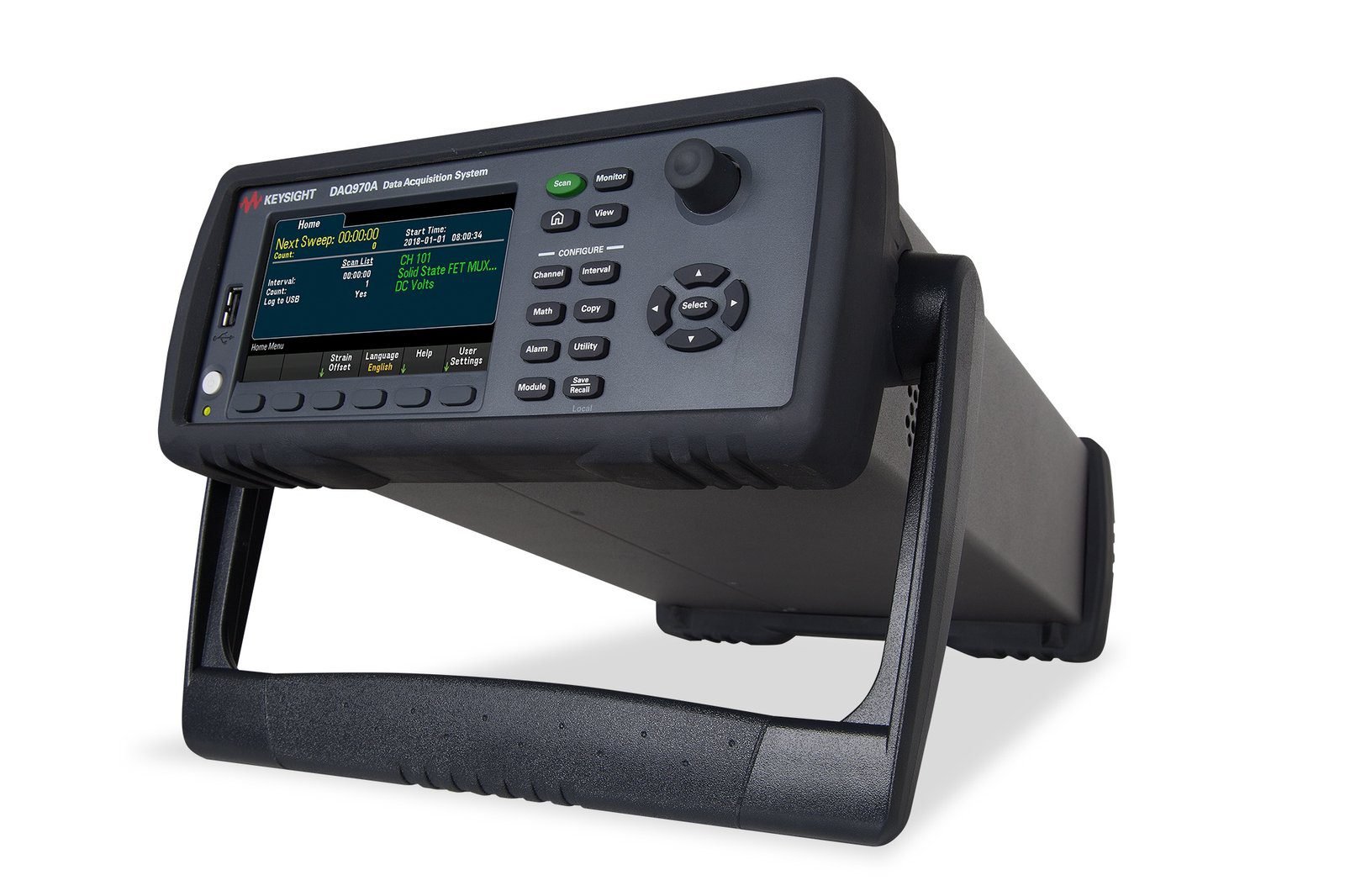

Keysight DAQ970A – Data Acquisition System Mainframe with USB/LAN

• Data acquisition mainframe with three module slots
• Includes USB and LAN interfaces
• Nine modules to choose from (sold separately – please see below for more information)
• Built-in 6.5 digit DMM
• Built-in signal conditioning measures thermocouples, RTDs and thermistors, AC/DC volts and current; resistance, frequency/period, diode test and capacitance

Keysight took the measurement engine from its high-performance benchtop DMM and embedded it inside a 3-slot mainframe. You get the benefit of proven Keysight measurement performance, universal inputs with built-in signal conditioning, and modular flexibility, all in a low-cost, compact data acquisition package. The DAQ970A/DAQ973A features 6.5 digits (22 bits) of the resolution, 0.003% basic dcV accuracy, and ultra-low reading noise. Combine that with scan rates of up to 450 channels/sec, and you’ve got the speed and accuracy you need to get the job done right the first time.

Built-in signal conditioning to get your job done faster

Whether you need to measure temperature, AC/DC volts, resistance, frequency, or current, the DAQ970A/DAQ973A can handle it. The internal auto-ranging DMM directly measures 12 different functions, eliminating the need for expensive external signal conditioning. And our unique design allows complete per channel configurability for maximum flexibility and quick, easy setup. It’s like having an independent, high-performance DMM behind each channel.

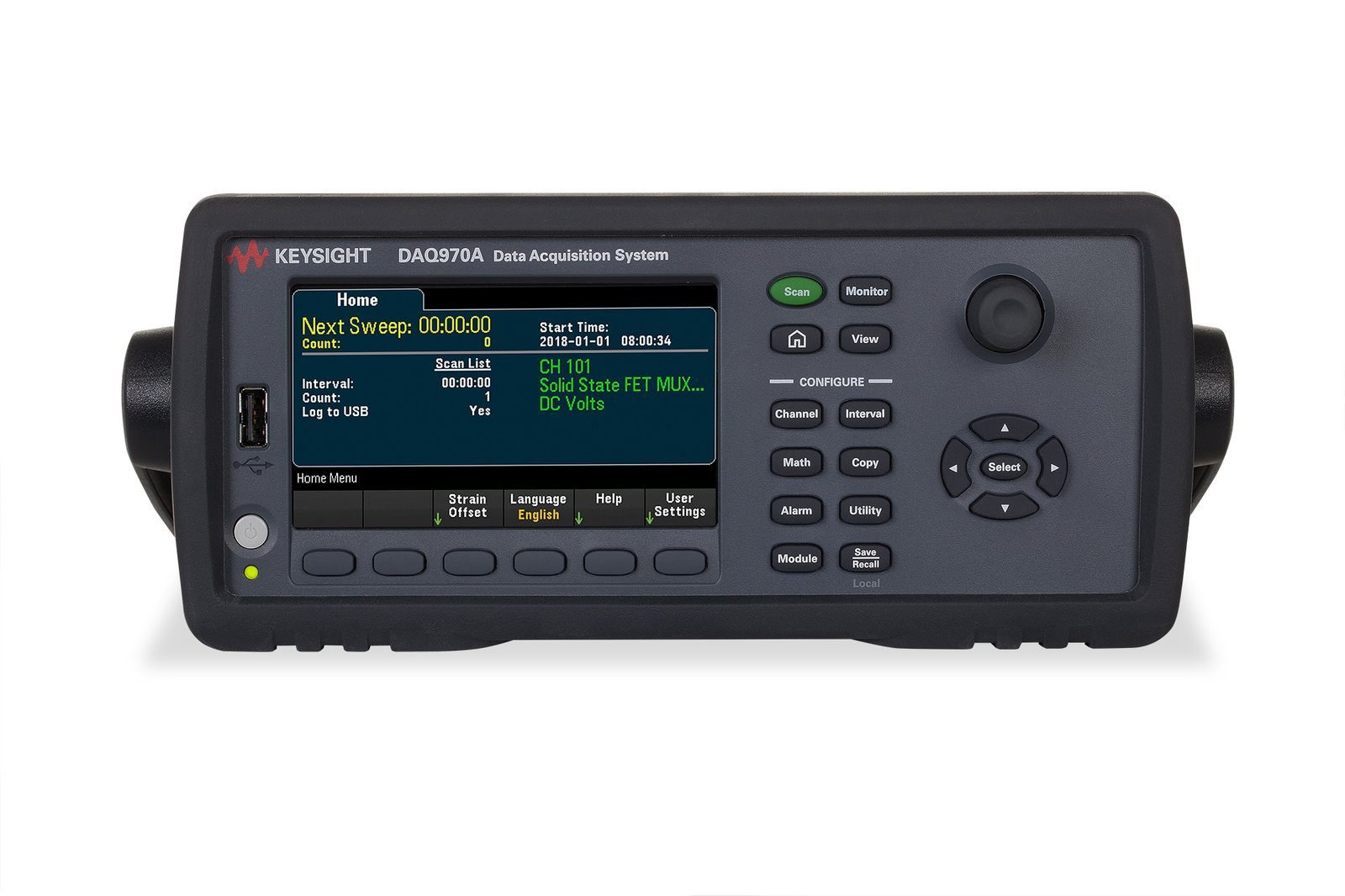

Large 4.3” color display for ease of setup, configure and viewing data

The DAQ970A/DAQ973A 4.3” graphical color display and soft keys are designed to be intuitive for easy configuration and measurement displays in multiple formats. You can view the measurements in numeric digits, bar graphs, trend charts and histograms, giving you a quick overview of your measurement.

Standard connectivity to the PC

The DAQ970A has a built-in Gigabit LAN and USB 2.0. With the standard LAN connection, you also get the added benefit of a graphical Web interface for easy configuration of measurements and monitoring of results using a standard Web browser. In addition to LAN and USB, the DAQ973A comes with a built-in GPIB interface.

Customize your Keysight DAQ970A/DAQ973A with plug-in modules

A complete selection of plug-in modules gives you high-quality measurement, switching, and control capabilities to choose from. Modules include both low-frequency and RF multiplexers, a matrix switch, a general-purpose switch, a multifunction module and a digitizer module that includes digital input/output, analog output, and totalizer capabilities. You can mix and match modules to get just the functionality you need right now-then change or add more channels later as your application grows. Modules for the DAQ970A/DAQ973A are designed to make your testing easier, faster, and more reliable.

Note: Modules are sold separately and can be viewed in the accessories section of this page.

• DAQM900A – 20-channel solid-state multiplexer
• DAQM901A – 20-channel armature multiplexer; + 2 current channels
• DAQM902A – 16-channel reed multiplexer
• DAQM903A – 20-channel actuator/GP switch
• DAQM904A – 4 x 8 matrix
• DAQM905A – Dual 4-channel 50 Ω RF mux
• DAQM907A – Multifunction module
• DAQM908A – 40-channel armature multiplexer
• DAQM909A – 4-channel 24-bit simultaneous sampling digitizer
