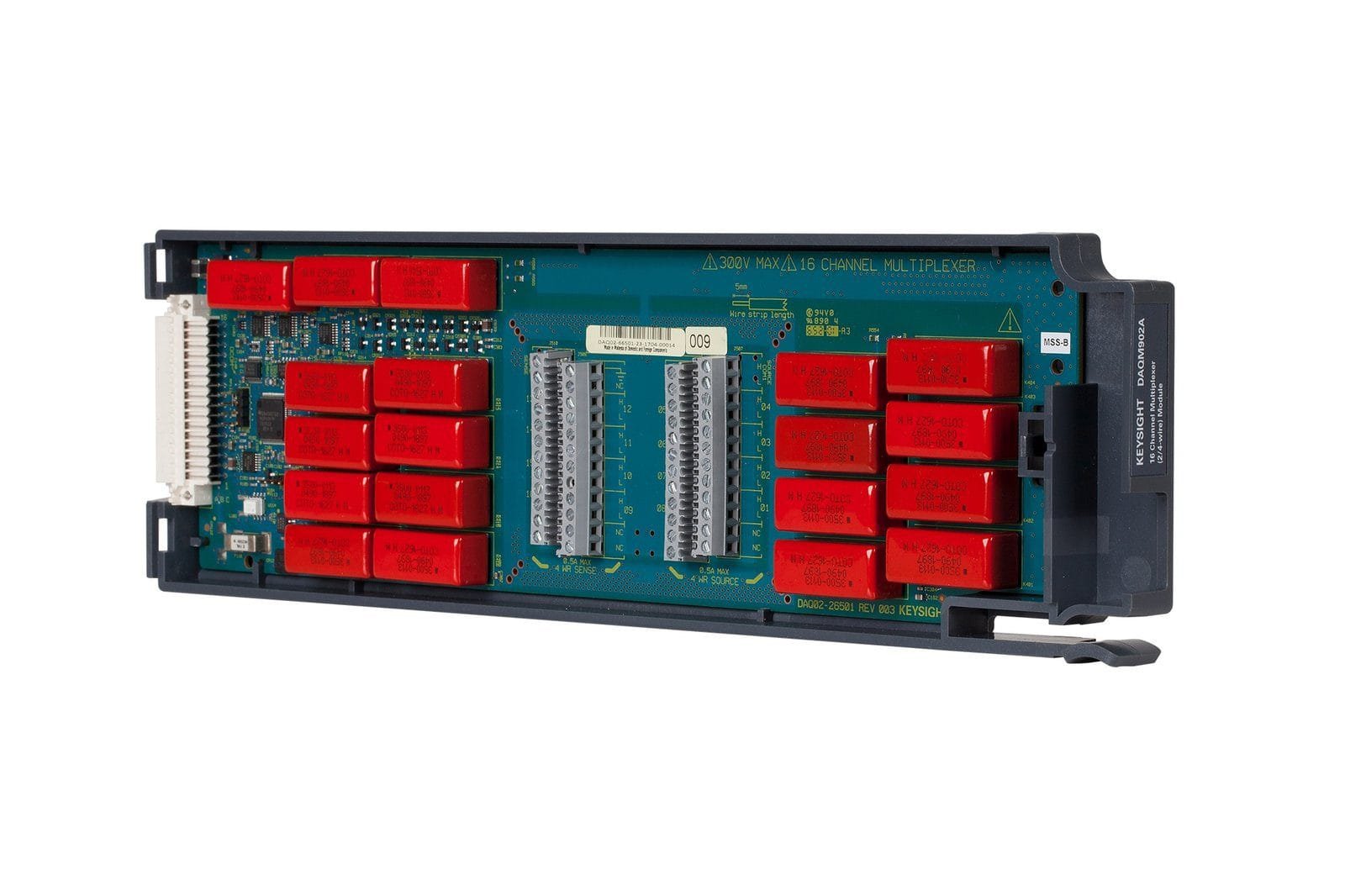

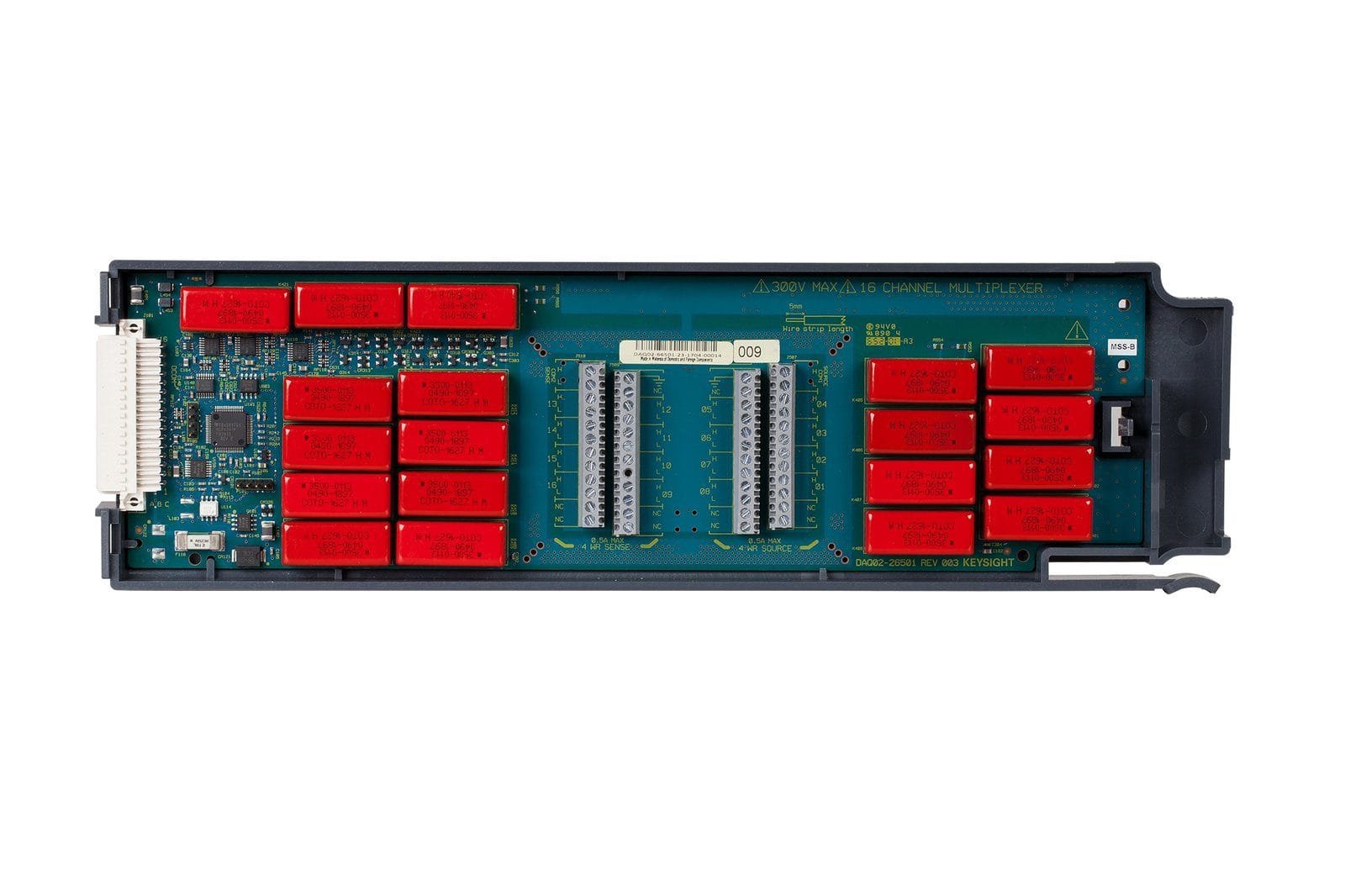

Keysight DAQM902A – 16-Channel Multiplexer (2 / 4-Wire) Module for DAQ970A and DAQ973A

The Keysight DAQM902A employs reed relays to achieve scan rates up to 250 channels per second. Use this module for high-throughput automated test applications as well as high-speed data logging and monitoring tasks.

Sixteen two-wire inputs switch up to 300 V. Two and four-wire channels may be mixed on the same module. User-provided shunt resistors are required for current measurements.

Note: This product is only a module. DAQ970A and DAQ973A mainframes are sold separately.

Several modules available

Keysight offers a variety of modules for use with the DAQ970A and DAQ973A. The list below contains part numbers and a brief description of each.

• DAQM900A – 20-channel solid-state multiplexer
• DAQM901A – 20-channel armature multiplexer; + 2 current channels
• DAQM902A – 16-channel reed multiplexer
• DAQM903A – 20-channel actuator/GP switch
• DAQM904A – 4 x 8 matrix
• DAQM905A – Dual 4-channel 50 Ω RF mux
• DAQM907A – Multifunction module
• DAQM908A – 40-channel armature multiplexer
• DAQM909A – 4-channel 24-bit simultaneous sampling digitizer
