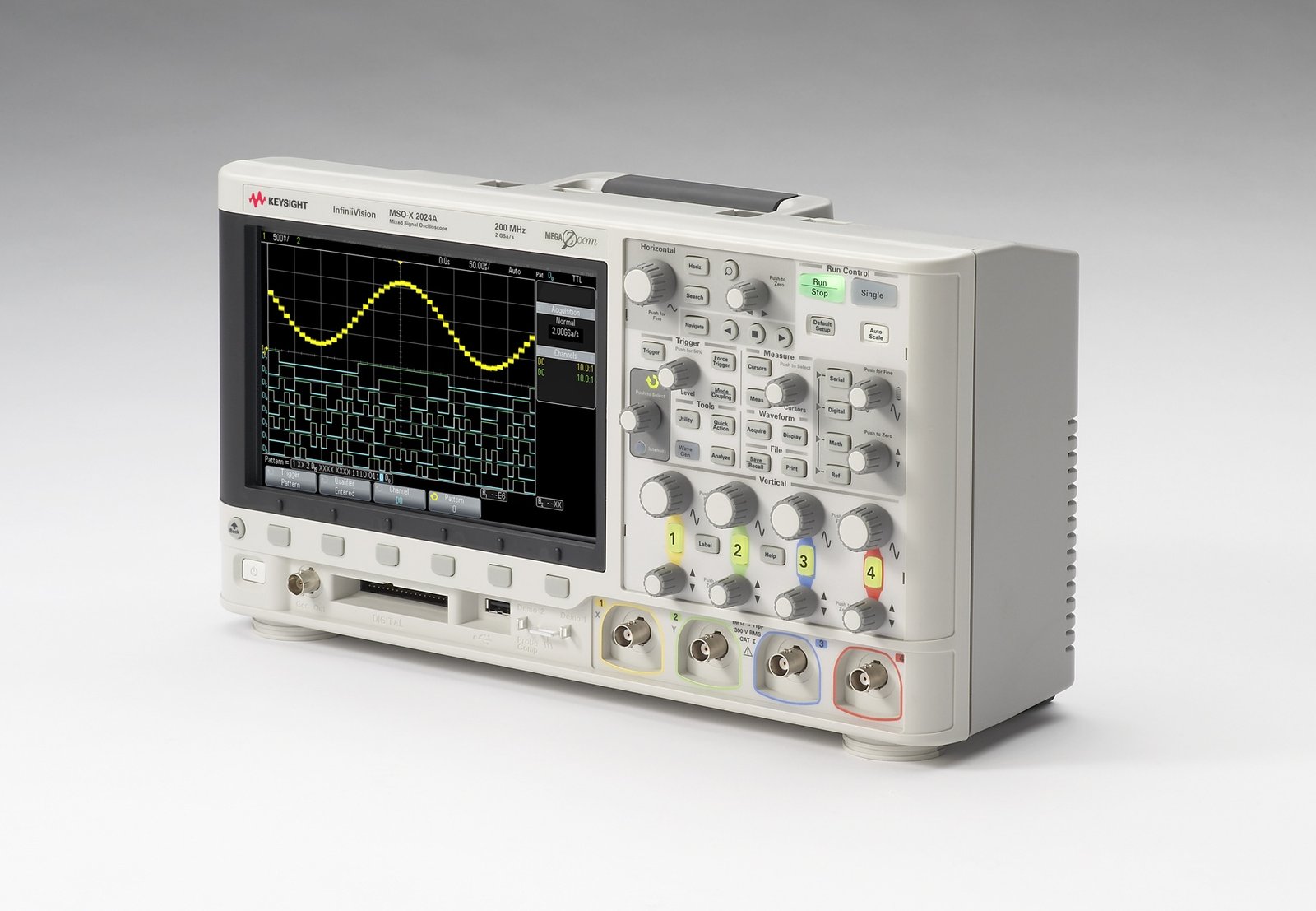

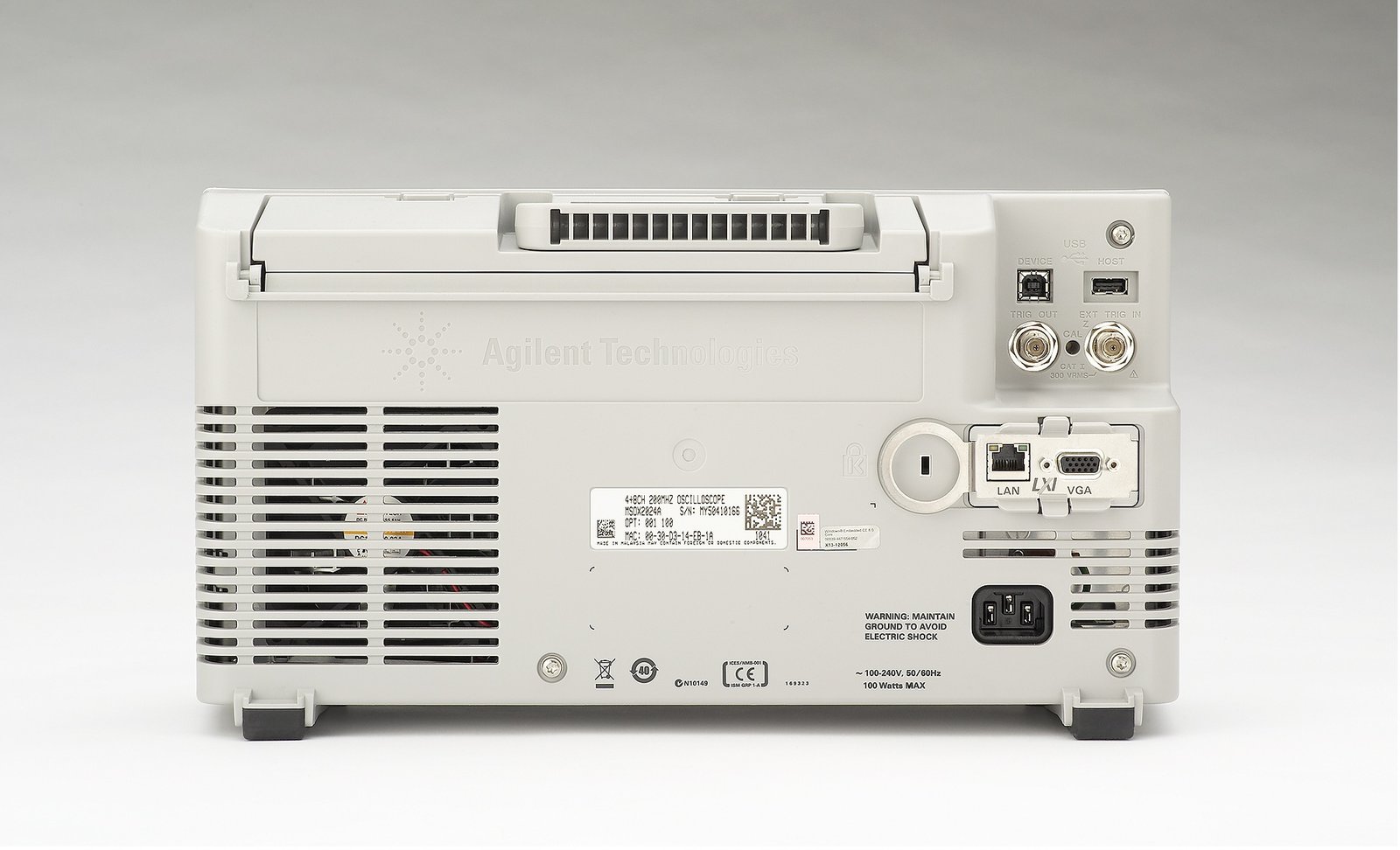

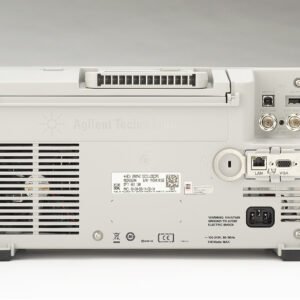

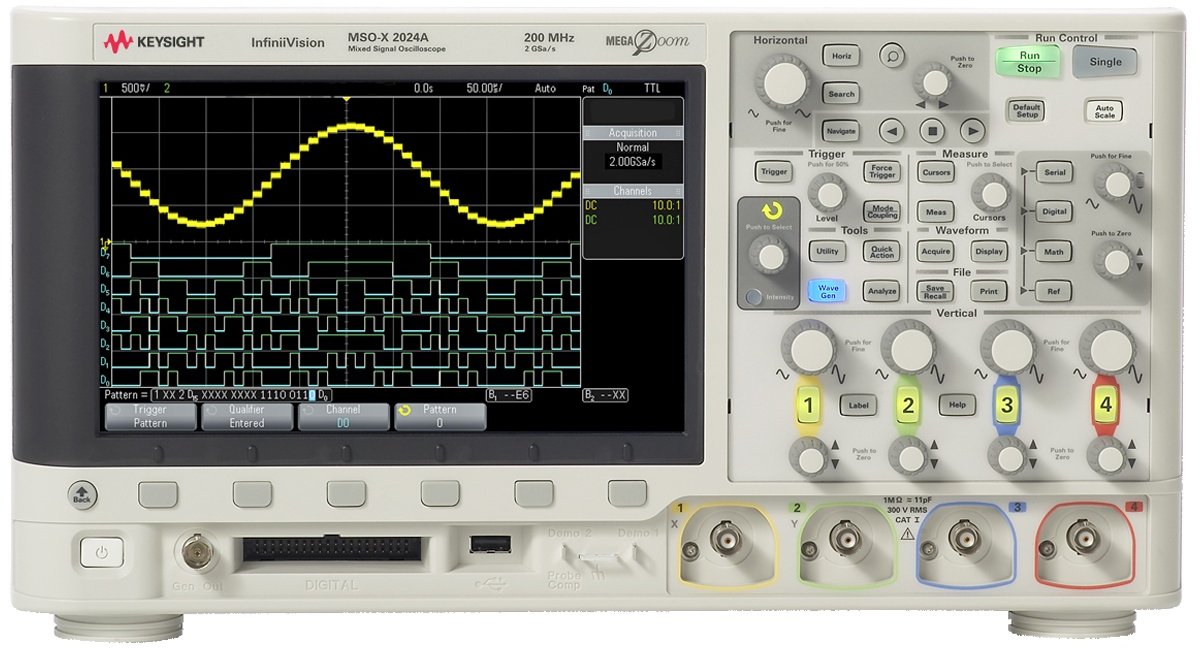

Keysight DSOX2014A – Digital Oscilloscope (100 MHz / 4 Channel)

• 100 MHz bandwidth / 4 analog channels

• Entry level price point with superior performance and advanced functionality
• This is not the mixed signal version – please see MSOX2014A
• Includes integrated 3 digit voltmeter and 5 digit frequency counter
• Several software options available including 20 MHz function generator and serial protocol analysis

The InfiniiVision 2000 X-Series offers entry-level price points to fit your budget with superior performance and optional capabilities that are not available in any other oscilloscope in its class. This Keysight Technologies, Inc. breakthrough technology delivers more scope for the same budget.

This series is available in several configurations: 2/4 channel, 70/100/200 MHz bandwidth, as well as an MSO version which includes the N2755 eight channel logic probe and accessory kit.

Please note, it is also possible to add MSO functionality at a later date with purchase of optional items.

Fast update rate

With Keysight-designed MegaZoom IV custom ASIC technology, the InfiniiVision 2000 X-Series family delivers up to 200,000 waveforms per second. With this speed you can see signal detail and infrequent anomalies more of the time.

Best in class oscilloscope

The InfiniiVision 2000 X-Series features Keysight’s patented MegaZoom IV smart memory technology that is always enabled and always responsive providing the industry’s fastest update rate at up to 200,000 waveforms per second, with no compromise if you turn on measurements or add digital channels. In addition, the 2000 XSeries offers 25 automated measurements such as voltage, time, and frequency as well as 18 waveform math functions including add, subtract, multiply, divide, and FFT.

Industry’s first economy-class mixed signal oscilloscope (MSO)

The 2000 X-Series is the first instrument in its class to offer an integrated logic timing analyzer. Digital content is everywhere in today’s designs and with an additional 8 integrated digital timing channels, you now have up to 12 channels of time-correlated triggering, acquisition and viewing on the same instrument. Please note, this product is sold both with and without MSO hardware.

Industry’s first WaveGen built-in 20 MHz function generator with a modulation capability

An industry first, the 2000 X-Series offers an integrated 20 MHz function generator, now available with the signal modulation capability. Ideal for educational or design labs where bench space and budget are at a premium, the integrated function generator provides stimulus output of sine, square, ramp, pulse, DC and noise waveforms to your device under test. No need to buy a separate function generator when you can get one integrated in your new oscilloscope.

Please note, WaveGen is activated via the optional DSOX2WAVEGEN option.

Hardware based serial protocol decode and triggering

• Embedded serial triggering and analysis (I2C, SPI, UART/RS232/422/485))
• Automotive and industrial serial triggering and analysis (CAN, LIN)

Keysight’s InfiniiVision Series oscilloscopes are the industry’s first scopes to use hardware-based serial protocol decoding. Other vendors’ oscilloscopes use software post-processing techniques that slow down both waveform and decode update rate. That’s especially true when using deep memory, which is often required to capture multiple packetized serial bus signals. Faster decoding with hardware-based technology enhances scope usability and, more importantly, the probability of capturing infrequent serial communication errors.

After capturing a serial bus communication, you can easily perform a search-and-navigation operation based on specific criteria of your interest. Note, the digital channels and serial protocol analysis cannot be used simultaneously.

Please see the accessories section of this page for several optional software packages.

Integrated digital voltmeter

An industry first, the 2000 X-Series offers an integrated 3-digit voltmeter (DVM) and 5-digit frequency counter inside the oscilloscopes. The voltmeter operates through the same probes as the oscilloscope channels, however, the measurements are de-coupled from the oscilloscope triggering system so that both the DVM and triggered oscilloscope measurements can be made with the same connection. The voltmeter results are always displayed, keeping these quick characterization measurements at your fingertips. The DVM is included standard on all InfiniiVision oscilloscopes.
