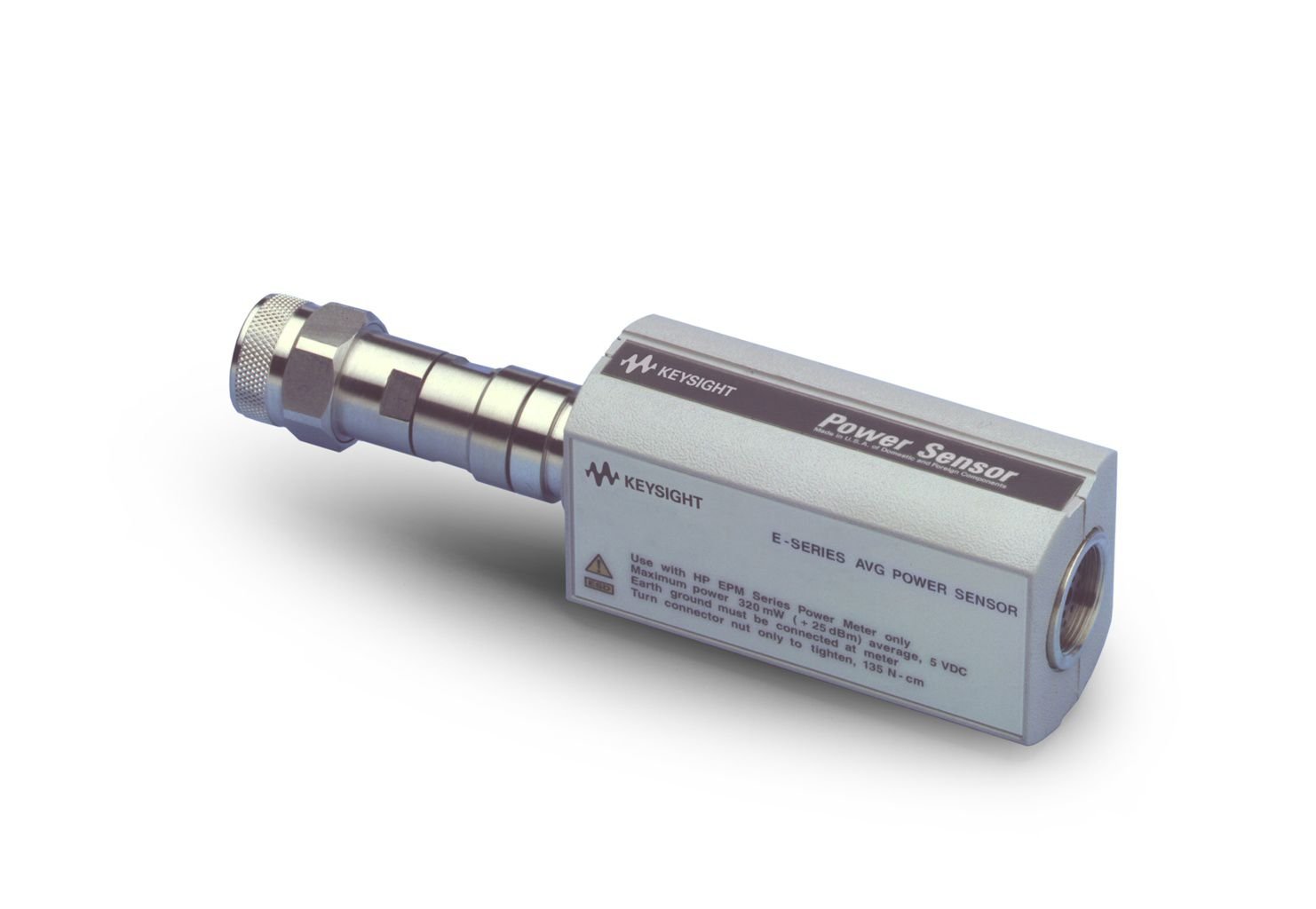

Keysight E9300A – E-Series Average Power Sensor (10 MHz to 18 GHz)
21 people are viewing this product right now
$4,202.00
Shipping calculated at checkout.
Estimated delivery:5 days
Power Sensor-Average, 10 MHz to 18 GHz, -60 to +20 dBm
- Frequency range: 10 MHz to 18 GHz
- Power range: –60 dBm (1 nW) to +20 dBm (100 mW)
- See option E9300A-H25 for -50 to +30 dBm (APC 3.5(m) connector)
- Measures the average power of all modulation formats
- Compatible with EPM (N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters
- High maximum power specification
- Low SWR for reducing mismatch uncertainty
- Calibration factors, linearity and temperature compensation data stored in EEPROM
- Fast measurement speeds (up to 400 readings per second with the E4416A)
Guarantee Safe and Secure Payment Checkout
Description
Keysight E9300A
- Frequency range: 10 MHz to 18 GHz
- Power range: –60 dBm (1 nW) to +20 dBm (100 mW)
- See option E9300A-H25 for -50 to +30 dBm (APC 3.5(m) connector)
- Measures the average power of all modulation formats
- Compatible with EPM (N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters
E-Series Average Power Sensor (10 MHz to 18 GHz)
The Keysight E-Series E9300 is a wide dynamic range, with average power sensors. These sensors are compatible with EPM (N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters.
The chart below provides an overview of the frequency and power ranges covered by each model.
| Frequency range | Power range | |
| E9300A | 10 MHz to 18 GHz | –60 dBm (1 nW) to +20 dBm (100 mW) |
| E9301A | 10 MHz to 6 GHz | –60 dBm (1 nW) to +20 dBm (100 mW) |
| E9304A | 9 kHz to 6 GHz | –60 dBm (1 nW) to +20 dBm (100 mW) |
| E9300B | 10 MHz to 18 GHz | –30 dBm (1 µW) to +44 dBm (25 W) |
| E9301B | 10 MHz to 6 GHz | –30 dBm (1 µW) to +44 dBm (25 W) |
| E9300H | 10 MHz to 18 GHz | –50 dBm (10 nW) to +30 dBm (1 W) |
| E9301H | 10 MHz to 6 GHz | –50 dBm (10 nW) to +30 dBm (1 W) |
The E-Series E9300 power sensors have two independent measurement paths (high and low power paths).
| “A” Suffix Sensors | “B” Suffix Sensors | “H” Suffix Sensors | |
| High Power Path | -10 to +20 dBm | +20 to +44 dBm | 0 to +30 dBm |
| Low Power Path | -60 to -10 dBm | -30 to +20 dBm | -50 to 0 dBm |
RF and Microwave Power Sensors Template | |
|---|---|
| LAN version | No |
| Minimum Frequency (RF Power Sensors) | 10 MHz |
| Maximum Frequency (RF Power Sensors) | 18 GHz |
| Sensor Technology | Diode |
