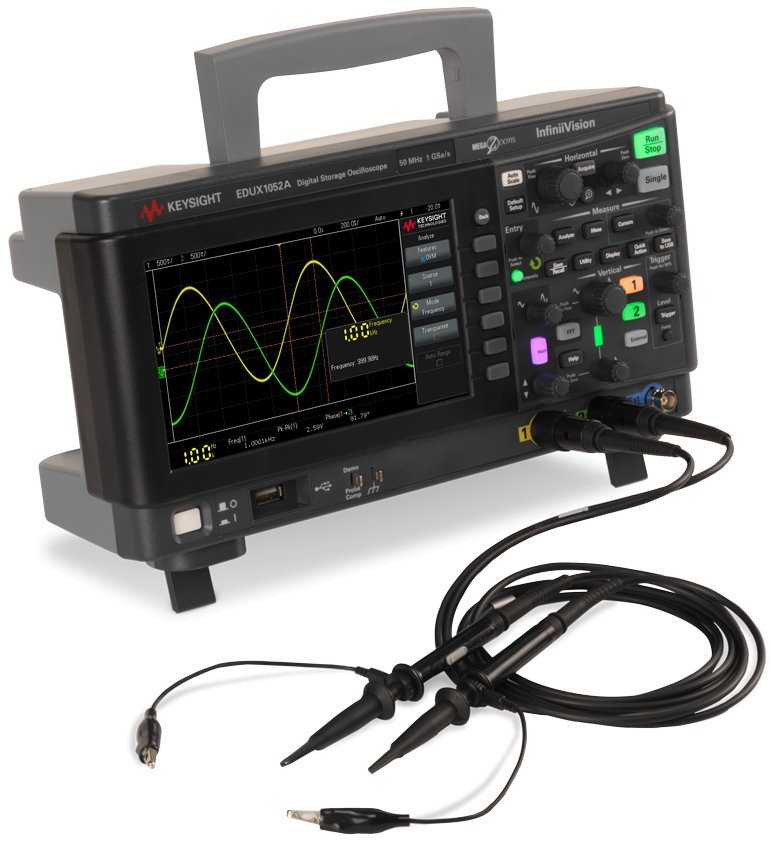

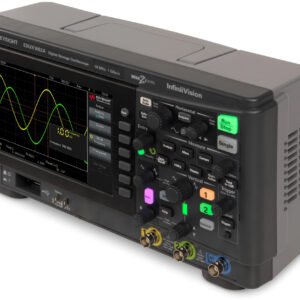

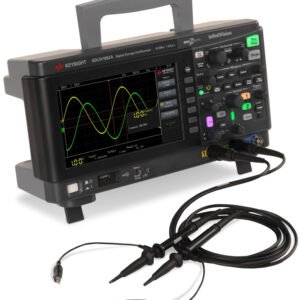

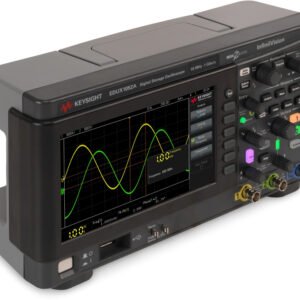

Keysight EDUX1052A – Digital Oscilloscope (50 MHz / 2 Channel)

• 2 channel / 50 MHz bandwidth
• This version does not have a function generator
• Entry-level oscilloscope with a professional level capability
• Standard serial protocol analysis: I2C, UART / RS-232
• Includes integrated 3 digit voltmeter and frequency counter

The InfiniiVision 1000 X-Series oscilloscopes are entry-level oscilloscopes with professional-level capabilities and connected software for remote control and data logging. It features 6-in-1 instrument integration and is part of the Keysight Smart Bench Essentials Series of four unique instruments that harness one powerful graphical interface. Have confidence in your results knowing the 1000 X-Series uses the same Keysight-custom technology used in other InfiniiVision Series oscilloscopes. Finally, an entry-level oscilloscope you can trust to give you professional measurements.

Keysight offers several versions of its InfiniiVision 1000 X oscilloscopes. The chart below provides an overview of the main differences of each.

The InfiniiVision 1000 X oscilloscope provides a 6-in-1 instrument integration, saving the user both money, as well as valuable bench space.

Please note: some features are only available on certain models, as noted below.

The 1000 X-Series is a family of low-cost oscilloscopes that does not compromise on quality. Each model has measurement and standard software analysis capability that rivals oscilloscopes 3x the price.

The 1000 X-Series offers an integrated 20 MHz function generator with modulation capability. It’s ideal for educational or design labs where bench space and budget are at a premium. The integrated function generator provides stimulus output of sine, square, ramp, pulse, DC, and noise waveforms to your device under test. Add modulation to the signal with customizable AM, FM, and FSK settings. No need to buy a separate function generator when you can get one integrated into your new oscilloscope.

Please note: only available on EDUX1052G, DSOX1202G, and DSOX1204G.

The 1000 X-Series is a powerful protocol analyzer that enables hardware-based specialized serial communication analysis (standard). Other vendors’ oscilloscopes use software post-processing techniques that slow down the waveform and decode update rate, but the 1000 X-Series has faster decoding based on hardware technology that enhances scope usability and the probability of capturing infrequent serial communication errors.

The DSOX models support I2C, SPI, UART/RS232, CAN, and LIN (standard). The EDUX models support I2C and UART/RS232 (standard).

Frequency response analysis (gain & phase Bode plots) is a critical measurement to characterize amplifiers, passive networks, and power supply feedback networks. Bode plots are also fundamental concepts that every electrical engineering student should learn. The 1000 X-Series’ frequency response analyzer capability (standard in “G” models) is the perfect tool to help students understand the gain and phase performance of passive RLC circuits and amplifiers. This capability is achieved with a gain and phase measurement versus frequency (Bode plot). Vector network analyzers (VNAs) and low-cost frequency response analyzers are typically used for these measurements, but now an easy-to-use and affordable gain and phase analysis is possible by utilizing the 1000 X-Series’ built-in WaveGen and Bode plot capability.

Also available is the DSOXBODE Bode plot training kit along with a downloadable tutorial and lab guide for engineering students learning about frequency response measurements (Bode plots).

Please note: only available on EDUX1052G, DSOX1202G, and DSOX1204G.

The 1000 X-Series has an integrated 3-digit voltmeter (DVM) inside each oscilloscope. The voltmeter operates through probes connected to the oscilloscope channels, but its measurement is decoupled from the oscilloscope triggering system so both the DVM and triggered oscilloscope measurements can be made with the same connection. You can quickly measure AC RMS, DC, and DC RMS without configuring the oscilloscope capture. The voltmeter results are always displayed, keeping these quick characterization measurements at your fingertips. The built-in DVM comes standard in 1000 X-Series oscilloscopes.

There is an integrated 5-digit frequency counter inside each oscilloscope. The frequency counter operates through probes connected to the oscilloscope channels so that both the counter and triggered oscilloscope measurements can be made with the same connection. You can quickly measure frequency without configuring the oscilloscope capture. The high-resolution frequency measurement results are always displayed, keeping these quick characterization measurements at your fingertips.

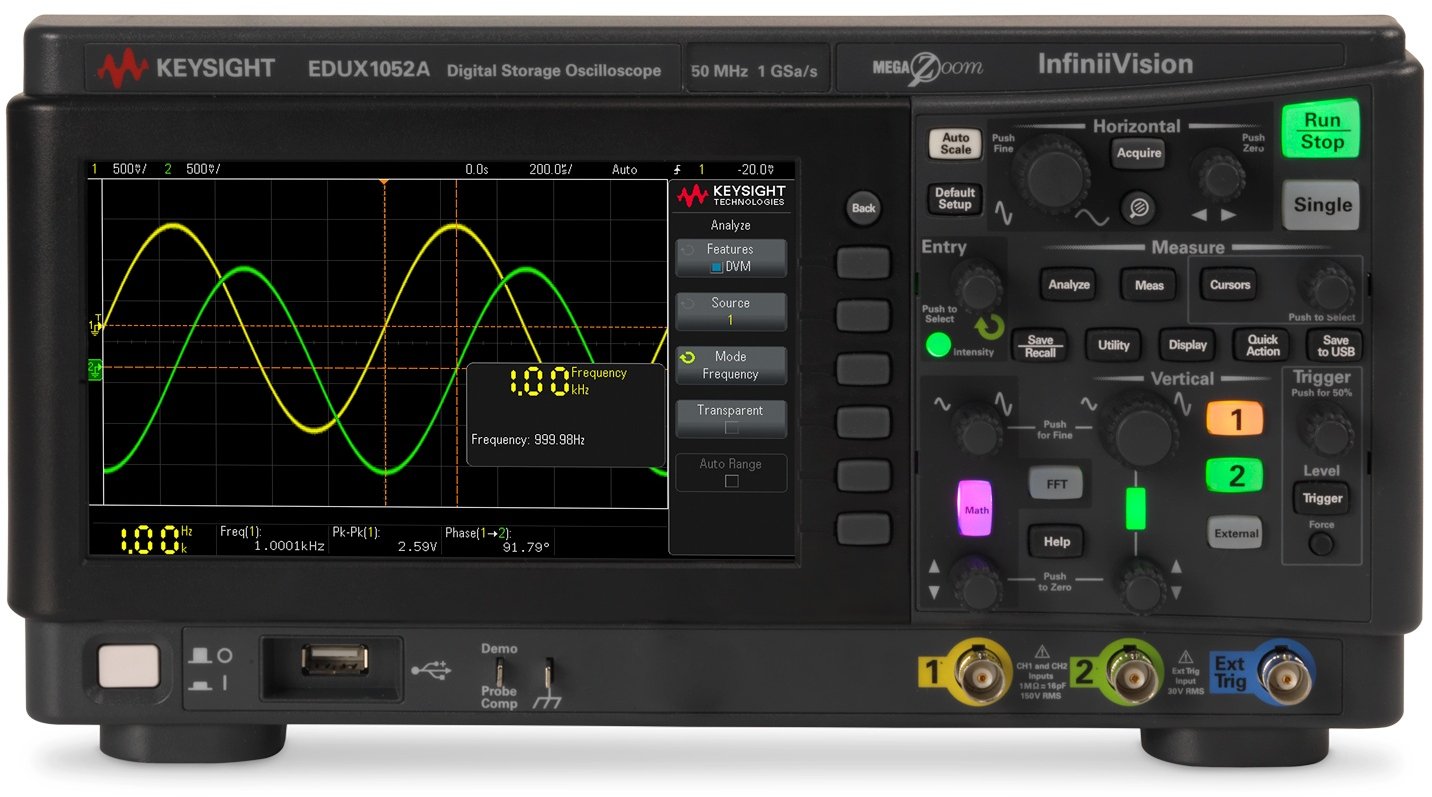

1. Fast Waveform Update Rate: Fast 200,000 waveforms/sec update rate helps you quickly see random and infrequent signal glitches and errors

2. Analyze Features Mask: Limit Testing DVM Frequency Response Analysis Serial Bus Decode Reference waveforms (2)

3. Measurements: Press the measure key to access 32 built-in automatic measurements

4. DVM/Counter: Integrated 3-digit voltmeter 5-digit frequency counter

5. USB: Screenshots and data can be quickly and easily saved with a built-in USB port and your USB storage device

6. Training Signals: Built-in education training kit signals with a downloadable training guide

7. Function Generator: Built-in generator enables you to generate the signals you need to quickly simulate your design and perform gain & phase Bode plots

8. Built-in Localized-help: All buttons provide instant access to language-localized help by simply holding down the button you want to be explained

9. Industry-leading User Interface: Fast and easy operation with the common oscilloscope controls right at your fingertips

10. Waveform Math Tools: Quick access to waveform math (+ – × ÷), FFT (gain and phase), and low-pass filter

11. Cursors: Custom measurements are easily accomplished by cursors. Measure any value or the difference using four powerful cursors
