Keysight N9321C – Basic Spectrum Analyzer (9 kHz to 4 GHz)
19 people are viewing this product right now
$14,487.00
Shipping calculated at checkout.
Estimated delivery:5 days
Basic Spectrum Analyzer, 9 kHz to 4 GHz

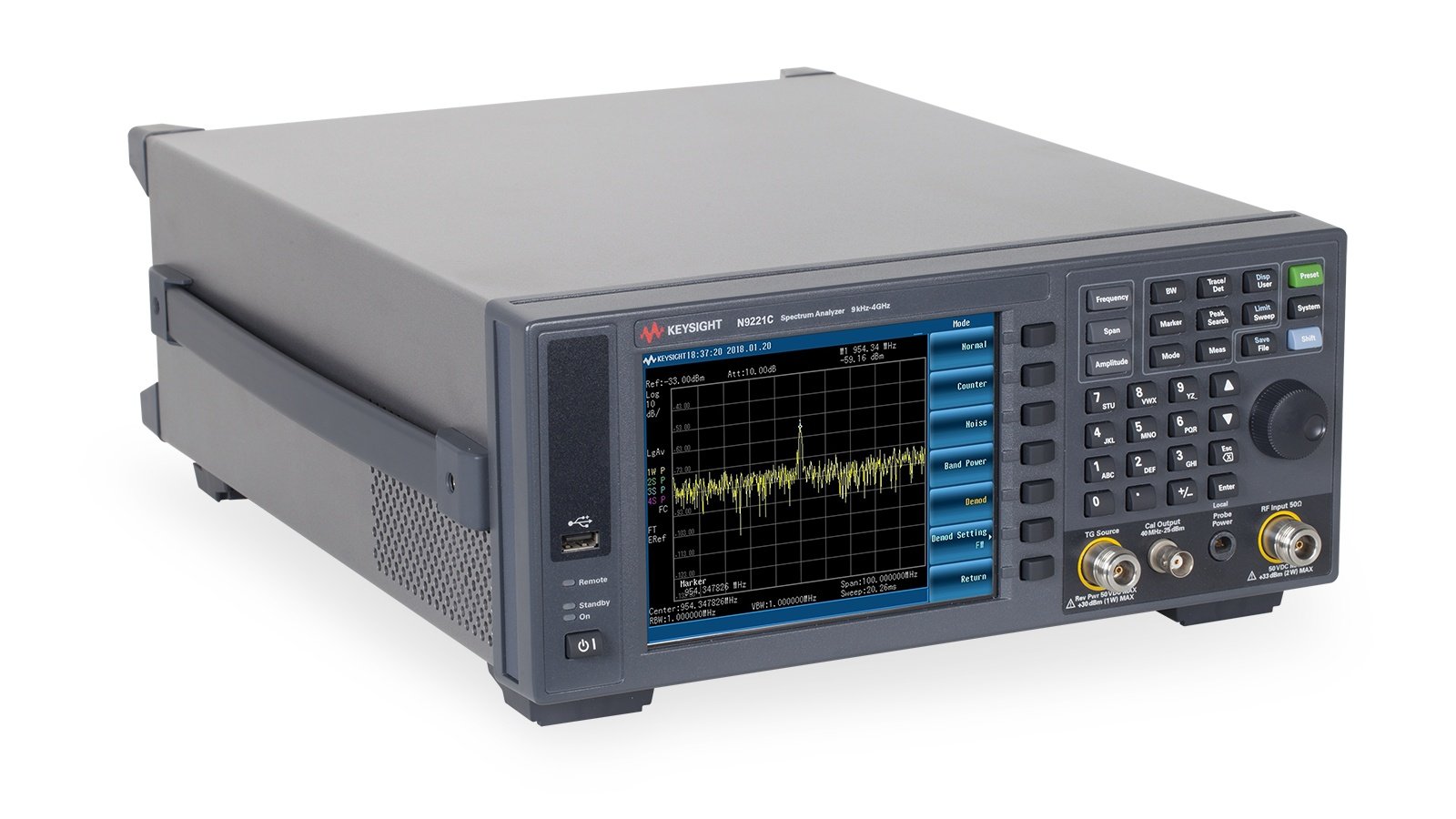

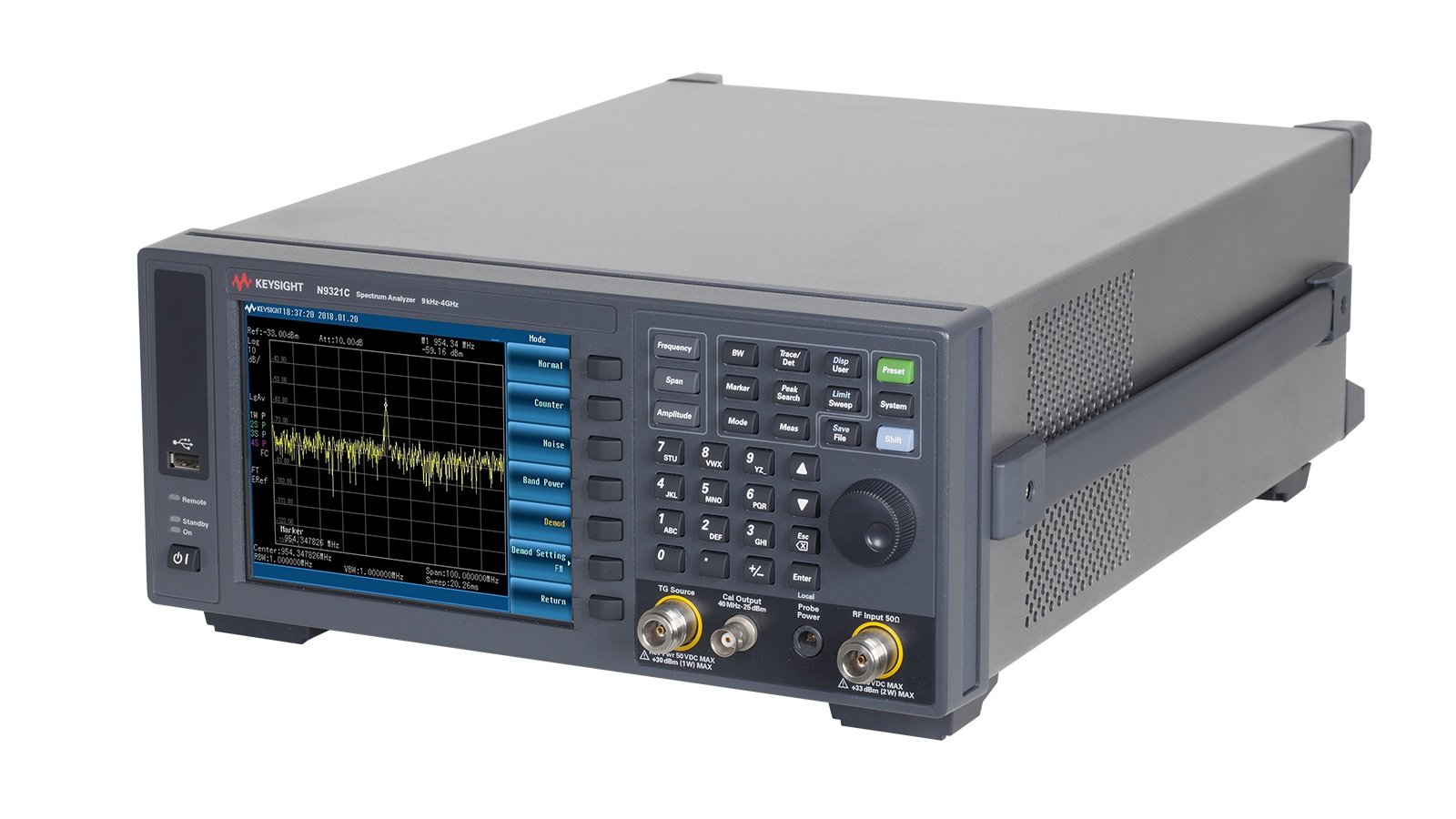

- Image is for illustrative purposes and shows optional features
- 9 kHz to 4 GHz frequency range
- -162 dBm/Hz displayed average noise level, 1 GHz (typical)
- +11 dBm third-order intercept (TOI)
- Offers proven test efficiency, best-in-class usability, and flexibility to adapt to new requirements
- Identifies interfering signals from unwanted or unexpected transmissions with a powerful spectrum monitoring feature
- User-definable softkeys provide quick access to 18 frequently used measurement setups
- Task planner makes testing fast and easy by automating testing using pre-defined test routines
- Provides straightforward and efficient operation with marker demodulation, one-button optimization, and user-definable soft keys
Guarantee Safe and Secure Payment Checkout
Description
Keysight N9321C
- 9 kHz to 4 GHz frequency range
- -162 dBm/Hz displayed average noise level, 1 GHz (typical)
- +11 dBm third-order intercept (TOI)
- Offers proven test efficiency, best-in-class usability, and flexibility to adapt to new requirements
- Identifies interfering signals from unwanted or unexpected transmissions with a powerful spectrum monitoring feature
Basic Spectrum Analyzer (9 kHz to 4 GHz)
Keysight designed its BSA series spectrum analyzers for general-purpose spectrum analysis and low-cost manufacturing applications, helping you to achieve higher productivity on a smaller budget – whether you are tuning an RF circuit of an IoT module, hunting for noise for a system, fighting for higher throughput, or teaching students in a classroom.
These easy-to-afford BSA spectrum analyzers put together a just-enough performance, and superior reliability, assisting you in addressing common RF-microwave test and measurement challenges easier and faster.
The following is an overview of models in the series and the main features of each:
| N9321C | N9322C | N9323C | N9324C | |
| Frequency range | 9 kHz – 4 GHz | 9 kHz – 7 GHz | 1 MHz – 13.6 GHz | 1 MHz – 20 GHz |
| Reference aging rate | ± 1 ppm, ± 0.1 ppm (w/Opt. PFR) | ± 1 ppm, ± 0.1 ppm (w/Opt. PFR) | ± 1 ppm, ± 0.1 ppm (w/Opt. PFR) | ± 1 ppm, ± 0.1 ppm (w/Opt. PFR) |
| Absolute amplitude accuracy | ± 0.3 dB | ± 0.3 dB | ± 0.3 dB | ± 0.3 dB |
| Displayed average noise level, 1 GHz (typical) | -162 dBm/Hz | -162 dBm/Hz | -154 dBm/Hz | -154 dBm/Hz |
| Resolution bandwidth | 10 Hz – 3 MHz | 10 Hz – 3 MHz | 10 Hz – 3 MHz | 10 Hz – 3 MHz |
| Third-Order Intercept (TOI) | +11 dBm | +11 dBm | +9 dBm | +9 dBm |
| Input attenuator | 0 to 50 dB, in 1 dB steps | 0 to 50 dB, in 1 dB steps | 0 to 50 dB, in 5 dB steps | 0 to 50 dB, in 5 dB steps |
| Phase noise, 100 kHz offset | -98 dBc/Hz | -98 dBc/Hz | -97 dBc/Hz | -97 dBc/Hz |
Efficiency and Flexibility at their Best
In the quest of getting more done for less, we also equip the BSA series spectrum analyzers with an array of optional capabilities, that either enhance the performance of the analyzers or add more test capabilities for the analyzers, such as EMI emission test, stimulus/response test, and IoT signal demodulation analysis.
Please click here to view a full list of options and part numbers for this product series including tracking generators, pre-amplifiers and more.
Note: Baseband input and reflection measurement options are not available for the N9323C and N9324C.

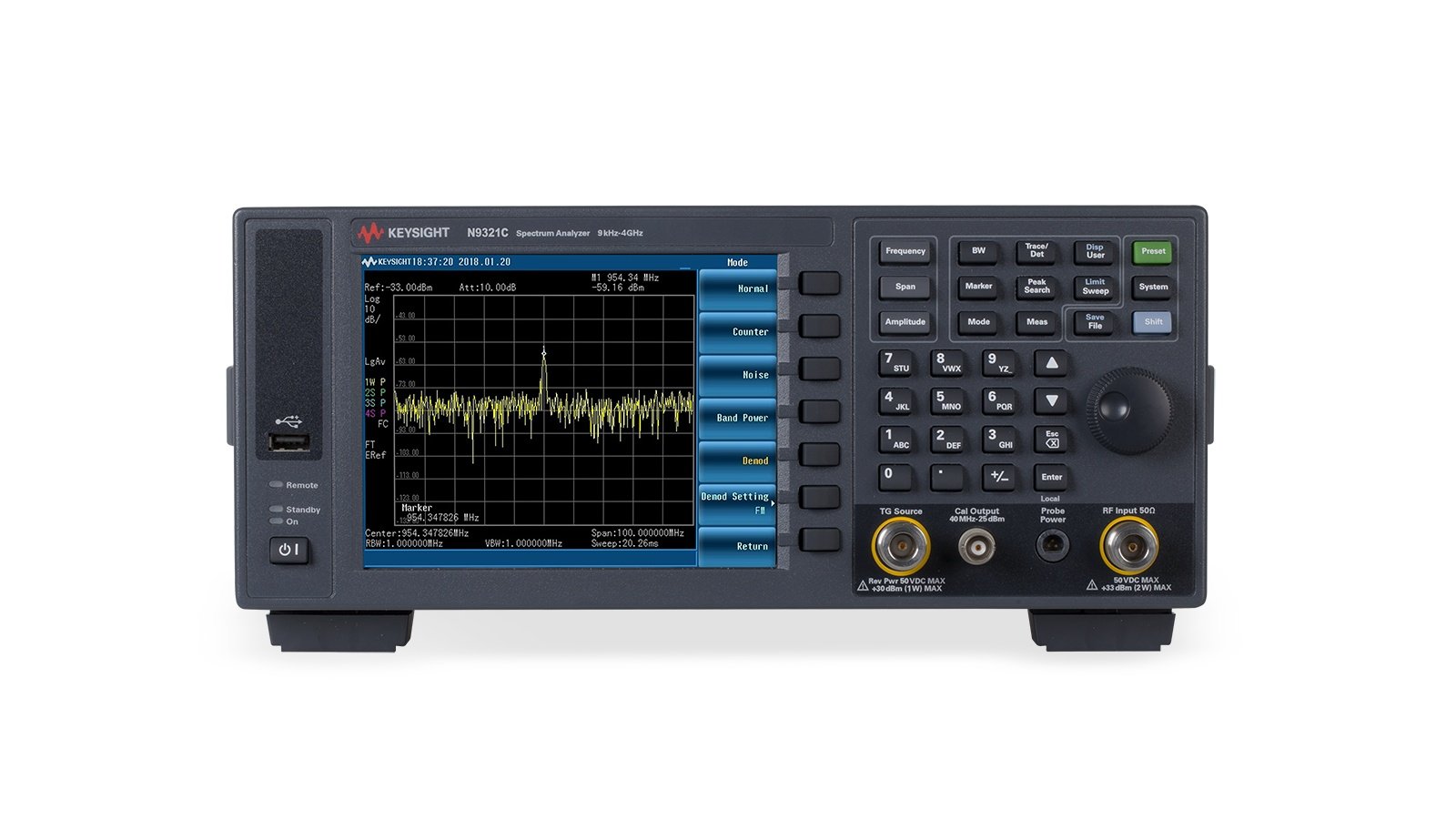

1. 6.5’’ TFT color display with multiple language UI 2. Multiple measurement modes: Spectrum analyzer (default), tracking generator, reflection measurement, modulation analysis, and power meter mode 3. One button power suite: channel power, OBW, ACPR, SEM, channel scanner and spectrogram 4. User key for quick access to 18 frequently-used measurement configurations | 5. Tracking generator (option) 6. 40 MHz calibration output 7. Probe power 8. RF input, 50 Ω |
Spectrum Analyzers/Spectrum Analyzers Template | |
|---|---|
| Bandwidth Range Max | 4 GHz |
| Bandwidth Range Min | 9 kHz |
| Noise Floor | -162 dB |
| Tracking Generator | Yes |
| Type(Spectrum Analyzers) | Benchtop |
| Channel Power Measurement | Yes |
| Auto tuning | Yes |
| Marker Measurement | Yes |
| Preamplifier | Yes |
| AM/FM Demodulation | Yes |
| Power Meter | Yes |
Product General Attributes | |
| Warranty | 5 YEARS |
| Safety Approval | UL |
| Interfaces I/O | GPIB, LAN / Ethernet, Other, RF, USB Host, USB |
| Product Weight | 17.4 LBS |
| Product Height | 5.2 IN |
| Product Length | 15.7 IN |
| Product Width | 12.6 IN |
| Shipping Weight | 30.9 LBS |
You must be logged in to post a review.
Manuals/Guides
| Weight | 17.4 lbs |
|---|---|
| Dimensions | 15.7 × 12.6 × 5.2 in |
