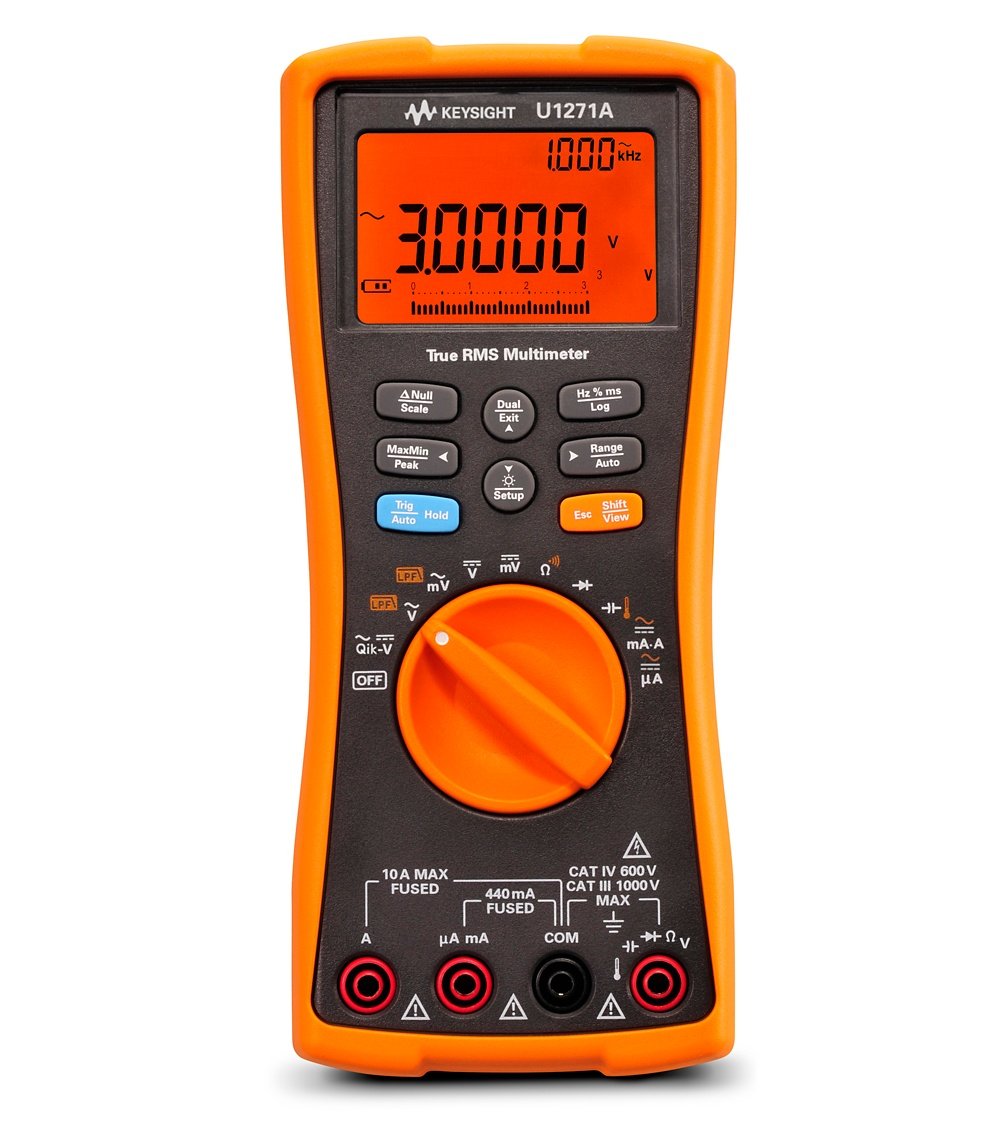

Keysight U1271A – True RMS 30K Count Handheld Industrial DMM, Rugged IP54

• 30K Count Industrial DMM; IP54; Low Pass Filter; Operating temp to -20°C; Altitude to 3K meters
• Resistance, frequency, capacitance, continuity, diode, temperature
• Min/Max recording, peak hold, null, scale, PC-connectivity, manual datalogging
• Overvoltage protection rating: CAT III 1000V and CAT IV 600V
• Store 10K readings, IR-to-USB or Optional Bluetooth to transfer data, Keysight Remote Link enabled

The Keysight U1270 Series Handheld Industrial Digital Multimeters are designed for working in extreme locations and sub-zero temperatures. The tightly sealed design of the Keysight U1270 Series helps protect against water, dust, and damage. Confidently carry out tests and measurements with this true RMS meter, even in harsh working conditions. All models are ergonomically built providing useful functions such as Z-LOW, which eliminates stray voltages, and Smart Ohm which minimizes false readings from residual voltage induced by leakage current. All of this is designed into a case that fulfills the needs of today’s industrial handheld users.

The U1273AX, the latest addition to the U1270 Series is capable of operating down to -40°C in temperature. Even in extremely cold conditions, the U1273AX handheld DMM delivers immediate and accurate results – no warm-up time required.

The Keysight U1270 series tightly sealed design helps protect against water, dust, and damage. Each handheld DMM has certified with IP54 ratings so that you can carry out tests and measurements with confidence, even in harsh working conditions. The U1273AX OLED handheld digital multimeter, the latest addition to U1270 Series, is capable of operating in winter weather down to -40 °C temperature (other models to -20°C). Even in frigid conditions, the U1273AX enables you to achieve immediate and accurate results without the need to warm up in advance. For high-altitude applications such as wind farm maintenance, you can measure with confidence using the U1270 Series, capable of measuring up to 3000 meters above sea level.

For wireless connectivity to smartphones and tablets, the U1270 Series is compatible with the U1177A infrared-to-Bluetooth adapter for maximum efficiency and productivity in completing measurement tasks. Adding the optional U1177A to a U1270 Series you can easily perform remote monitoring and data logging via Android devices or Windows-based PC.

The U1270 Series offers a 1 kHz LPF or Low Pass Filter to provide accurate Variable Frequency Drive (VFD) output measurements. This function eliminates high-frequency noise and harmonics, ensuring motor filter efficiency.

Stray voltages are usually found in non-energized electrical wiring adjacent to powered wires due to capacitive or inductive coupling between these wires. The low impedance mode serves to eliminate false readings by dissipating these stray voltages thus improves safety and measurement efficiency during voltage measurement.

The peak detect function allows you to capture the engine or motor startup transient as fast as 250 µs.

Designed with an OLED display, you can experience crystal-clear measurement readings with its outstanding 2000:1 contrast ratio. The display also allows wider viewing angles up to 160 degrees ensuring you get the right readings at the first glance even in poorly lit environments.
