Description
Klein Tools CL120VP – Clamp Meter Electrical Test Kit
- CL120 Clamp Meter measure AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads
- Meter has backlit LCD for ease of viewing in low light and is CAT III 600V, Class 2 Double Insulated
- RT210 detects the most common wiring problems in standard and GFCI receptacles
- A convenient chart on RT210 helps determine wiring conditions: open ground, reverse polarity, open hot, open neutral, and hot/ground reversed
- NCVT-3P has dual-range capabilities to detect from 12 to 1000V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
Designed for optimum safety and durability to test and measure currents and voltage
Includes:
- AC Auto-Ranging 400 Amp Clamp Meter
- GFCI Receptacle Tester
- Dual Range Non-Contact Voltage Tester with Flashlight
- Electronic AC/DC Voltage Tester
- Carrying Case
- Batteries
The CL120VP Electrical Test Kit from Klein Tools is designed with optimum reliability and safety in mind. Kit comes with 1 meter and 3 testers for a variety of applications, and all stored within a convenient padded pouch. The CL120 is an AC auto-ranging 400 Amp AC/DC digital clamp meter. The RT210 Receptacle Tester detects common wiring problems for Standard and GFCI AC electrical outlets. The NCVT-3P is a dual-range non-contact tester with a flashlight for a broad variety of voltage applications from 12 to 1000V AC or 70 to 1000V AC. Test AC and DC voltage at four commonly used ranges with the ET40 Voltage Tester.

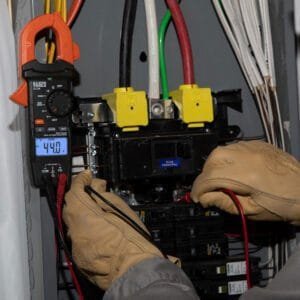

Klein Tools CL120 Clamp Meter is an automatically ranging digital clamp-meter that measures AC current and NCVT via the clamp, and AC/DC voltage, resistance, and continuity via test leads. Klein Tools Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with time-saving features.
- Voltage Indicators
- Power on / Low Battery Indicator
- DC Polarity Indicators
- Power Button
- Test Lead Holders
- Test Leads
- Pocket Clip
- Battery Compartment

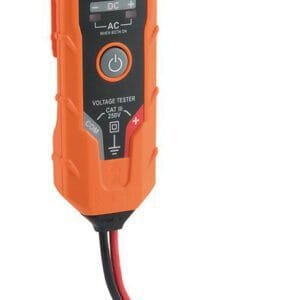

Klein Tools ET40 is an Electronic AC/DC Voltage Tester. It features indicators for positive and negative DC polarity and tests DC voltages as low as 1.5V. It tests AC voltages 12-240VAC. Excellent for checking, verifying, or troubleshooting common residential electrical wiring in electrical outlets, light fixtures, doorbells, and more. It operates on 2 x AAA batteries.
- Easy-to-read Dual Mode LED Indicators
- Flashlight Can be used independent of voltage detection
The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets, and wires as well as AC voltage in doorbells, thermostats, low voltage lighting, and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.
Â
Detects the most common wiring problems in standard and GFCI receptacles
Nominal Voltage: 110/125V AC to 50/60Hz in 3-wire outlet
Klein Tools Receptacle Testers are designed to detect the most common wiring problems in standard and GFCI receptacles. A convenient chart on the tester helps determine wiring conditions in outlet, based on LED lights results. Conditions indicated: open ground, reverse polarity, open hot, open neutral, hot/ground reversed.
Clamp Meters/Clamp Meters Template | |
---|---|
True RMS | No |
Maximum Current AC | 400 A |
Maximum Voltage AC | 600 V |
Maximum Voltage DC | 600 V |
Resistance | Yes |
Capacitance | No |
Auto Ranging/Manual | Auto Ranging |
Voltage / Continuity and Non-Contact Testers/Voltage and Continuity Testers Template | |
Type (Voltage Testers) | Contact |
Style (Voltage Testers) | Hand Held |
Voltage Tested | AC, DC |
AC Voltage | 240 VAC |
DC Voltage | 24 VDC |
CAT Voltage Rating | III |
CAT Voltage Rating (V) | 300V |
Voltage / Continuity and Non-Contact Testers/Non-Contact Voltage and Current Detectors Template | |
Style (voltage) | Pen |
Voltage Range (voltage detector) | 1kV |
AC Volts | Yes |
Flashlight Option | Yes |
CAT Rating | IV |
CAT Voltage | 1,000 V |
Electrical/Receptacle Testers Template | |
GFCI Protected | Yes |
Circuit Test Capability | Open Grounds, Open Hot, Open Neutral, Reversed Circuits |
Safety Voltage Rating | 300V |
Product General Attributes | |
Product Weight | 0.70 LBS |
Product Height | 1.5 IN |
Product Length | 8.5 IN |
Product Width | 3.5 IN |
Shipping Weight | 1 LBS |
HTS/Schedule B Number | 9030.33.3400 |
ECCN Number | EAR99 |
Country of Origin | China |
