Description
Klein Tools CL320KIT – HVAC Kit
- HVAC Kit with testers for the HVAC Professional; Cat. No. CL320 HVAC Digital Clamp Meter with AC Auto-Ranging, Cat. No. IR07 Dual IR/Probe Thermometer, and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight
- HVAC Clamp Meter Cat. No. CL320 with TRMS measurement technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature
- Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); accurately measure surface temperature with Infrared Thermometer (DS ratio 8:1)
Klein Tools HVAC Kit features Cat. No. CL320 Auto-Ranging, TRMS (True Root Mean Square), 400A HVAC Clamp Meter; Cat. No. IR07 Dual IR and Probe Thermometer, for both surface and air temperature measurements; and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight, for detection of AC voltage from 12 to 1000V with visual and audible indicators. Included is a convenient carrying pouch, test leads with CAT III/CAT IV safety caps, thermocouple, and all batteries.
Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from an average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.
Pocket-Sized DUAL Thermometer
- IR measures surface temp with target laser
- Probe for indoor air quality
- Backlit LCD Display

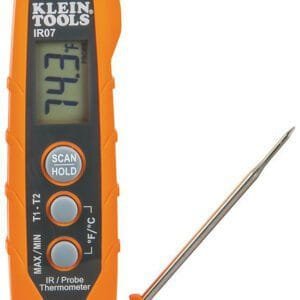

The Klein Tools IR07 is a dual IR (infrared) thermometer and probe thermometer. This rugged pocket thermometer measures temperature from -40 to 572-Degrees Fahrenheit (-40 to 300-Degrees Celsius) for both IR and probe measurements. The IR thermometer has a Distance-to-Spot ratio of 8:1 and the target laser can also be used as a laser pointer. The Probe accurately measures air, liquid, and surface temps and has a convenient hook for hands-free indoor measurements. The IR07 quickly calculates differential temperature (T1-T2) and has a backlit LCD for easy viewing in low light.
- Easy-to-read Dual Mode LED Indicators
- Flashlight Can be used independent of voltage detection
The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets, and wires as well as AC voltage in doorbells, thermostats, low voltage lighting, and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.
Clamp Meters/Clamp Meters Template | |
---|---|
True RMS | Yes |
Maximum Current AC | 400 A |
Maximum Voltage AC | 600 V |
Maximum Voltage DC | 600 V |
Maximum Conductor Size | 1.6 IN |
Resistance | Yes |
Capacitance | Yes |
Auto Ranging/Manual | Auto Ranging |
Voltage / Continuity and Non-Contact Testers/Non-Contact Voltage and Current Detectors Template | |
Style (voltage) | Pen |
Voltage Range (voltage detector) | 1kV |
AC Volts | Yes |
CAT Rating | IV |
CAT Voltage | 1,000 V |
Thermometers/IR Thermometers Template | |
IR Temperature Max | 572 F |
IR Temperature Min | -40 F |
Field View Ratio (Spot Ratio) | 8:1 |
Accuracy | +/- 2°C+ 0.1°C from -40° to 0°C +/- 2°C or +/- 2% whichever is greater from 1° to 300°C |
Laser Pointer | Yes |
Backlight | Yes |
Emissivity Adjustable | No |
Thermometers/Contact Thermometers Template | |
Temperature Range of Probe Accepted | 572 F |
Number of Probe Inputs/Channels | 1 |
Resolution (thermometers) | 0.1°F (0.1°C) |
Product General Attributes | |
Product Weight | 1.57 LBS |
Product Height | 1.5 IN |
Product Length | 8.45 IN |
Product Width | 3.5 IN |
Shipping Weight | 1.80 LBS |
