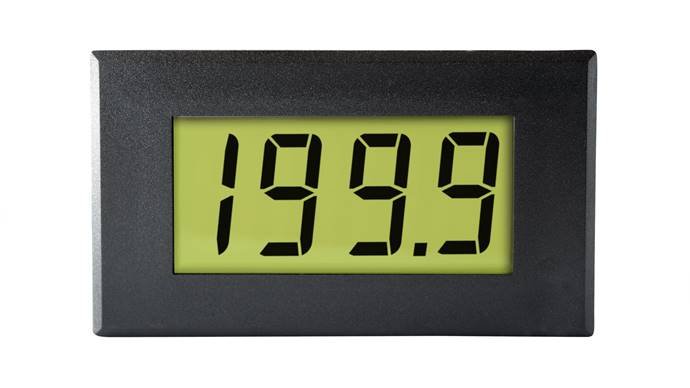

Lascar DPM 950 – 3½ Digit LCD Voltmeter
26 people are viewing this product right now
$100.08
Shipping calculated at checkout.
Estimated delivery:4 days
DPM 950 is3½ Digit LCD Voltmeter
- 19mm (0.75″) Digit Height
- IDC Interface
- Auto-zero
- Auto-polarity
- 200mV d.c. Full Scale Reading (F.S.R.)
- LED Backlight
- Single Rail Version
- Alarm Annunciator
Guarantee Safe and Secure Payment Checkout
Description
Lascar DPM 950 – 3½ Digit LCD Voltmeter
- LED Backlight
- IDC Interface
- Single Rail Version
- Alarm Annunciator
200mV d.c. Full Scale, LED Backlit, Bezel Mounted
The DPM 950 is a 3½ digit LCD voltmeter with 19mm (0.75″) digit height and LED backlighting. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter plugs directly into a 16-way IDC socket or can be panel mounted using the bezel. An optional IP67 / NEMA 4X bezel (BEZ 900-IP) is available for waterproof applications. This is a popular part, normally stocked in high quantity and suitable for new designs.
900 Series
| Supply Voltage | ||||
| Minimum | Typical | Maximum | Unit | |
| DPM 950 | 7.5 | 9 | 14 | V |
| DPM 950S | 3.5 | 5 | 6.5 | V |
| DPM 950S-FPSI | 4.5 | 5 | 5.5 | V |
| DPM 959B | 4.75 | 5 | 5.25 | V |
| DPM 970 | 7.5 | 9 | 14 | V d.c. |
| DTM 995B | 4.75 | 5 | 5.25 | V d.c. |
Panel Meters/Panel Meters Template | |
|---|---|
| Type (Panel Meter ) | Digital |
| Style (Panel Meter) | Rectangular/Square |
| Mounting (Panel Meter) | Panel Mount |
| Accuracy | 0.05 typ, 0.1 max(% (±1 count)) |
| Size-Face Width | 3 1/2 in |
Temperature / PID Controllers | |
| Backlit Display | Yes |
Product General Attributes | |
| Unique Features | 3½ Digit Backlit LCD Meter 200mV Full Scale Reading Auto-zero, Auto-polarity DIL Pin Connections Bezel Mounted Module |
| Safety Approval | RoHS |
| IP Rating | IP67 |
| Country of Origin | United Kingdom |
