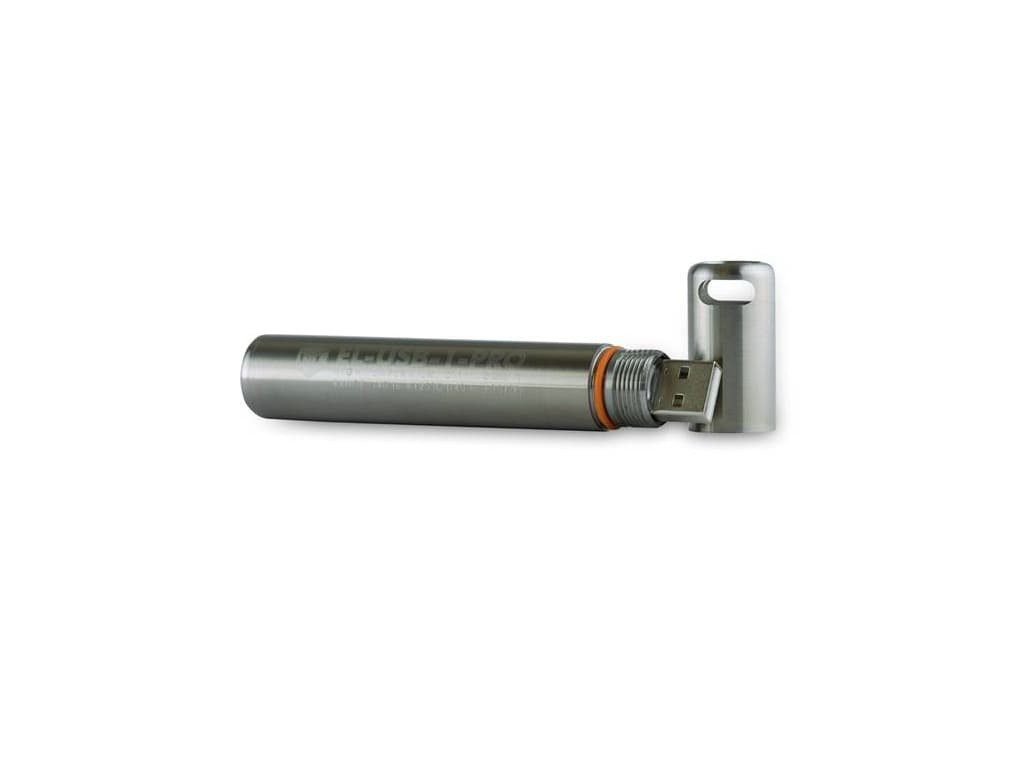

Lascar EL-USB-1-PRO – Extended Temperature Range Data Logger Lascar ELUSB1PRO EL USB 1 PRO EL-USB-1-PRO

• -40 to +125º (-40 to +275ºF) measurement range
• Stainless steel (316 grade) construction
• Environmental protection to IP-67
• USB interface for setup and download
• User-programmable alarm thresholds.

The EL-USB-1-PRO data logger measures and stores up to 32,510 temperature readings over the -40 to +125ºC (-40 to +257ºF) measurement ranges. The logger is housed in a stainless steel case to protect the logger from corrosion, impact and moisture (to IP-67). A long life lithium battery is included which allows logging for up to 3 years.

The user can easily set up the logger and view downloaded data by plugging the device into a PC’s USB port and using the supplied software. Data can then be graphed, printed and exported to other applications.

This product is a new release and we are currently experiencing high demand. Please contact our sales team to discuss lead-times.

Easy to install and use, the control software runs under Windows 98, 2000, XP (Home and Professional Editions)* and Vista (32-bit). It allows the user to set up and download any EL-USB-1-PRO.

• Logger name
• °C, °F
• Logging Rate (10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
• High and Low Alarms
• Immediate and delayed logging
• Data rollover (Allows unlimited logging periods by overwriting the oldest data when the memory is full).

The EL-USB-1-PRO is suitable for a wide variety of applications, these include:

• Pharmaceutical fridge monitoring
• Transportation
• Food & drink
• Building & site monitoring
• HVAC
