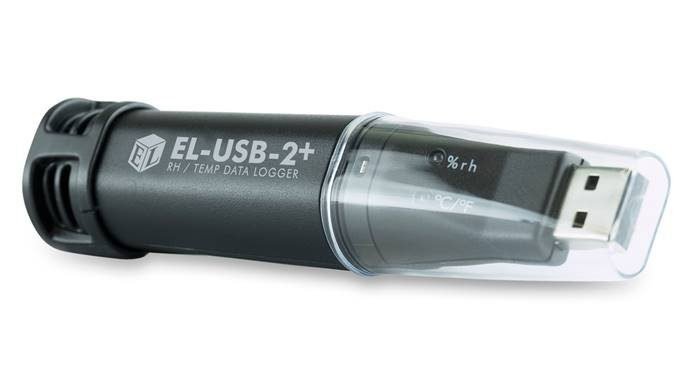

Lascar EL-USB-2+ – Data Logger Humidity, High Accuracy Temperature and Dew Point USB Lascar ELUSB2+ EL USB 2+ EL-USB-2+

• Increased Accuracy Temp/RH USB data logger
• Configuration software
• User-selectable alarm thresholds
• LEDs indicate logger status
• 0 to +100%RH Measurement Range

This standalone data logger measures and stores up to 16,382 relative humidity and 16,382 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logger and view downloaded data by plugging the module into a PC’s USB port and using the supplied software. Relative humidity, temperature and dew point (The temperature at which water vapour present in the air begins to condense) data can then be graphed, printed and exported to other applications.

The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for 1 year.

Easy to install and use, the control software runs under Windows 98, 2000, XP (Home and Professional Editions)* and Vista (32-bit). It allows the user to set up and download any EL-USB-2+.

• Logger name
• °C, °F
• Logging Rate (10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
• High and Low Alarms for Humidity and Temperature
• Start Date and Start Time

• The EL-USB-1-PRO is suitable for a wide variety of applications, these include:
• Pharmaceutical fridge monitoring
• Transportation
• Food & drink
• Building & site monitoring
• HVAC
