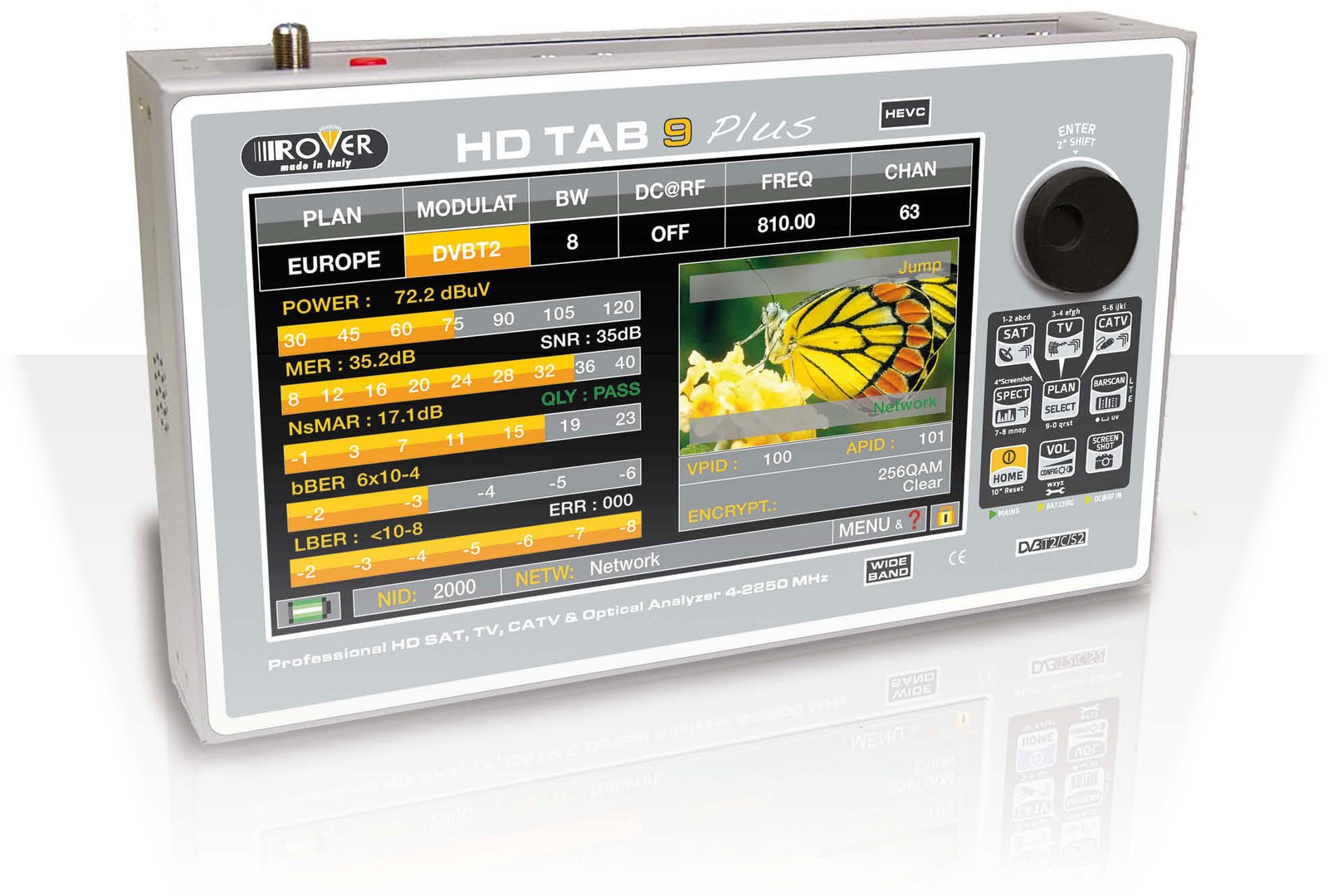

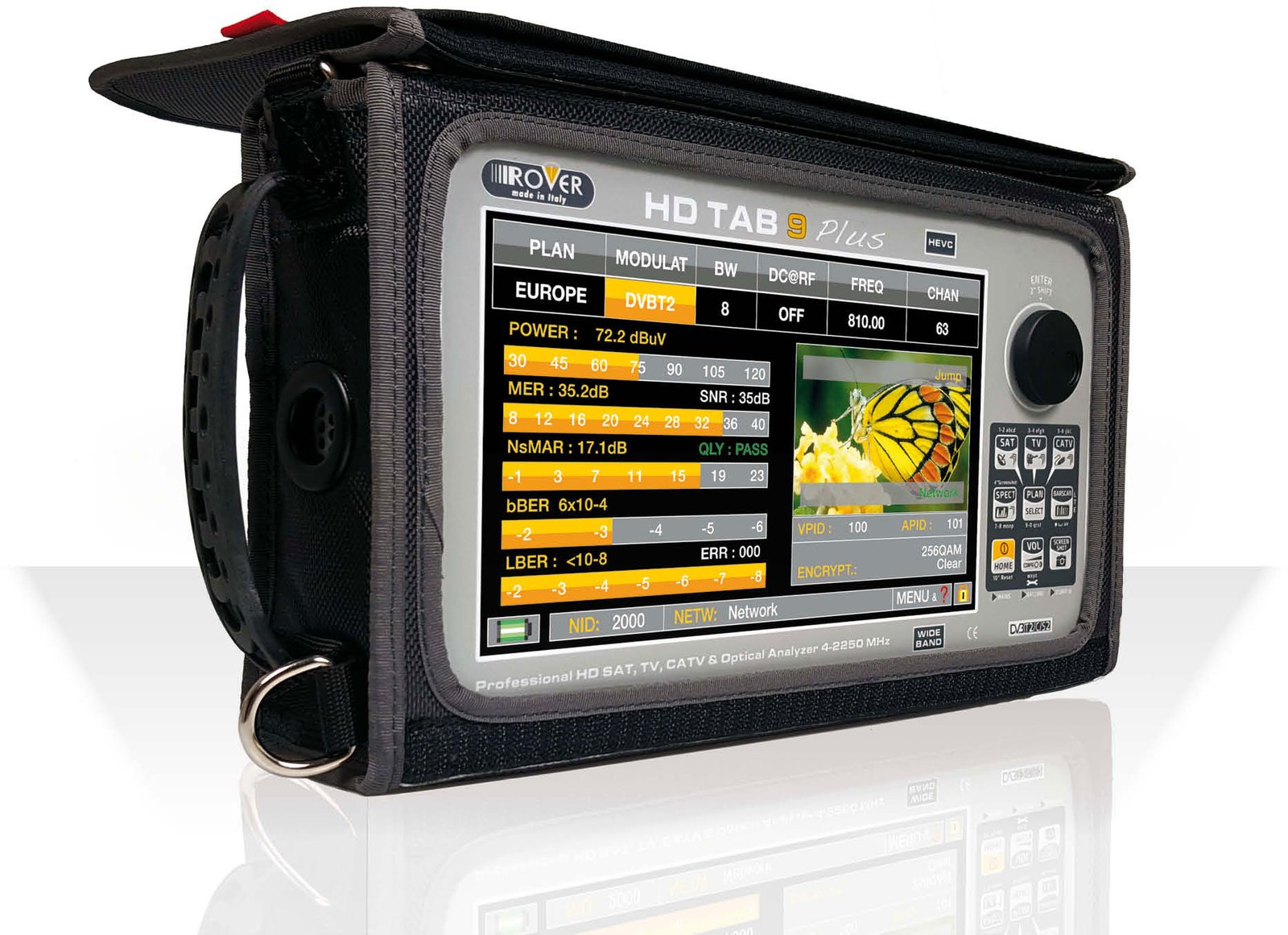

Leader HD TAB 9 PLUS – ATSC for USA Standard Signal Level Meter with Spectrum Analyzer
8 people are viewing this product right now
$6,900.30
Shipping calculated at checkout.
Estimated delivery:5 days
ATSC for USA standard Signal Level Meter with Spectrum Analyzer
- ETR 101-290 T.S. Analyzer
- Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode
- HELP function: automatically identifies all the signals with digital modulation SAT, TV and CATV
- Automatic Assistant: Signal Quality analysis, Channel Scan memorization
- Barscan TV & CATV function from 10 to 100 channels on one screen
- Buzzer & Noise Margin real time graph for digital signals microinterruptions
- Reflectometric measurements APP
- PRODRIVE TEST: Remote Monitoring and Logging: TS, measurements, spectrum, thumbnails
- Optical Input signals
- SATELITE: SAT SCR, DiSEqC, SCR & dCSS, motorized antenna, dual LNB, SAT FINDER and SAT EXPERT
- Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard
- Loggers: TV, SAT & combined with stop & go function
- SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite
Guarantee Safe and Secure Payment Checkout
Description
Leader HD TAB 9 PLUS – ATSC for USA Standard Signal Level Meter with Spectrum Analyzer
- ETR 101-290 T.S. Analyzer
- Frequency Range: TV, CATV & Radio: 4-1250 MHz; SAT: 950-2610 MHz
- Frequency Resolution: TV & CATV 25 KHz; SAT: 5 or 1 MHZ selectable
- Exclusive patented rover autodiscovery system
- Automatically identifies all the signals with digital modulation SAT, TV and CATV
- Signal quality analysis, channel scan memorization
Features

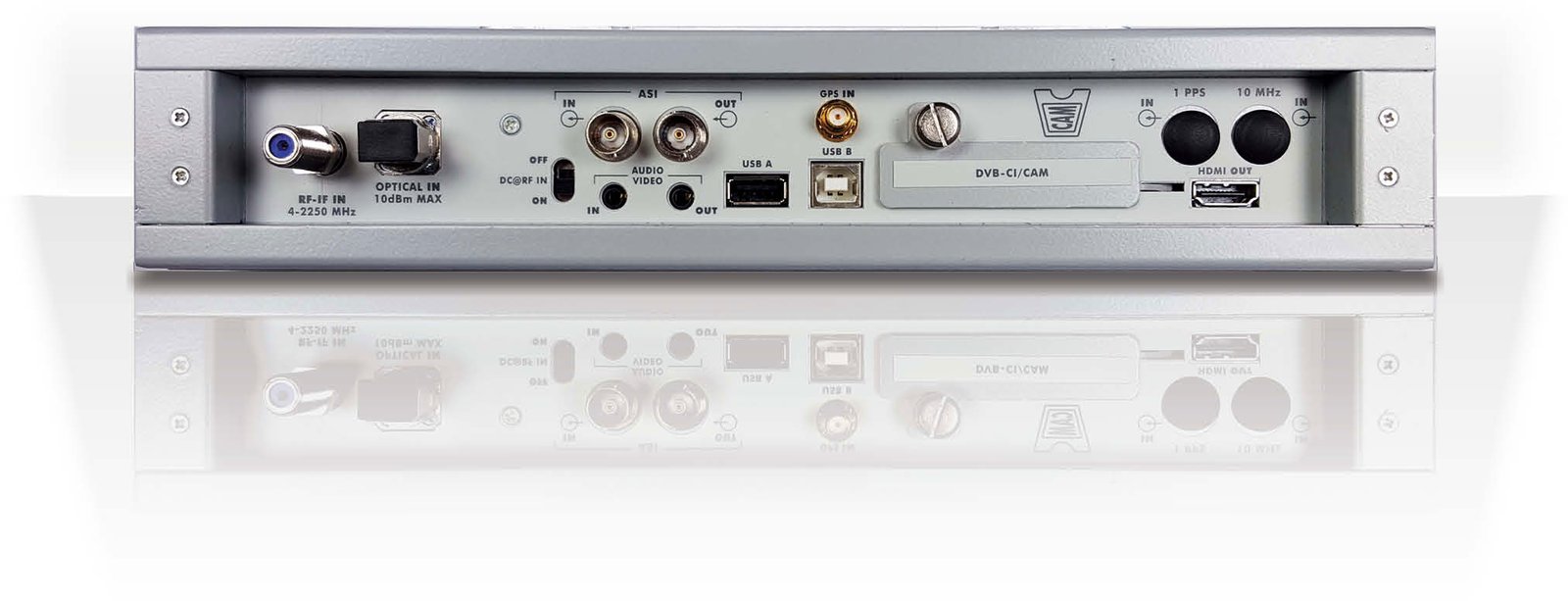

50Ω “N” Connector / RF In / 75Ω “F” Connector
- FREQ. Range 4-2.610 MHz
- DVB-S/S2 Multistream
- DVB-T, T2/T2 LITE MULT. PLP(OPT.) & C/C2
- ISDB-T (6/8 MHz)-ATSC-GB20600
- Analog TV
- FM Radio
- DAB & DAB +
- Real Time Spectrum (4-2.610 MH z )
- Mini Spect. with pictures
- GSM Band
- LTE Filter
- ITU Quality Coverage
- LTE Analyzer

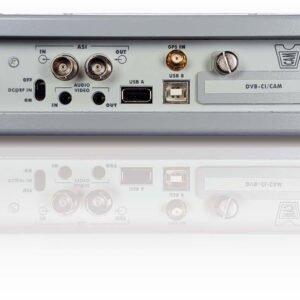

ASI T.S.
- ASI Input/Output
- DVB-T SFN Network Delay Meas.
- ETR 101-290 T.S. Analyzer
- Record/Reader
UHD – 4K HEVC
- H265
- High efficiency video coding
- 4K ULTRA HD
IP TV
- IP TO ASI Dencap.
- ASI TO IP Encap.
- IPTV Analyzer

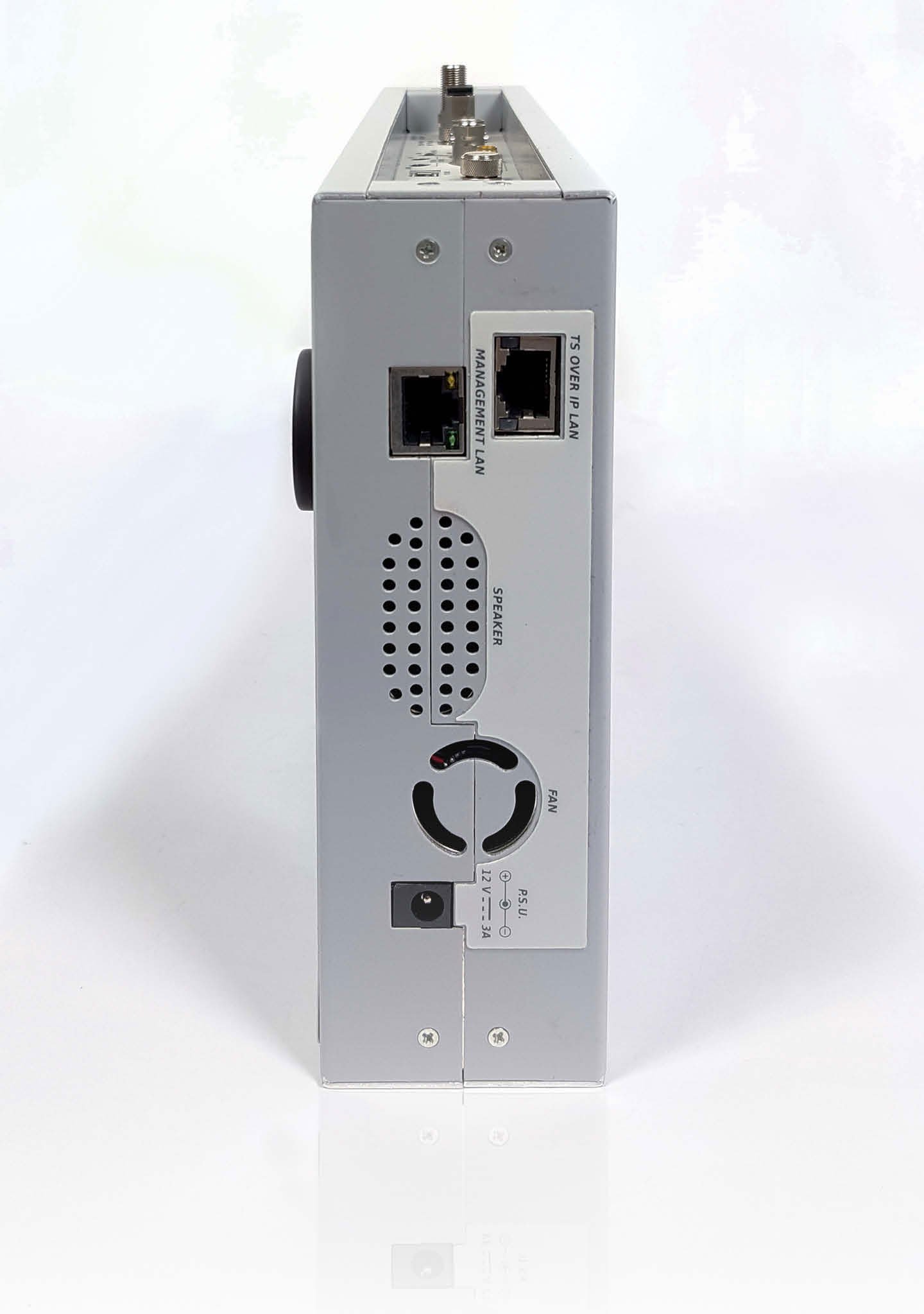

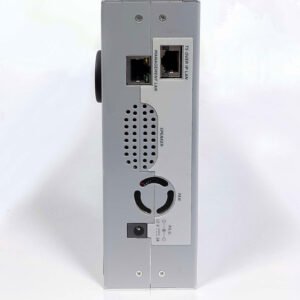

LAN
- T.S. Live Streaming
- T.S. Recording
- Remote control
- SNMP & HTTP
OPTIC (FC-ST-SC Interchangeable Connector)
- Power meter
- Power loss
- Power graph
- SAT, TV & CATV Spect & Measurement
GPS
- Position logging
- 10 MHz & 1 PPS Time reference
- GPS Antenna quality test
Monitoring
- 7 Days channel monitoring
- Logger with GPS
- Remote PC/Tablet control
- USB on the go for long term logging
- Prodrive test
- QOS 24 H with NMS
Measurement Examples
MER vs CARRIER: normal visualization
Spectrum SAT 500 MHz span
Single channel monitoring: 30 minutes
Spectrum TV 100 MHz span
DVB-T2 rotated Constellation 256 QAM mod., on the right relative modulation parameters & M-PLP
ECHO MEASUREMENT in SFN networks, with impulse response in real time, green area shows the guard interval
ETR 101290 Transport Stream Analyzer
GPS antenna Quality, constellation & Position
LTE Interference Autotest
Signal Level Meters – CATV / CCTV / Satellite/CATV Signal Level Meter Template | |
|---|---|
| Frequency Range Max | 1250 MHz (1250000000 Hz) |
| Frequency Resolution | 25 kHz (25000 Hz) |
Signal Level Meters – CATV / CCTV / Satellite/Satellite Signal Level Meter Template | |
| Minimum Frequency Range | 950 MHz |
| Maximum Frequency Range | 2610 MHz |
| Battery Run Time | 6 HR |
| Graphical Display Type | TFT LCD |
| Backlight | Yes |
Product General Attributes | |
| Interfaces I/O | LAN / Ethernet, RF, HDMI, USB |
| Product Weight | 13.23 LBS |
| Product Height | 11.42 IN |
| Product Length | 2.17 IN |
| Product Width | 7.00 IN |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 13.23 lbs |
|---|---|
| Dimensions | 2.17 × 7 × 11.42 in |
