Leader LV5300A – Waveform Monitor, SDI Inputs (2), Eye Pattern and Jitter Measurements

• AC Adapter not included GST90A12 (AC Adapter is unnecessary for battery option)
• Video analysis function – video signal waveform displays, vector display, picture display, and more
• Audio analysis function – audio signals superimposed on SDI signals, embedded audio, and more
• SDI signal data analysis function – event log, data dump, phase difference measurements, and more

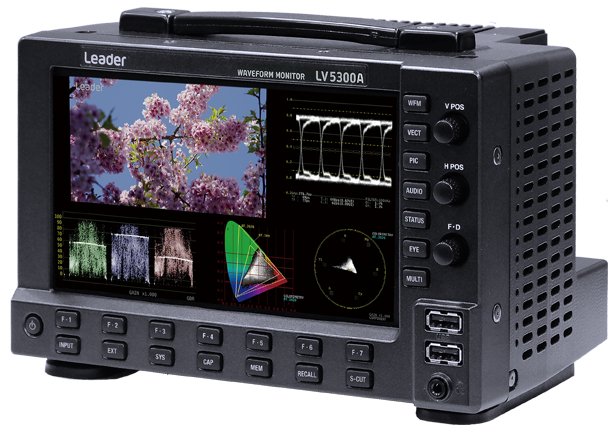

The Leader LV5300A Waveform Monitor is compact without sacrificing performance, supporting SDI signals from SD through 12G rates and including physical layer testing. The LV5300A is a 3U half-rack, short-depth waveform monitor, with a built-in 7-inch touch screen display and a full array of buttons and control knobs.

The waveform, vector, picture, audio, and eye pattern displays enable simple yet comprehensive measurements and quality control of the widest range of audio and video formats. The status display allows you to assess errors and system stability with both event logs and long-term charts. Audio embedded in SDI signals can be shown on the level, Lissajous, and status displays.

The Leader LV5300A has a DC power input, which enables it to be used in locations where AC power supplies are not available. Moreover, the LV5300A can be battery-operated by installing a battery mount option. With its combination of touch screen, dedicated buttons and knobs, and user-defined screen layouts the LV5300A allows complex measurement and monitoring tasks to be quickly completed in almost any environment.

Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your preferred size. Two input signals can be displayed simultaneously, or one input signal can be displayed on multiple.
