Leader LV5350 – Waveform Monitor

• 3U half-rack, short-depth waveform monitor
• Built-in 7-inch touch screen display and a full array of buttons and control knobs
• Capable of supporting SDI signals from SD through 12G rates, depending on options purchased
• AC Adapter and battery mounts sold separately
• Requires option LV5350-SER26 – Customizable Layout Function

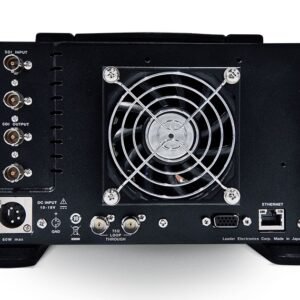

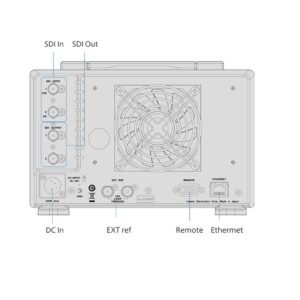

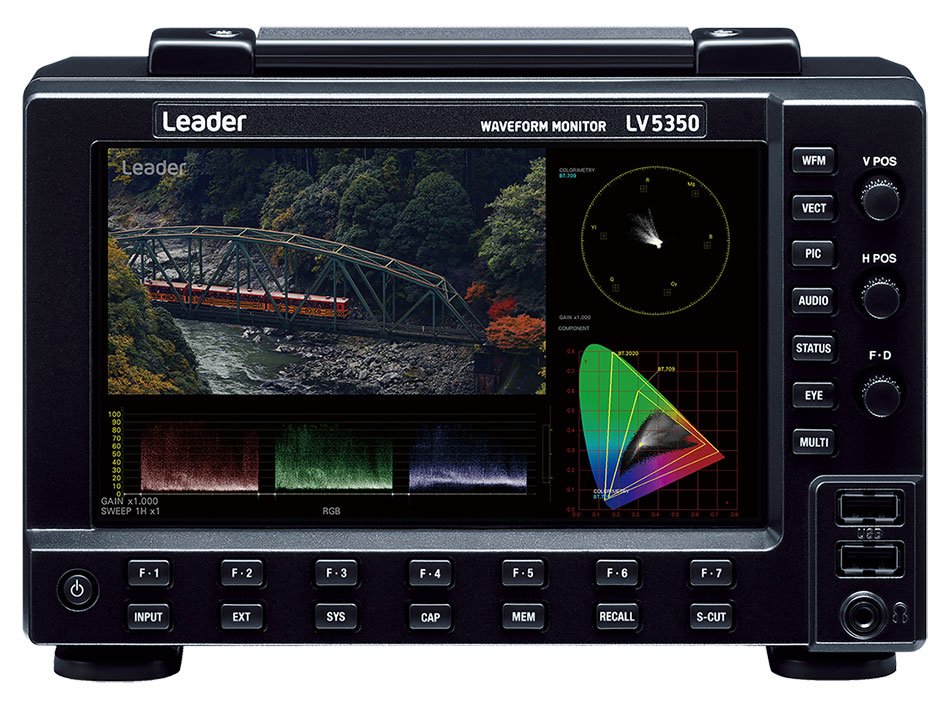

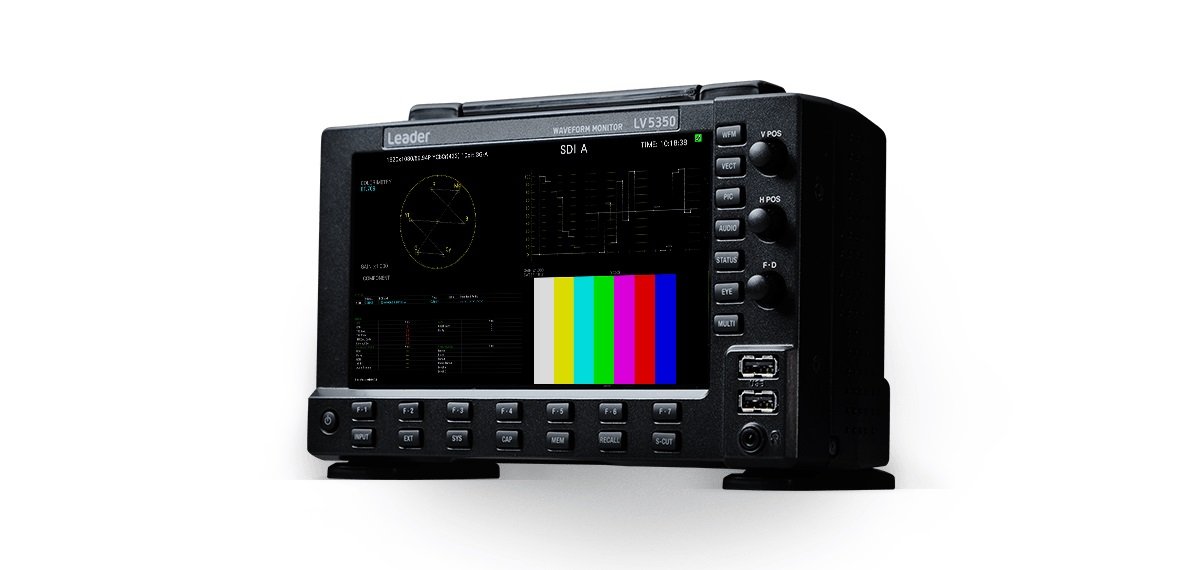

The LV5350 WAVEFORM MONITOR is compact without sacrificing performance. The LV5350 is a 3U half-rack, short-depth waveform monitor with a built-in 7-inch touch screen display and a full array of buttons and control knobs. It can be configured with a variety of options including audio analysis, HDR measurement, 4K support, and customized layout.

The instrument enables simple yet comprehensive measurements and quality control of the widest range of audio and video formats. The status displays provided with certain options allow you to assess errors and system stability with both event logs and long-term charts.

The LV5350 has a DC power input, which enables it to be used in locations where AC power supplies are not available. Additionally, the LV5350 can be battery-operated by installing a battery mount option, ideal for onsite work or any location where power is a challenge. With its combination of touch screen, dedicated buttons and knobs, and optional user-defined screen layouts the LV5350 allows complex measurement and monitoring tasks to be quickly completed.

Please note, power supplies for the LV5350 are sold separately. Available options are listed below.

• LV5350-SER11 – IDX Battery Mount for LV5350, batteries must be sourced separately
• LV5350-SER12 – Anton Bauer Battery Mount for LV5350, batteries must be sourced separately
• GST90A12 – AC Adapter for LV5300, LV5350

Please note, option LV5350-SER26 is required (sold separately)

• Order will not proceed without selection of function LV5350-SER26
• See Accessories section of this webpage for link to LV5350-SER26 product page

Several models of Leader waveform monitors and rasterizers are available. The table below provides an overview of available models.

*Adapters required for rack mounting

Shown below are several popular options for the LV5350. More options are available in the Accessories section of this page.

Lissajous display, surround display, mute, clip error detection, etc. are added with this option. Numerous analysis displays are available, and simultaneously display of 8 channels from one SDI signal and 4 channels from 2 SDI signals is possible. Embedded audio playback system complies with SMPTE ST 299, 272.

A chromaticity display of ITU- R BT. 601, ITU- R BT. 709, ITU- RBT. 2020 colorimetry. The display mode supports CIE 1931 (xy display) and CIE 1976 (u’v’ display). Since the CIE chart can display two color gamuts, the tool can be used to suppress the color gamut of BT.709 using the equipment compatible with BT.2020, and to confirm the content that exceeds the color gamut of BT.709. In color display, the chromaticity point is displayed using the color (on the picture) in the video signal. The chromaticity can be measured at any pixel with the cursor.

In addition to HLG and PQ per ITU-R BT.2100, this option also supports level monitoring of S-log3 HDR signals. Level management can be made using the assumed luminance (cd/m2) in a display considering OOTF. The video waveform includes the HDR scale added to the IRE scale. In the CINEZONE display, the luminance distribution of the HDR area can be easily confirmed with the SDR area shown in monochrome, and the HDR content with a color according to the brightness.

Users can size and position all video displays, waveforms, vectorscopes, gamut views, audio tools, etc as desired to optimize the screen for any specific workflow or user. Two input signals can be displayed simultaneously, or one input signal can be displayed on multiple screens.

Adds RGB Vector and YCbCr Vector

Extends existing product warranty to a total of 3 years or 5 years
