Leader LV5600 – Waveform Monitor

• Built-in 7-inch touch screen display and a full array of buttons and control knobs
• Built-in AC power supply
• Selection of necessary input signals and functions from various options easily allows customization to the specification that fits your purpose
• Requires order of at least one of the following input options (sold separately): LV5600-SER01, LV5600-SER02A, or LV5600-SER06
• Requires option LV5600-SER26 – Customizable Layout Function (sold separately)

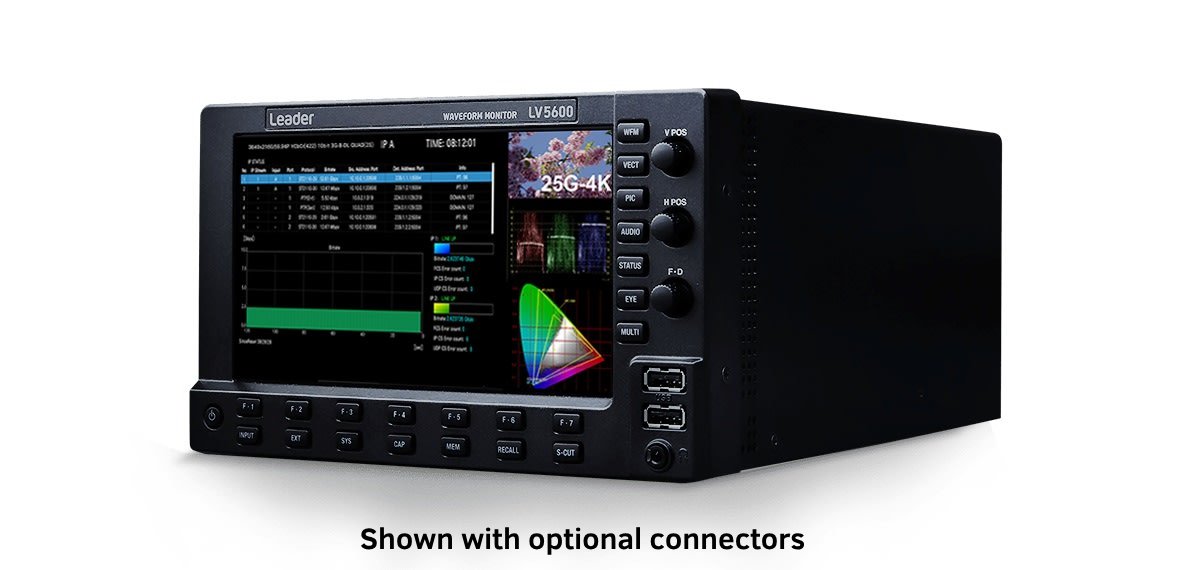

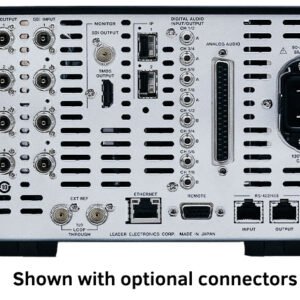

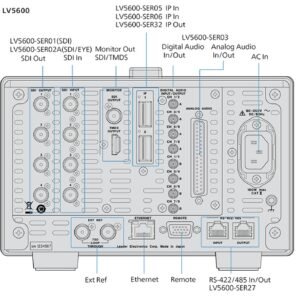

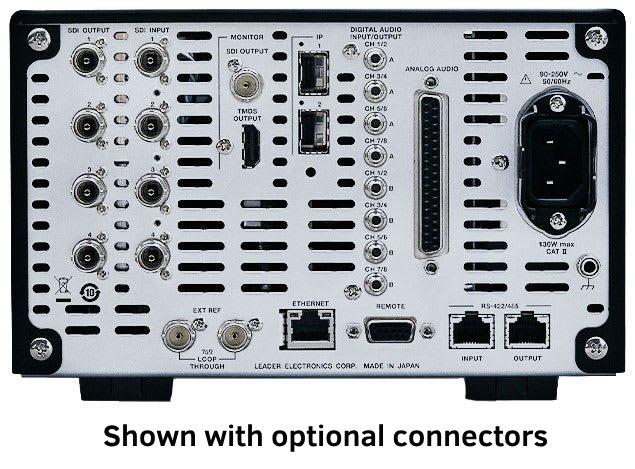

The LV5600 is a ‘True-Hybrid’ waveform monitor that features a 7-inch touch screen display in a compact 3 RU enclosure with a built-in AC power supply. It can be optioned to support a variety of SDI signals up to 12G-SDI, as well as video over IP.

With its combination of touch screen, dedicated buttons and knobs, and optional user-defined screen layouts the LV5600 allows complex measurement and monitoring tasks to be quickly completed. Designed with the future in mind, the LV5600 addresses your current and evolving video and audio testing needs.

Please note, at least one of the following signal input functions must be selected (sold separately)

• LV5600-SER01 – SDI (may not be selected in combination with LV5600-SER02A)
• LV5600-SER02A – SDI and Eye Pattern (may not be selected in combination with LV5600-SER01)
• LV5600-SER06 – IP (may be selected alone or in combination with either LV5600-SER01 or LV5600-SER02A)
• Order will not proceed without selection of one or more of the above
• See Accessories section of this webpage for links to the signal input product pages

Please note, Custom Layout option LV5600-SER26 is required (sold separately)

• Order will not proceed without selection of function LV5600-SER26
• See Accessories section of this webpage for link to LV5600-SER26 product page

Several models of Leader waveform monitors and rasterizers are available. The table below provides an overview of available models.

*Adapters required for rack mounting

Shown below are several popular options for the LV5600. More options are available in the Accessories section of this page.

Video analysis, audio analysis, SDI signal data analysis, screen capture, frame capture viewer software, time code display, input output terminal, closed caption display, simple Japanese Closed Caption display, and CIE chart display are all added with this function.

Audio analysis, lip sync measurement, embedded audio, external input audio, and digital audio input/output terminal are all added with this function.

Video analysis, audio analysis, transmission quality analysis, screen capture, time code display, redundancy system, packet jitter measurement, IP packet status display, PTP packet status display, conversion output of SDI from IP, packet capture, packet header analysis, display of delay for each port, redundancy measurement, logging by PTP timestamp, PTP information display, adds payload ID when IP is converted to SDI, CSV file copy of graph data, audio ANC packet jitter display, buffer measurement, support IP format, SMPTE input video and audio formats, ancillary data, SFP+ / SFP28 inputs

In addition to HLG and PQ provided by ITU-R BT.2100, the level monitoring of the HDR signal corresponding to S-log3 and the level management at the assumed luminance (Nits) in a display considering OOTF are possible.

The video signal waveform displays HDR scale along with the IRE scale. In the cine zone display, the luminance distribution of the HDR area can be easily confirmed by displaying the SDR area in monochrome, and the HDR with a color according to the brightness.

Various items such as video signal waveforms display, vector display waveforms, and images of input signals can be laid out in any position with your user’s preferred size. Multiple input signals up to 4 inputs can be displayed simultaneously, or one input signal can be displayed on multiple screens.

The display assignment function can allocate an SDI input signal to multiple display channels, and each channel can monitor a different display format. For example, displaying the signal input to SDI input 1 as component video waveform can be displayed on display channel A and the composite video waveform can be displayed on display channel B.

Supports 4K video format signals of 3G-SDI dual link and quad link, HD- SDI quad link. In the case of 3G-SDI dual link input, up to two inputs can be displayed through switching.

Adds 12G-SDI and 6G-SDI single link. Also, up to four inputs can be displayed through switching.

This feature simplifies the task of identifying the reproduction errors which can occur when transmitting video content produced in BT.709, DCI-P3 or BT.2020 wide color gamut or when converting content from BT.2020 to narrow color gamut.

Adds RGB Vector and YCbCr Vector

Extends existing product warranty to a total of 3 years or 5 years
