Leader LV7300 – Rasterizer

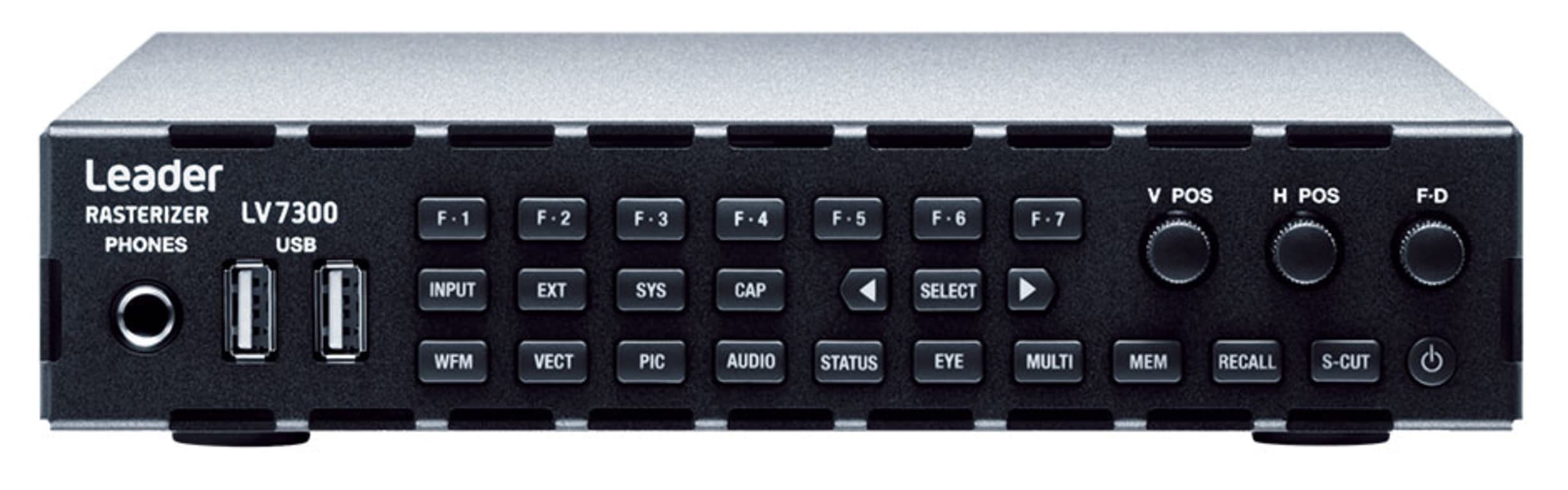

The LV7300 Rasterizer is compact without sacrificing performance, all in a 1U half-rack enclosure. It can be configured with a variety of options including audio analysis, HDR measurement, 4K support, and customized layout.

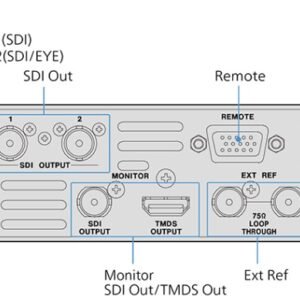

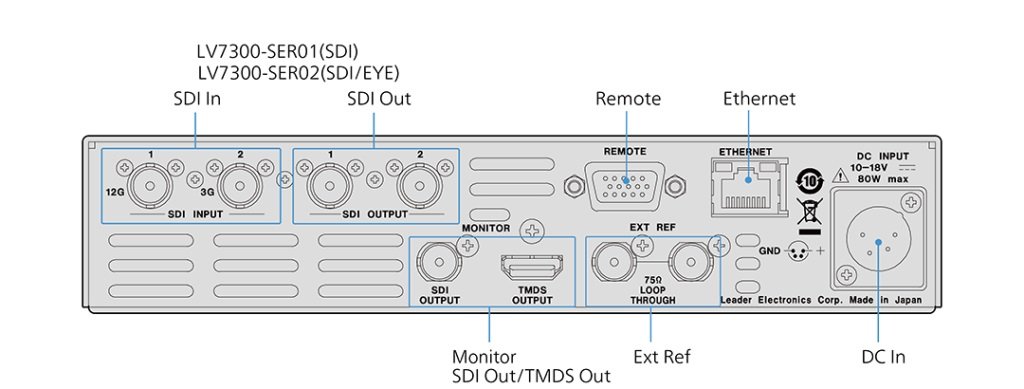

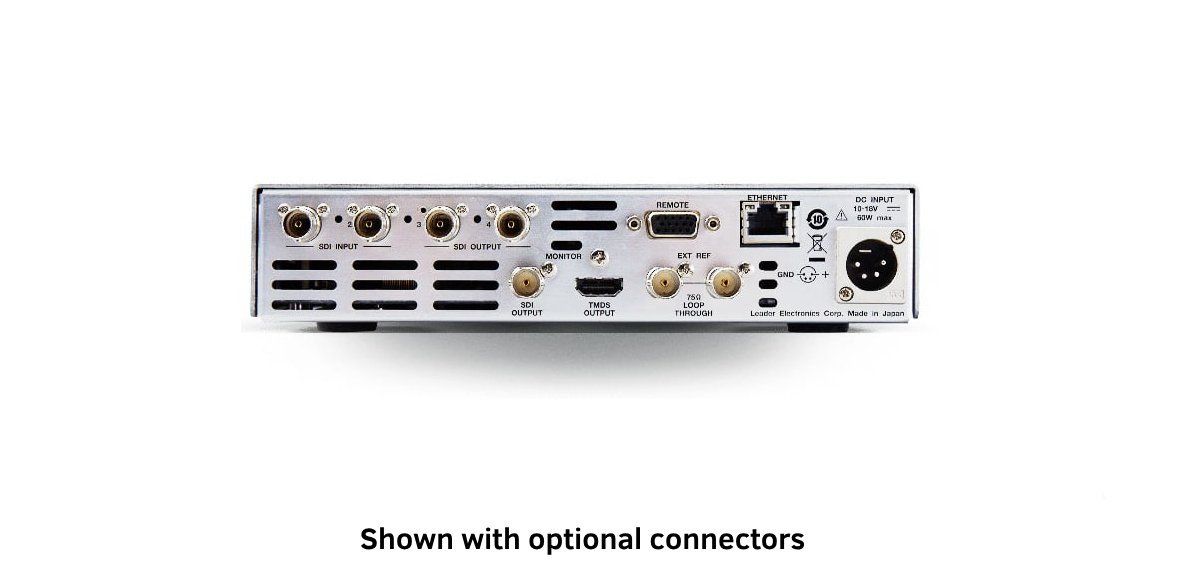

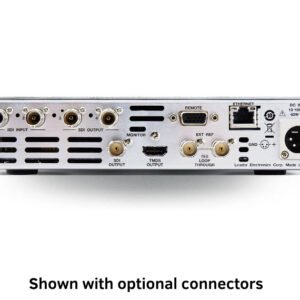

The LV7300 has a DC power input, which enables it to be used in locations where AC power is not available.

Please note, options LV7300-SER01 and LV7300-SER26 (both sold separately) are required

• Order will not proceed without selection of these options
• See Accessories section of this webpage for links to the product pages for the options

Several models of Leader waveform monitors and rasterizers are available. The table below provides an overview of available models.

*Adapters required for rack mounting

Shown below are several popular options for the LV7300. More options are available in the Accessories section of this page.

Adds video analysis function, audio analysis function, SDI signal data analysis function, screen capture function, time code display, and input/output terminal.

Lissajous display, surround display, mute, clip error detection, etc. are added with this option. Numerous analysis displays are available, and simultaneously display of 8 channels from one SDI signal and 4 channels from 2 SDI signals is possible. Embedded audio playback system complies with SMPTE ST 299, 272.

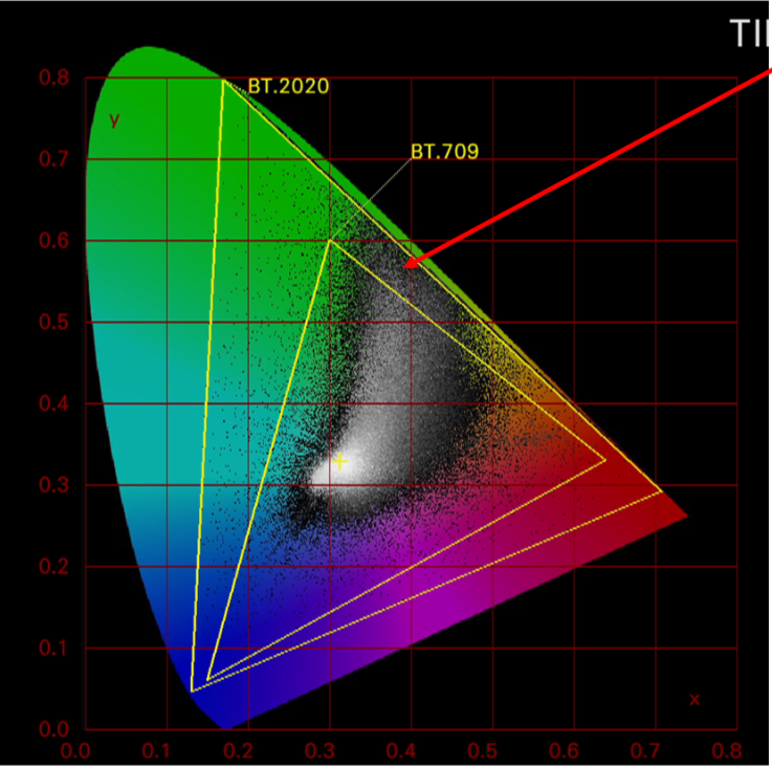

A chromaticity display of ITU- R BT. 601, ITU- R BT. 709, ITU- RBT. 2020 colorimetry. The display mode supports CIE 1931 (xy display) and CIE 1976 (u’v’ display). Since the CIE chart can display two color gamuts, the tool can be used to suppress the color gamut of BT.709 using the equipment compatible with BT.2020, and to confirm the content that exceeds the color gamut of BT.709. In color display, the chromaticity point is displayed using the color (on the picture) in the video signal. The chromaticity can be measured at any pixel with the cursor.

In addition to HLG and PQ provided by ITU-R BT.2100, the level monitoring of the HDR signal corresponding to S-log3 and the level management at the assumed luminance (Nits) in a display considering OOTF are possible. The video signal waveform display corresponds to the HDR scale added to the IRE scale. In the cine zone display, the luminance distribution of the HDR area can be easily confirmed by displaying the SDR area with monochrome, and the HDR with a color according to the brightness.

Users can size and position all video displays, waveforms, vectorscopes, gamut views, audio tools, etc as desired to optimize the screen for any specific workflow or user. Two input signals can be displayed simultaneously, or one input signal can be displayed on multiple screens.

Adds RGB Vector and YCbCr Vector

Extends existing product warranty to a total of 3 years or 5 years
