Description

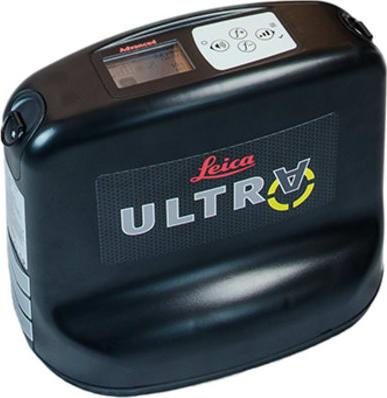

Leica ULTRA ADV TRANS 12 WATT – Ultra Advanced Transmitter, 12 Watt
- Article number 818700
- 12 Watt output power transmitter only
- Frequency range: 256 Hz – 200 kHz
- Multimeter functions: Watts, currents, ohms, and volts
- High contrast graphical LCD display
Most advanced, high-performance transmitter ideal for complex and challenging site conditions. 100 configurable frequencies that perform well tracing over long distances & also for high impedance cables. The advanced transmitter also incorporates a wireless link to the ULTRA Advanced locator.
Transmitters for Utility Location Attributes | |
|---|---|
| Maximum Output Watts | 12 watts |
Product General Attributes | |
| Unique Features | • 12 Watt Output Power • Ambient Interference Measurement (AIM) – Measures interference and recommends best frequency • Offset depth – Measures horizontal and vertical distance to the line • Bluetooth – Wireless connectivity to GIS field PC, GNSS receiver • Dual output – Remotely select active output (must have optional dual output leads) |
| Warranty | 1 YEARS |
| Interfaces I/O | Bluetooth |
| IP Rating | IP65 |
| Product Weight | 7.7 LBS Product Weight Including batteries |
| Product Height | 7.75 IN |
| Product Length | 10 IN |
| Product Width | 12 IN |
| Power Supply Voltage | Battery Powered Power Supply Voltage External 12V power connec-tion |
| Country of Origin | Switzerland |
| Other Information | Frequency range:: 256 Hz – 200 kHz Output power:: 12 Watt Current, max:: 500 mA Voltage, max:: 65V rms Enabled frequencies:: 512 Hz, 3.14 kHz, 8.192 kHz, 32.768 kHz, 83.1 kHz, 200 kHz |
