Lignomat D-2M mini-Ligno DX/C – mini-Ligno DX/C, Electrode E12 Cable, Case

• A unique shape that fits comfortably in your hand when measuring
• A measuring range low enough to check hardwood floors (5%*)
• A measuring range high enough to evaluate wet lumber (65*)
• A bright, digital display readable even in dark crawl spaces
• Resolution of 0.1% below the critical range of 10%

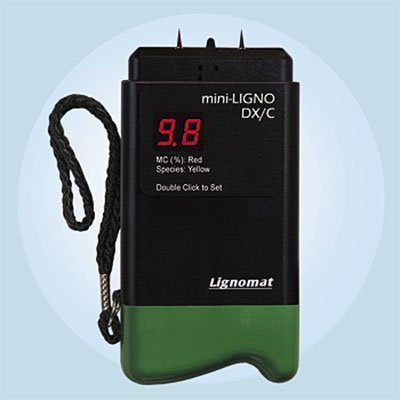

The mini-Ligno DX/C is a pin meter for measuring the wood, bamboo, sheetrock, and other building materials with a built-in connector for an external electrode.

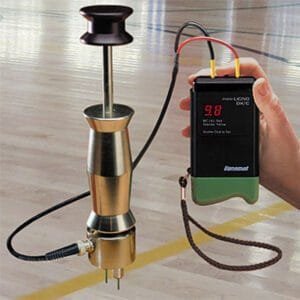

The D-2M package comes with the mini-Ligno DX/C, slide hammer electrode E-12, BNC-mini cable-3′, one pair of 1” pins and 1 ½” pins, and a medium case.

Mini-Ligno moisture meters are made easy to use and sturdy. They give accurate and reliable measurements due to Lignomat’s advanced measuring technology. The unique LED display is virtually unbreakable and bright enough to read even in poorly lit areas.

Whether you are a woodworker, floor installer, inspector, or restoration specialist, if accuracy and versatility are important to you, the digital moisture meter mini-Ligno DX/C will provide both.

The digital moisture meter comes with 42 settings to correct for:

• Domestic and tropical wood species
• Horizontal, vertical, and strand bamboo
• Laminates and panel products
• Gypsum and drywall (*same as mini-Ligno S/D and mini-Ligno S/DC)
• Reference scale for concrete and other building materials.

Review packages for DX/C to choose the electrode, that best suits your needs. Pins are available to measure up to 7″ deep. Pin meters work for all thicknesses of wood from veneer to logs. Any shape round or oval can be measured as long as both pins fit in the same piece. Versatility is one of the advantages over pinless meters.

Advanced Multi-purpose Moisture Meter:

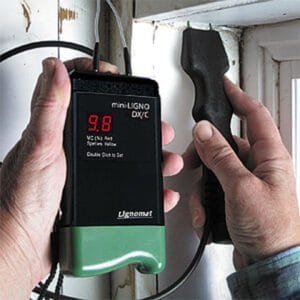

A multi-purpose instrument to check wood and building materials with its own percent scale for sheetrock, wood, and bamboo. Other building materials can be checked with the reference scale. Great when checking for moisture problems in buildings.

Designed for home inspectors, wood floor installers, architects, contractors, painters, and homeowners to measure moisture in wood and soft building materials such as sheetrock, plaster, and gypsum. Ideal to pinpoint problem areas. The reference scale for non-wood building materials allows easy identification of excess moisture. Also includes 40 different wood calibrations for testing a variety of domestic and tropical species plus calibrations for bamboo. This meter is great for the hardwood floor installer who comes across many different species of wood and bamboo. Includes built-in connectors for attaching an optional electrode.

The functionally designed mini-Ligno DX/C fits in your hand when measuring and is small enough to carry in a shirt pocket. The green cap covers the pins during transportation and serves as a handle when pushing the pins into the wood. This unique design allows pushing behind the entire meter to insert the tapered pins easily. Longer pins are stored inside the meter for measuring thicker material. The short pins are ideal for surface or end cut readings and for the veneer.
