LX Microscopes by Unitron 14710-TS – ZoomHD with Track Stand

The LX Microscopes by Unitron 14710-TS is a Zoom HD inspection system with track stand. It features a magnification range of 0.7 – 5x, has a built in ring light and can be connected to an external monitor to view images in real time (monitor not included).


Live HD Images for Rapid Inspection

The 2.0 megapixel CMOS camera (1080p, 60fps) of the ZoomHD delivers crisp, sharp images for lightning-fast live viewing or captured photos. The ZoomHD connects to any HD monitor with its included HDMI cable. Wide Dynamic Range (WDR) enables visualization of more detail in the sample.


Wide 7:1 Zoom Range

The ZoomHD offers a 0.7x – 5.0x magnification range with click stops at 1x, 1.5x, 2x, 3x, 4x and 5x. Magnification can be easily adjusted on the front of the microscope.


Integrated LED Ring Light

A ring light is integrated into the ZoomHD microscope. 56 bright LEDs

provide brilliant, even illumination across the field of view. Use the adjustable intensity to provide the right amount of illumination for your sample.


On-screen Camera Control With Optional Monitor – No PC required!

The ZoomHD features built-in camera that can be readily controlled using just the included wireless mouse. Save images directly to a user-supplied USB flash drive. No need for a PC!

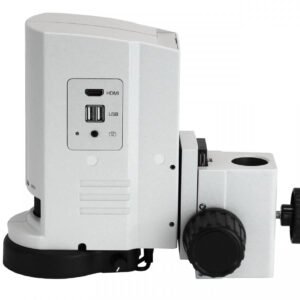

Two USB 2.0 side ports allow for easy and quick connection of the wireless mouse (included) and a USB flash drive (not included). Connect an HD monitor via the HDMI port, and use the camera button to snap an image (images are saved to the USB flash drive).

Readily change zoom with the front-mounted zoom wheel. Click stops make it easy to repeat magnification positions.

The integrated, variable LED ring light provides brilliant, even illumination across the field of view.
