MadgeTech Process101A – Compact, Low-Level DC Current Datalogger

• Available in 3 measurement ranges: -2mA to +30mA, ±160mA, or ±3A
• Reading rate: 4Hz to 1 reading every 24 hours
• Memory storage capacity of up to 2,095,104 readings
• Multiple start/stop function
• Programmable high and low alarms

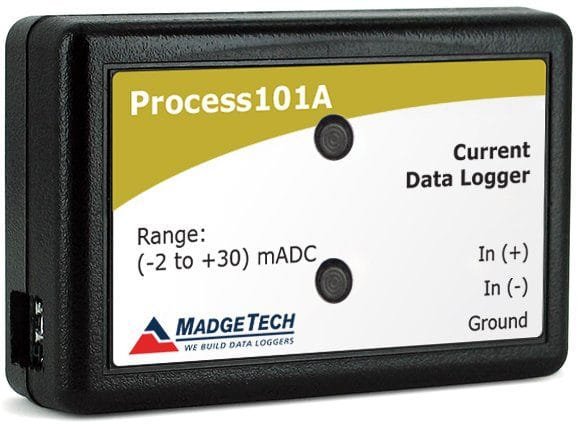

The Madgetech Process101A is a compact datalogger that measures and records low-level DC currents. It is available in three measurement ranges: 30mA (-2 to 30mA), ±160mA, or ±3A. The Process101A features a 4Hz reading rate and storage capacity of up to 2,095,104 readings.

Equipped with multiple start/stop modes, the Process101A can be programmed to start up to 18 months in advance and has user-specified high/low alarms. Its screw terminal block is designed to easily connect and disconnect to the logger body while keeping the wiring to the terminal block. Additional features include a battery life indicator, optional password protection, memory wrap, and more.

The Process101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

***Please note, the IFC200 interface cable is sold separately. ***
