MadgeTech RFVolt2000A-30V – Wireless Voltage Data Logger, LCD Screen
19 people are viewing this product right now
$361.90
Shipping calculated at checkout.
Estimated delivery:5 days
Wireless 30VDC Voltage Data Logger with LCD
- Wireless 30VDC Voltage Data Logger with LCD
- Battery Life Indicator
- Digital Display
- Direct USB Interface
- AC Power connection via USB
- Configurable Alarms
- Ability to manually reset statistics
- 5 year battery life at 15 Minute Reading Rate
- 160mV Model Measures Differential Voltage
Guarantee Safe and Secure Payment Checkout
Description
Madgetech RFVolt2000A-30V
- Wireless 30VDC Voltage Data Logger with LCD
- Battery Life Indicator
- Digital Display
- Direct USB Interface
- AC Power connection via USB
Wireless Voltage Data Logger, LCD Screen
The RFVolt2000A is a wireless voltage data logger designed to connect directly to DC voltage sources. This device can also be interfaced with a wide range of voltage output sensors, including pressure sensors and CO2 sensors, as well as transmitters and other transducers. The RFVolt2000A is available in four ranges: 2.5VDC, 15VDC, 30VDC, or 160mVDC.

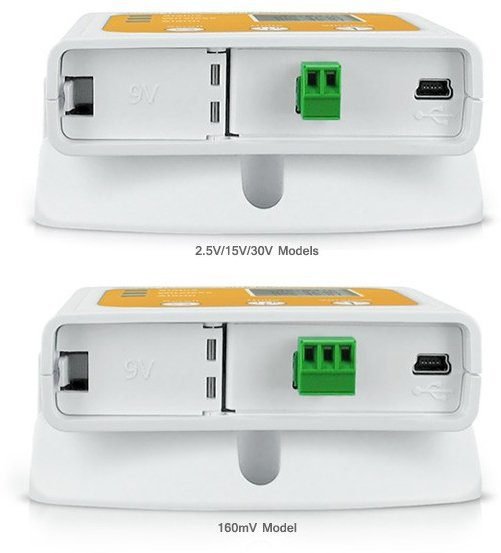

The RFVolt2000A-160mVDC model is a wireless, differential voltage data logger. The device is equipped with a three-position terminal block to allow for a positive, negative, and ground connection. This allows the measurement of the voltage difference between two signals tied to the same ground.
This device features an LCD screen that provides instant access to current readings, and minimum, maximum, and average statistics. Equipped with user-programmable alarms, the RFVolt2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.
Dataloggers / Data Acquisition/Voltage Datalogger Template | |
|---|---|
| Max Voltage | 32 V |
| Min Voltage | -8 V |
| Power Source | Battery Power Source 9V Lithium Battery |
| Battery Life | 43800 HR Battery Life At 15 minute reading rate |
| LCD Screen | Yes |
Product General Attributes | |
| Safety Approval | CE |
| Product Weight | 0.2563 LBS |
| Product Height | 0.95 IN |
| Product Length | 3.5 IN |
| Product Width | 3.17 IN |
| HTS/Schedule B Number | 9030.39.0100 |
| ECCN Number | 3A992.a |
| Calibration Included | NIST Calibration |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 0.2563 lbs |
|---|---|
| Dimensions | 3.5 × 3.17 × 0.95 in |
