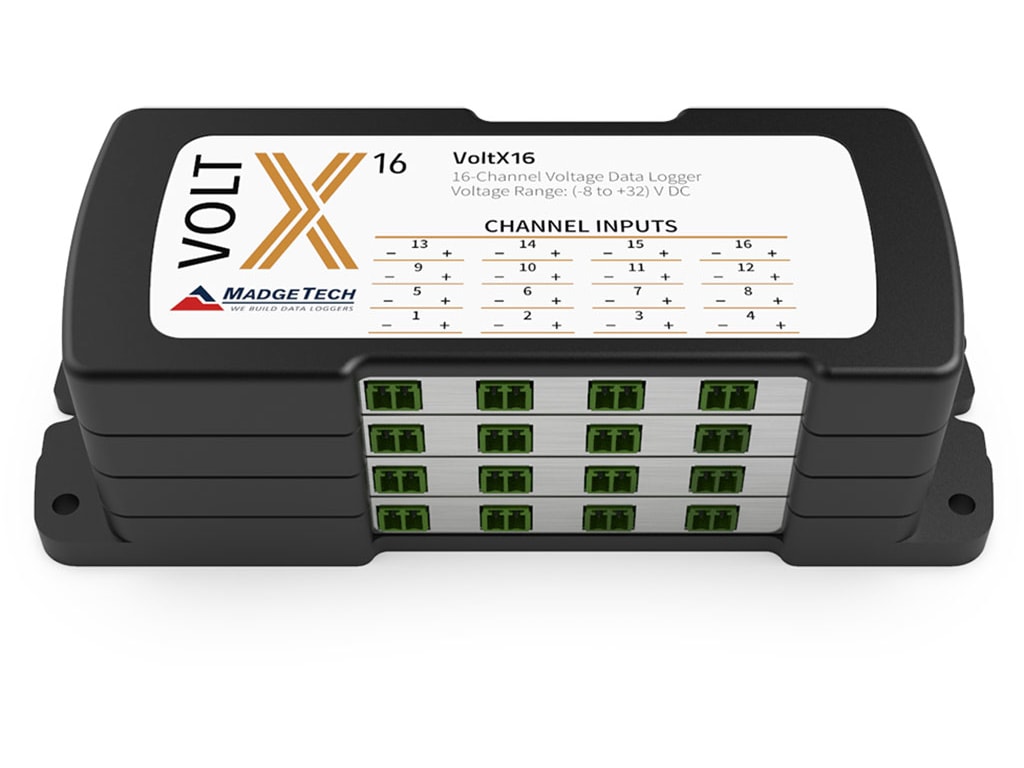

MadgeTech VoltX16 3.2V – 16-channel, DC Voltage Data Logger w/ 3.2V Range

• Channel: 16
• Range: 3.2V
• Real-time Operation
• Programmable Engineering Units
• 24-bit Readings Provide High Resolution
• Up to 4 Hz Reading Rate

The VoltX Series includes the VoltX4, VoltX8, VoltX12, and VoltX16 DC voltage data loggers and are available in three voltage ranges: 160 mV, 3.2 V, and 32 V.

The VoltX Series accepts voltage signals from sensors, transducers and many other common voltage sources. Capable of measuring and recording up to 2,794,836 readings, users have the option to enable or disable channels to maximize memory capacity. There’s no interface necessary, the VoltX Series uses standard USB-A to Micro USB cable.

Using the MadgeTech Software, starting, stopping and downloading from the VoltX Series data loggers are simple and easy. Graphical, tabular and statistical data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.
