Mark-10 15-1005 – MESUR™ Gauge Plus Software

• Acquire continuous or single-point data from force and torque measuring instruments and test stands
• MESUR™gauge Plus starts and stops models ESM303, ESM303H, and ESM1500 motorized test stands1, coordinating motion control and data collection with just one click
• Real-time tabular and graphical data acquisition of load vs. time or load vs. travel vs. time2
• Configurable start and stop test triggers (time, load, number of samples, or distance)
• Statistical calculations of acquired data. Automatically recalculates for custom data ranges

MESUR™gauge and MESUR™gauge Plus expand the functionality of force and torque measuring instruments and test stands. Both programs share the ability to capture and display data in graphical format for load vs. time or load vs. travel vs. time. MESUR™gauge Plus adds the ability to control the motion of Mark-10 motorized test stands, coordinating motion control and data acquisition.

The programs include a set of tools to analyze test results, including statistical calculations, quick data export to Microsoft Excel, customizable reports, pass/fail indicators and many others. Test setups are customizable and can be saved and recalled. The user can program test start and stop conditions, including load, time, distance, and sample break. Additional features include a large display screen for real-time load and travel data and a utility to configure certain Mark-10 gauges from a PC.

Built-in simulated data generation allows MESUR™gauge or MESUR™gauge Plus to be evaluated without an instrument.

The software may be downloaded from the links below. The software is free for 90 days from the date of installation and may be activated at any time in the field.

Hardware Requirements

• Windows XP or later operating system
• Minimum display resolution of 1108 x 758
• One or more USB or RS-232 ports

MESUR&TM gauge and MESURTM gauge Plus software are powerful and flexible data collection programs designed for use with Mark-10 instruments and test stands.

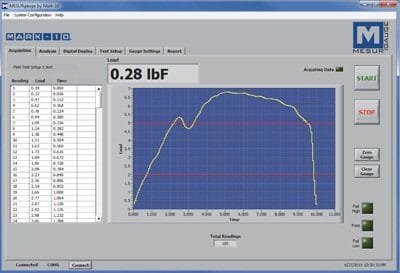

Start and stop data collection, and view real-time data in graphical and tabular formats.

With MESURTMgauge Plus, the START button also initiates the motion of an ESM303, ESM303H, or ESM1500 motorized test stand*, consolidating complete test control into just one click.

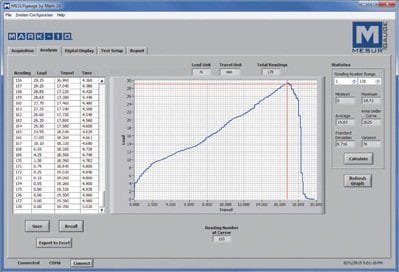

Sophisticated analysis tools include an x-y cursor, statistical calculations with automatic re-calculation for a customizable data range, export to Excel, and more.

View real time load and travel readings on an enlarged simulated instrument display.

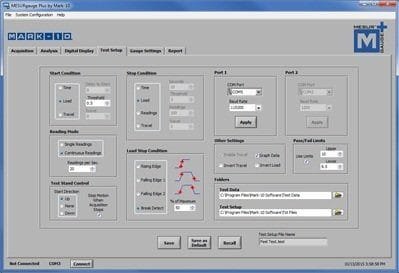

Configure test start and stop conditions.

With MESURTMgauge Plus, set the initial test stand crosshead direction upon starting the test.

High and low limit indicators help differentiate between an acceptable sample and a reject.

Easily customize reports and report templates.

A typical report, containing customizable information fields, statistics, graph, raw data, and date and time.

Mark-10 gauge/indicator settings can be configured through a simple interface.
