Mark-10 FS05-200 – Plug and Test Force Sensor, Tension/Compression, 200 lbF
22 people are viewing this product right now
Original price was: $1,450.00.$1,377.50Current price is: $1,377.50.
Shipping calculated at checkout.
Estimated delivery:5 days
Force sensor, 200 lbF / 3200 ozF / 100 kgF / 1000 N / 1 kN
- Capacity: 200 lbF
- Accuracy: ± 0.1% of full scale + indicator or test frame
- NIST-traceable certificate of calibration with data is included
- Measure tension and compression force
- Plug & Test family of interchangeable sensors and indicators (adapter required)
- Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
- Warranty: 3 years
Guarantee Safe and Secure Payment Checkout
Description
Mark-10 FS05-200
- Capacity: 200 lbF
- Accuracy: ± 0.1% of full scale + indicator or test frame
- Member of the Plug & Test® family of interchangeable sensors and indicators (adapter required)
- Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
- Warranty: 3 years
Plug and Test Force Sensor, Tension/Compression, 200 lbF

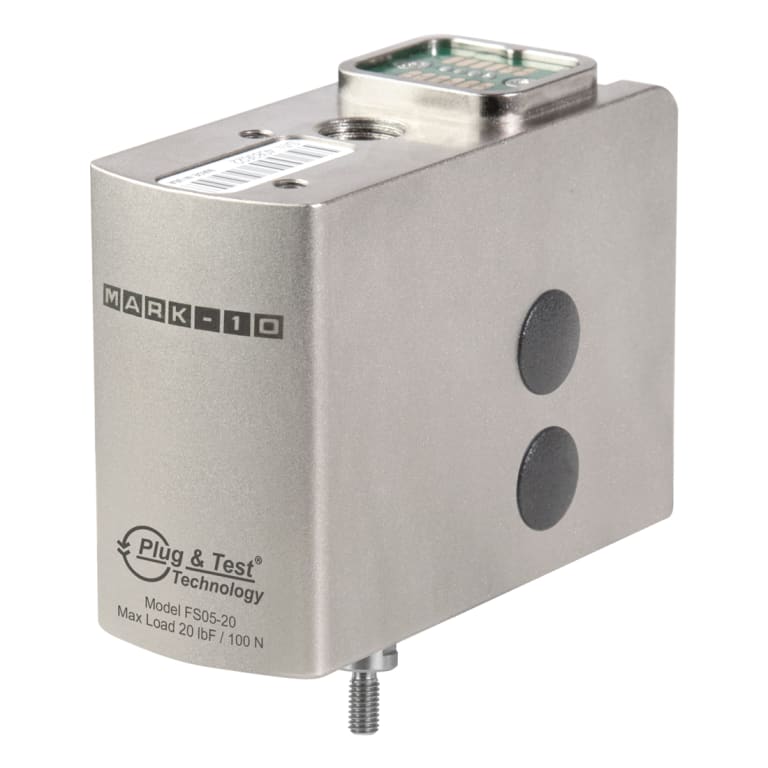

The Series FS05 force sensors measure tension and compression forces. They mount directly to the crosshead of models F105, F305, F505, and F505H test frames, for a clean, integrated look.
With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter: AC1083 required ). Ranges available from 0.12 to 500 lbF [0.5 N to 2.5 kN].
​
AC1084 Plug & Test® Extension cable
24 in. / 610 mm extension facilitates easier connection to a Model M5I or M7I indicator for calibration.
​
Series FS05 sensor is shown mounted to the crosshead of an F305 test frame, configured for a tensile test.
Force / Torque / Hardness Meters/Force Meter Template | |
|---|---|
| Capacity | 200 LBS |
| Resolution (Force) | 0.1 LBS |
| Accuracy | ±0.1% of full scale + indicator or test frame |
| Compression Option | Yes |
| Programmable | Yes |
| Memory Capability | Yes |
Product General Attributes | |
| Warranty | 3 YEARS |
| Product Weight | 2 LBS |
| Shipping Weight | 3 LBS |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Country of Origin | United States |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 2 lbs |
|---|
