Mark-10 M3i Basic Force / Torque Indicator
18 people are viewing this product right now
Original price was: $742.50.$705.37Current price is: $705.37.
Shipping calculated at checkout.
Estimated delivery:3 days
Basic Force / torque indicator, 110V
- Basic Force / torque indicator, 110V
- Interchangeable force and torque sensors through Plug & Test technology (sensors are sold separately)
- High-speed 2,000 Hz sampling rate
- USB data output of continuous or individual data points
- Ultra-compact size
- Large backlit graphic display
- Programmable set points with pass/fail indicators
- Live load bar graph with set point markers
- Peak readings and set points always displayed
- Configurable audio alarms and key tones
- Programmable auto-shutoff
- Configurable audio alarms and key tones
- Battery or AC operation
- MESURTM Lite data collection software included
- CE mark
Guarantee Safe and Secure Payment Checkout
Description

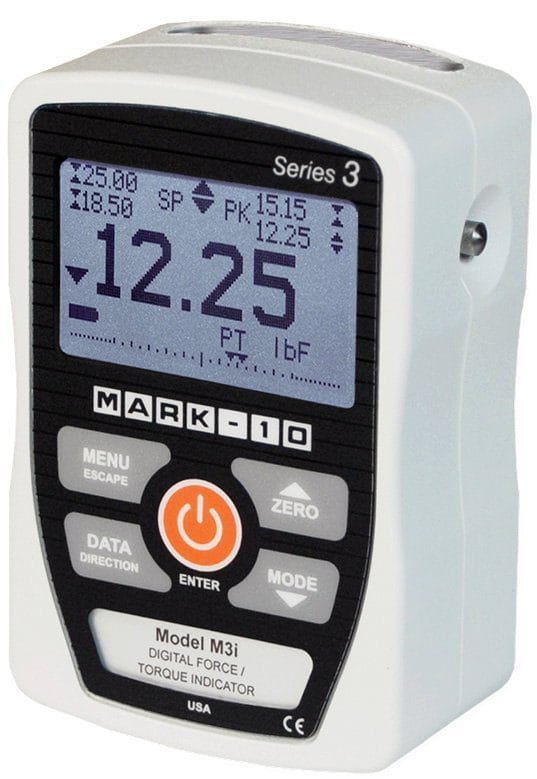

Mark-10 M3i Basic Force Torque Indicator
- Basic Force / torque indicator, 110V
- Interchangeable force and torque sensors through Plug & Test technology (sensors are sold separately)
- High-speed 2,000 Hz sampling rate
- USB data output of continuous or individual data points
- Ultra-compact size
The 3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with the advanced 5i force / torque indicator.
The 3i shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. The display also features an analog load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes.
The 3i includes MESUR Lite data acquisition software. MESUR Lite tabulates single point data. One-click export to Excel allows for further data manipulation.
Optional Equipment
- Includes mounting holes for bench mounting and angle adjustment.
- MESUR™ gauge Software – tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, generates reports, and more.
Dimensions
Force / Torque / Hardness Meters/Torque Instruments Template | |
|---|---|
| Engineering Units (Torque) | kgFm, kgFmm, lbFin, Ncm, Nm, ozin |
| Accuracy | ±0.2% of full scale |
| Battery Life | 24 HR |
Product General Attributes | |
| Unique Features | High-speed 2,000 Hz sampling rate USB data output of continuous or individual data points Large backlit graphic display Configurable audio alarms and key tones Live load bar graph with set point markers |
| Warranty | 3 YEARS |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Product Weight | 0.7 LBS |
| Product Height | 3.9 IN |
| Product Length | 1.5 IN |
| Product Width | 2.54 IN |
| Shipping Weight | 1 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9024.10.0000 |
| Calibration Included | Factory Calibration |
| Battery Type | Other |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Country of Origin | United States |
| Shipping Height | 3.30 IN |
| Shipping Length | 10.50 IN |
| Shipping Width | 7.50 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 0.7 lbs |
|---|---|
| Dimensions | 1.5 × 2.54 × 3.9 in |
