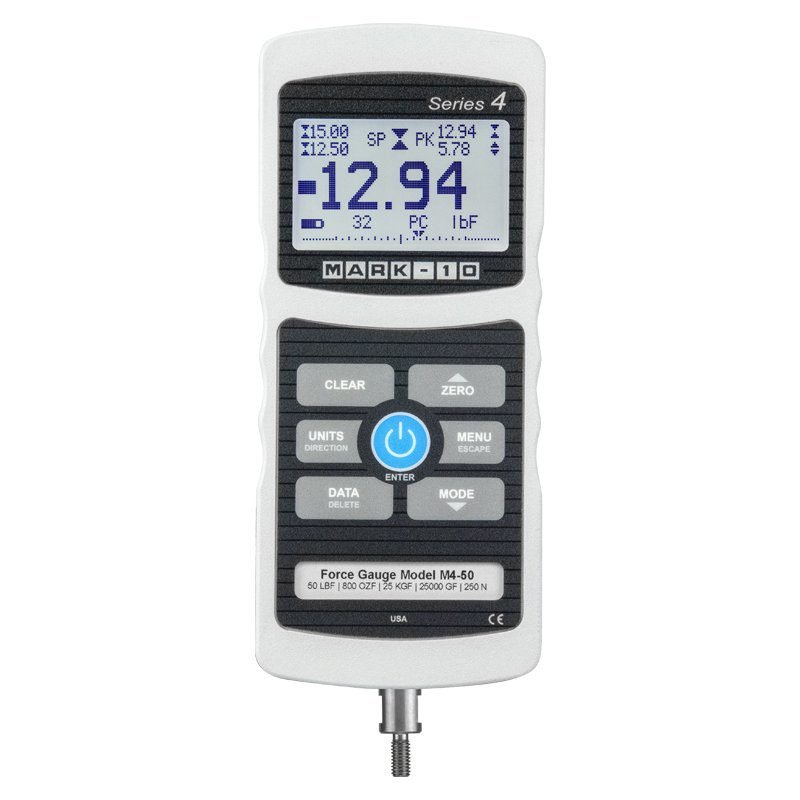

Mark-10 M4-100 – Advanced Digital Force Gauge, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N

• Force gauge, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N
• High-speed 3,000 Hz sampling rate

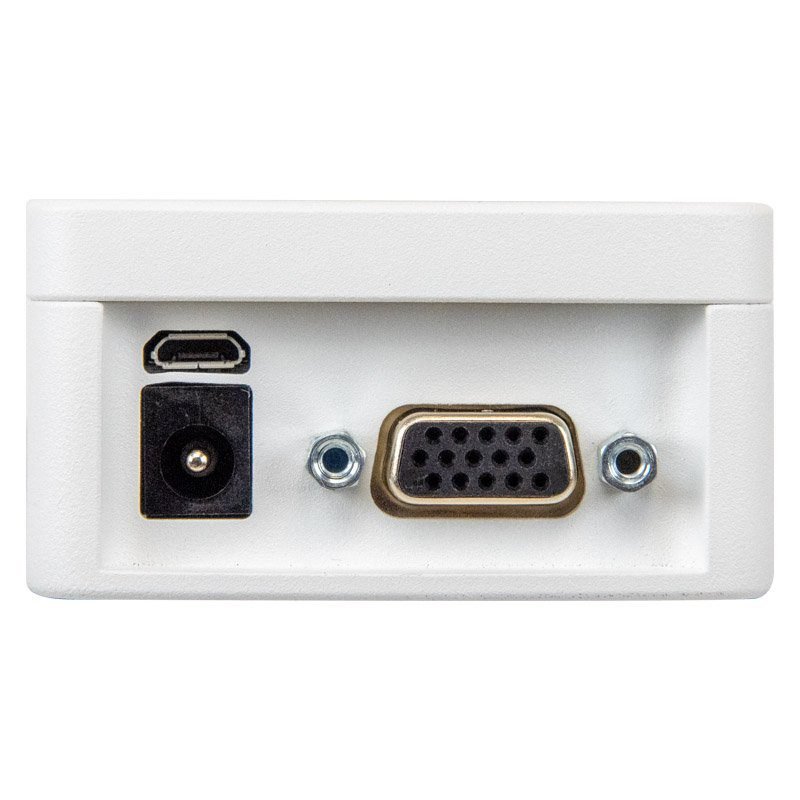

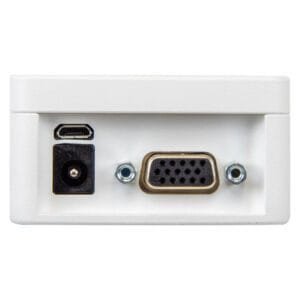

• USB, RS-232, Mitutoyo, and analog outputs
• Large backlit graphic display
• Password protection, configurable for individual keys and calibration

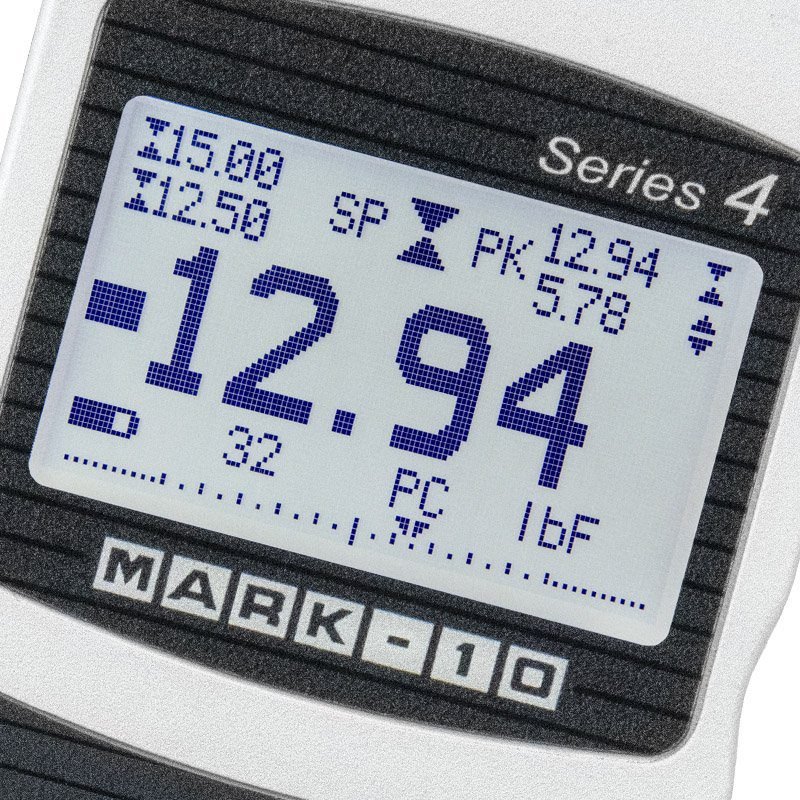

Series 4 digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). The gauges feature a sampling rate of 3,000 Hz, producing accurate results under a wide range of test conditions. Accuracy is ±0.2% of full scale, and resolution is 1/2000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

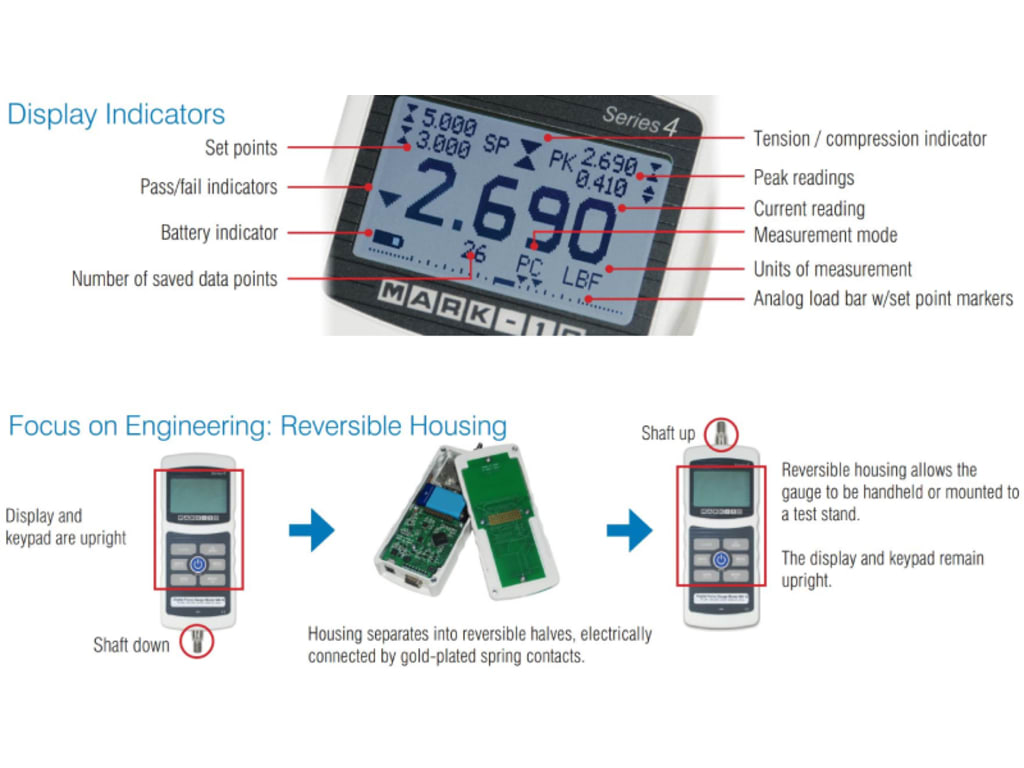

On-board data memory for up to 50 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 200% of capacity, and an analog load bar is shown on the display for a graphical representation of an applied force.

An ergonomic, reversible aluminum design allows for handheld use or test stand mounting for more sophisticated testing requirements. Series 4 digital force gauges are directly compatible with Mark-10 test stands, grips, and software. The force gauges are directly compatible with Mark-10 test stands, grips, and software.

The gauges include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single-point data. One-click export to Excel allows for further data manipulation.
