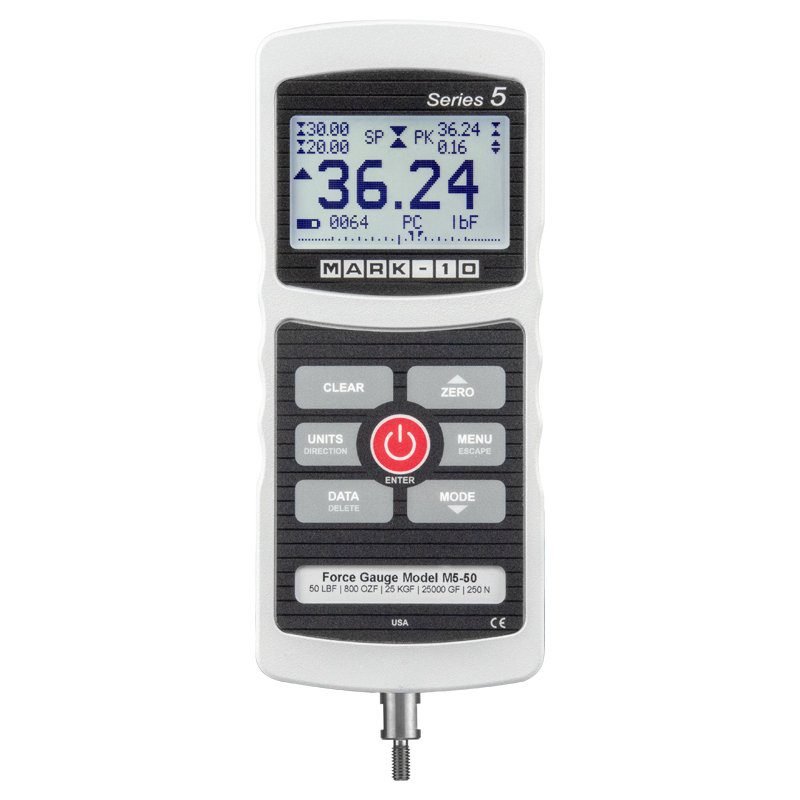

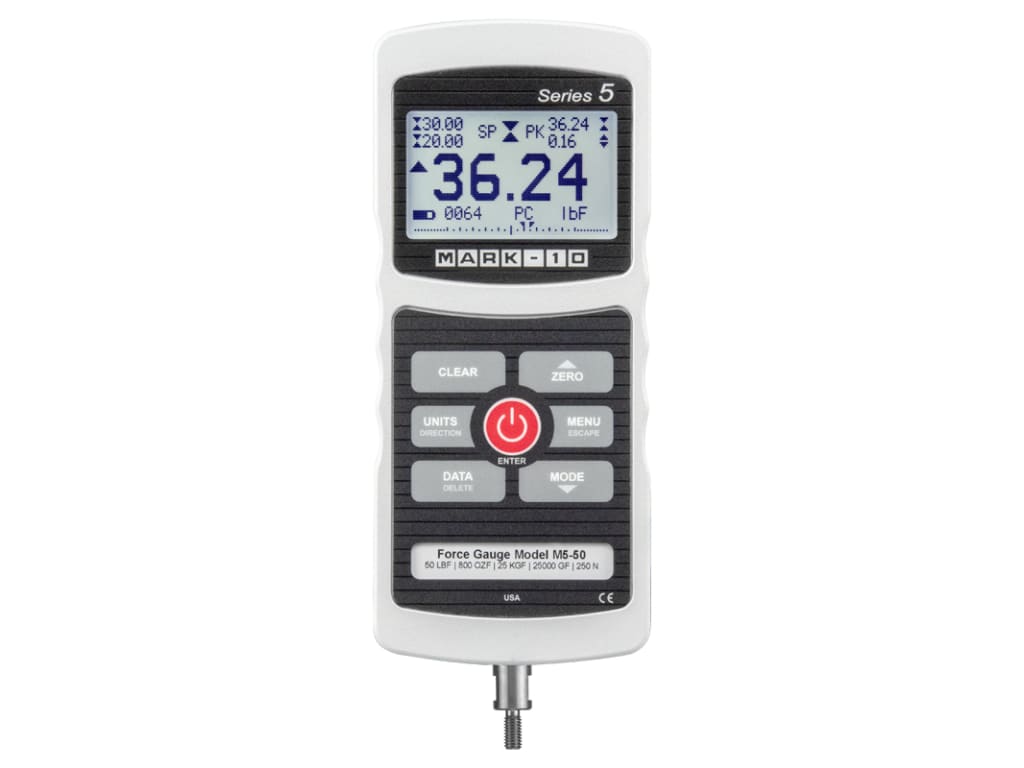

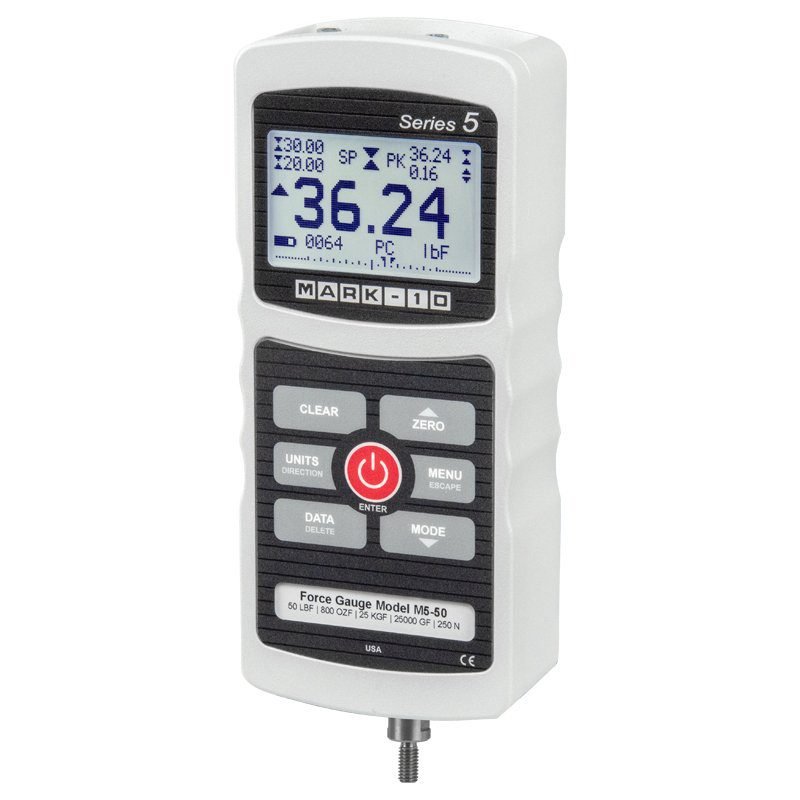

Mark-10 M5-10 – Digital Force gauge, 10 lbF / 160 ozF / 5 kgF / 5000 gF / 50 N

• Force gauge, 10 lbF / 160 ozF / 5 kgF / 5000 gF / 50 N
• Automatic data output via USB/RS-232
• 5 selectable units of measurement
• Configurable audio alarms and key tones
• Password protection, configurable for individual keys and calibration

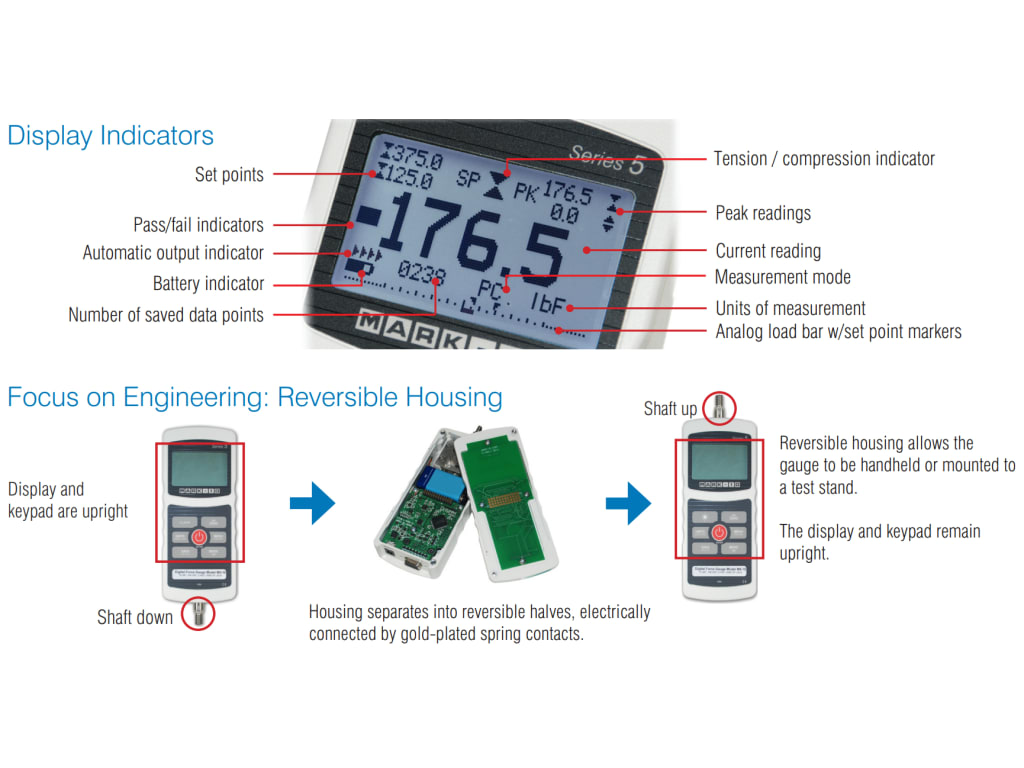

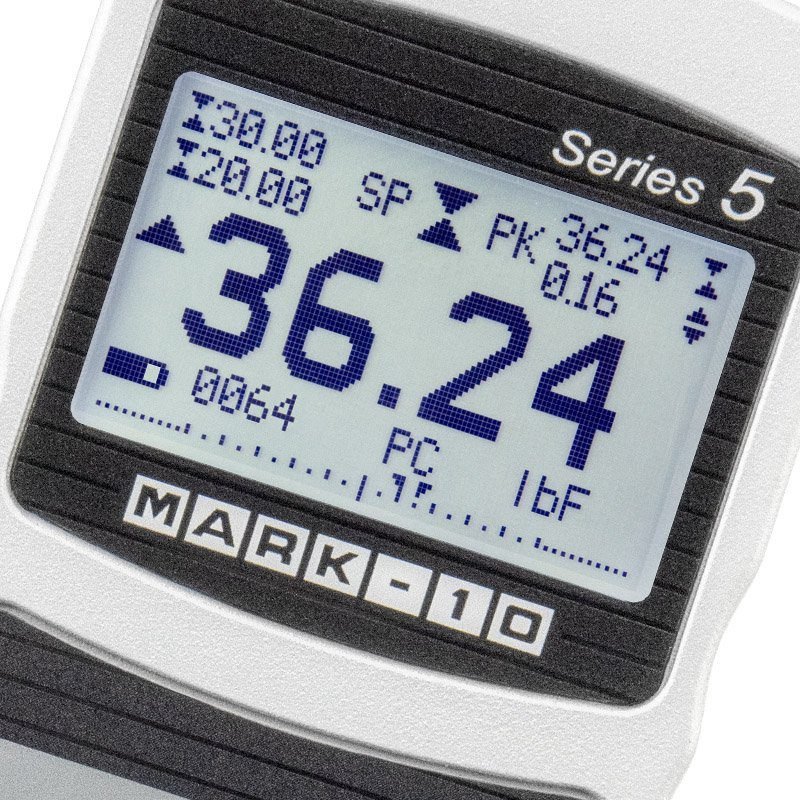

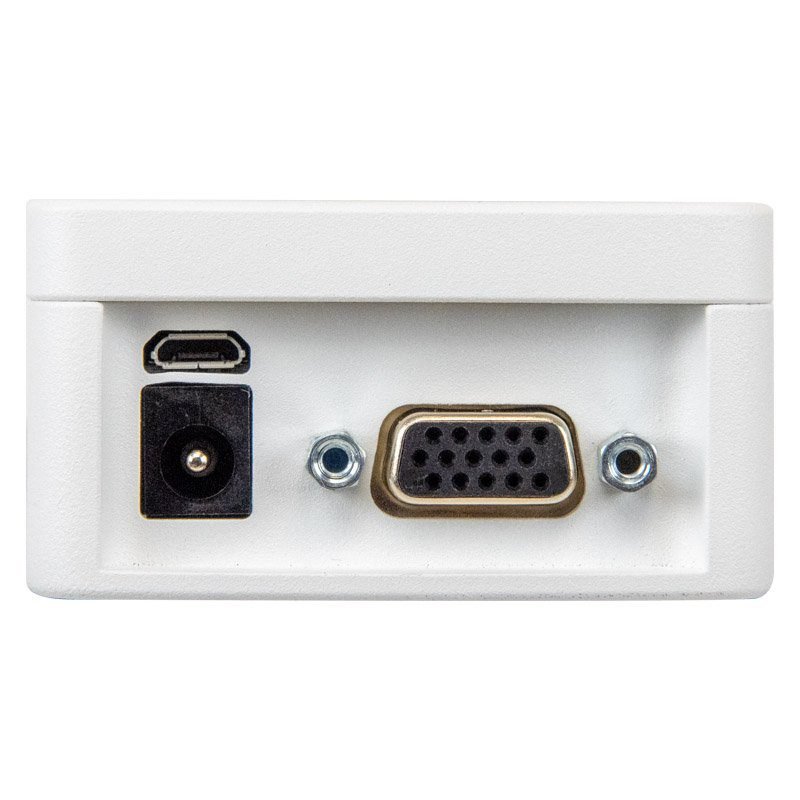

The Series 5 advanced digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 2,000 lbF (0.5 N to 10 kN). The gauges feature an industry-leading sampling rate of 7,000 Hz, producing accurate results even for quick-action tests. Accuracy is ±0.1% of full scale, and resolution is 1/5000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 1,000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 200% of capacity, and an analog load bar is shown on the display for a graphical representation of an applied force.

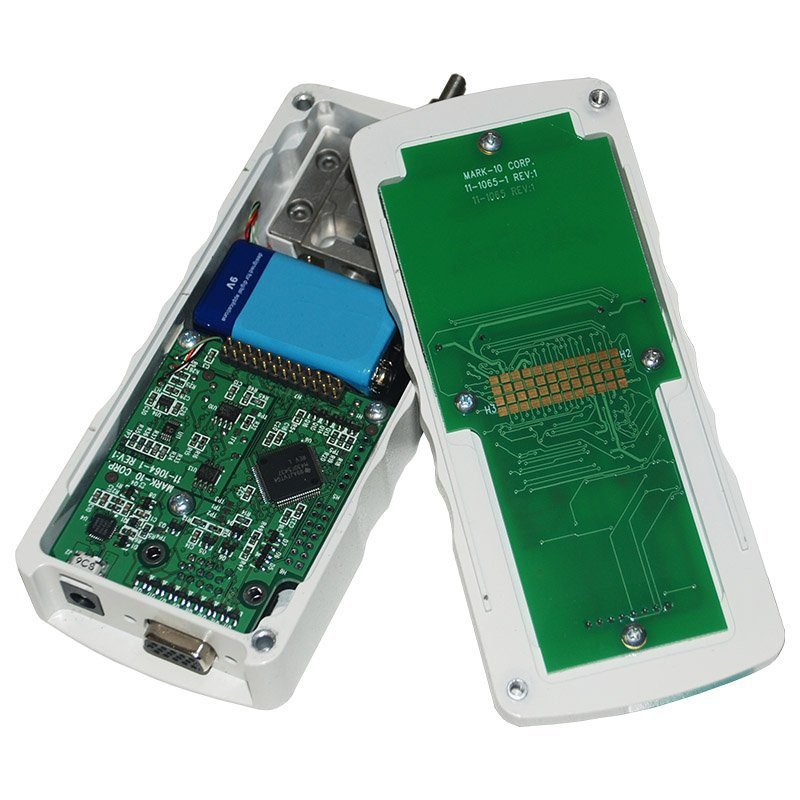

Series 5’s averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while the external trigger mode makes switch activation testing simple and accurate. An ergonomic, reversible aluminum design allows for handheld use or test stand mounting for more sophisticated testing requirements.

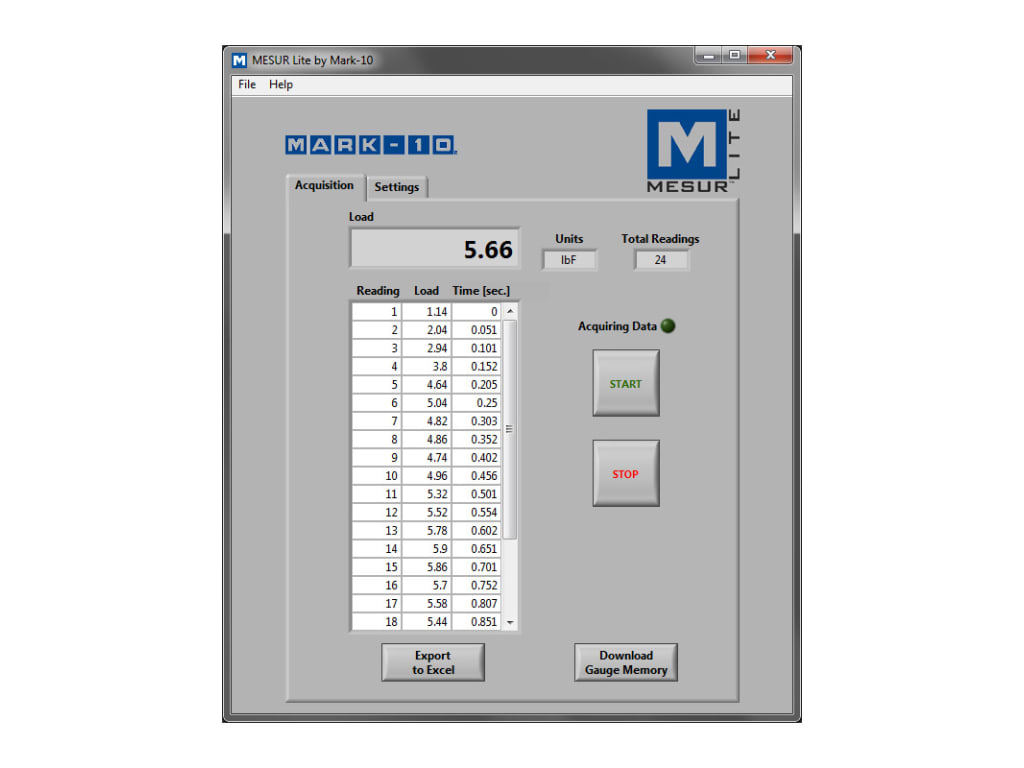

The gauges include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single-point data. One-click export to Excel allows for further data manipulation.
