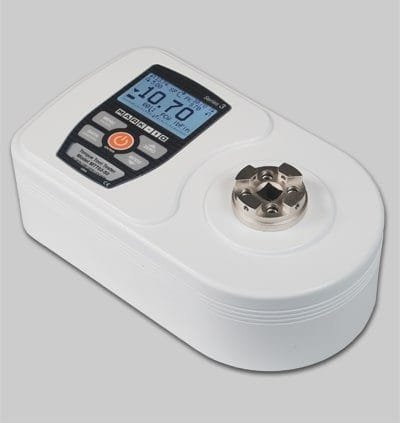

Mark-10 MTT02-12 Torque Tool Tester

Mark-10 MTT02-12 Torque Tool Tester, 12 lbFin / 192 ozFin / 14 kgFcm / 135 Ncm / 1.35 Nm

• 12 lbFin / 192 ozFin / 14 kgFcm / 135 Ncm / 1.35 Nm
• High-speed 7,000 Hz sampling rate accurately captures peak torque values
• 1,000-point data memory with statistics and outputs
• Programmable set point indicators and outputs for pass/ fail determination
• USB, RS-232, Mitutoyo, and analog outputs

Series TT02 Torque Tool Testers present a simple and accurate solution for testing manual and electric torque screwdrivers, wrenches, and other tools. These testers are compact and rugged, suitable for production environments. A universal 3/8” square receptacle accepts common bits and attachments. The TT02 captures peak torque in both measurement directions, and also calculates 1st and 2nd peaks, useful for click-type tools.

A blazingly fast sampling rate of 7,000 Hz and accuracy of ±0.3% produce reliable and consistent test results. The TT02 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output/zeroing/data storage upon tool slip or click, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.

Series TT02 testers include MESUR^TM Lite data acquisition software. MESUR^TM Lite tabulates continuous or single point data. Data stored in the TT02’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Note: Not for use with impact or pneumatic tools.

Dimensions
