Description

Mastercool 94103
- Manifold with Gauges only
- Pressure Range: Low-Pressure Range: -14.5 – 500 psi (-0.1 – 3.4 MPa); High-Pressure Range: -14.5 – 800 psi (-0.1 – 5.5 MPa)
- Compact black anodized aluminum block with matte chrome fittings offers an extremely portable solution to fit the needs of every busy technician
- Easily perform pressure/temperature calculations for up to 91 different refrigerants including R134a, R410a, and R22 refrigerants
- Unit conversion between MPa, kPa, bar, psi, kg/cm2, inHg

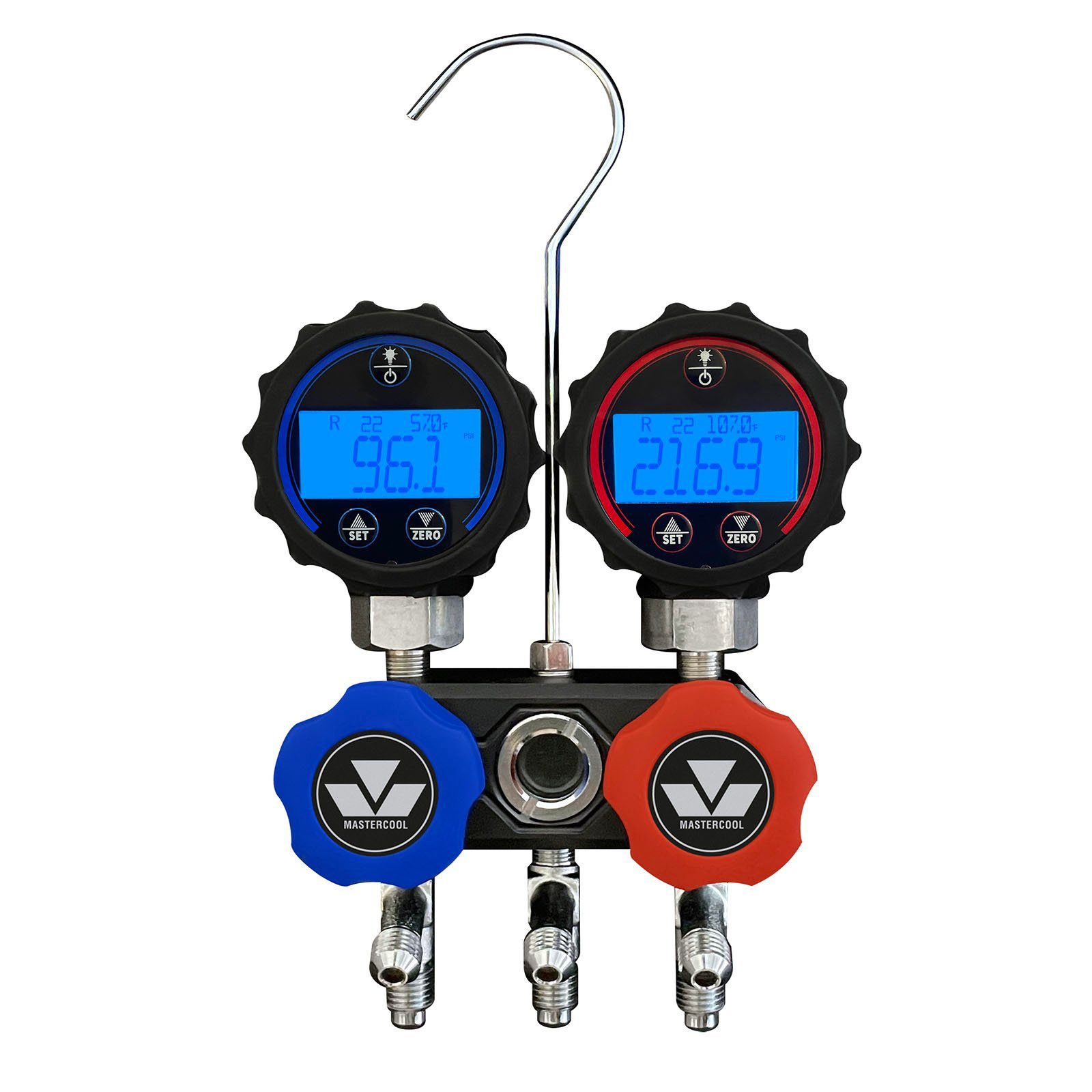

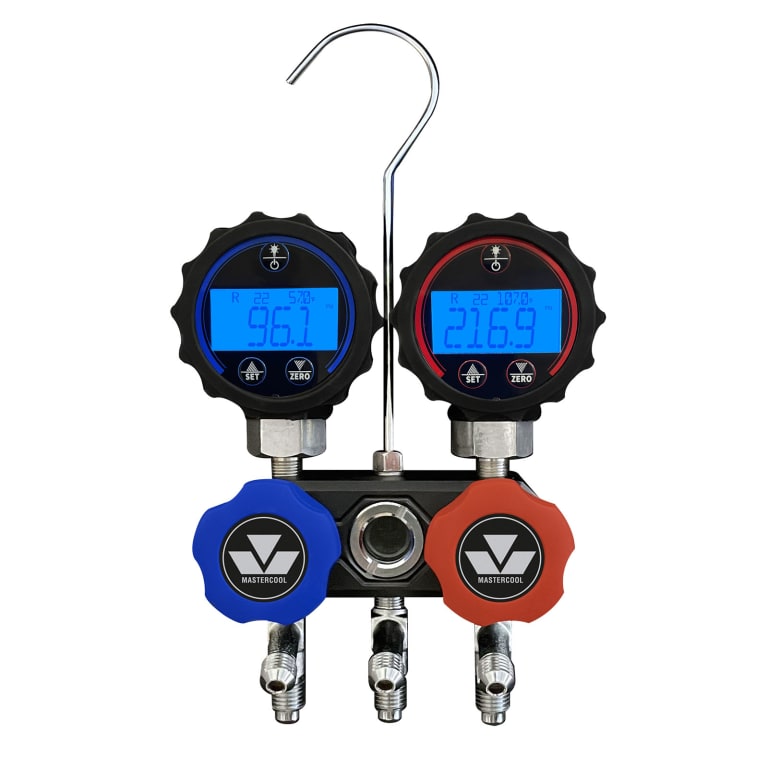

Black Series Mini-Fold Compact 2-Way Aluminum Manifold (Manifold with Gauges Only)
COMPACT MANIFOLD WITH FRONT-MOUNTED HOSE HOLDERS ALLOWS FOR PRECISE CALCULATIONS IN THE PALM OF YOUR HAND
Mastercool’s Black Series Compact 2-Way Digital Manifold Gauge Set effortlessly performs pressure and temperature calculations and displays them on a large blue backlit LCD display. Constructed of the finest materials and machined with precision to the highest quality standards this compact manifold provides automatic shut-off, unit conversion, over-range alarm, max and min values, and refrigerants selection providing a powerful tool for the hard-working technician.
INCLUDED REFRIGERANTS:
R11, R113, R114, R115, R116, R12, R123, R1234yf, R1234ze, R124, R125, R13, R134a, R14, R141B, R142B, R413A, R152A, R161, R170, R21, R218, R22, R23, R290, R32, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R406A, R407A, R407B, R407C, R407D, R407E, R407F, R408A, R409A, R409B, R41, R410A, R410B, R412A, R413A, R414A, R414B, R415B, R416A, R417A, R419A, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R423A, R427A, R437A, R441A, R442A, R443A, R444A, R448A, R449A, R449B, R450A, R452A, R455A, R50, R500, R502, R503, R504, R507A, R508A, R508B, R509A, R513A, R600, R600a, R601, R601a, R740, R744
Series Guide:
HVAC Compact 2-Way Manifold
| Model | Application | What’s included |
| 94103 | HVAC | Manifold with gauges only in a cardboard box |
| 94661 | HVAC | 60-inch high-pressure hoses (x3), carry case |
| 94261 | HVAC | 60-inch high-pressure hoses with ball valves (x3), carry case |
| 94261-JT | HVAC | 60-inch high-pressure hoses with in-line ball valve (x3), carry case |
R134a Compact 2-Way Manifold
| Model | Application | What’s included |
| 84103 | R134a | Manifold with gauges only in a cardboard box |
| 84472 | R134a | 72-inch hoses (x3), R134a manual couplers (82834, 82934), carry case |
R1234yf Compact 2-Way Manifold
| Model | Application | What’s included |
| 82103 | R1234yf | Manifold with gauges only |
| 82172 | R1234yf | 72-inch hoses (x3), R1234yf manual couplers (83834, 83934), carry case |
Product General Attributes | |
|---|---|
| Warranty | 1 YEARS |
| Shipping Weight | 1.00 LBS |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
