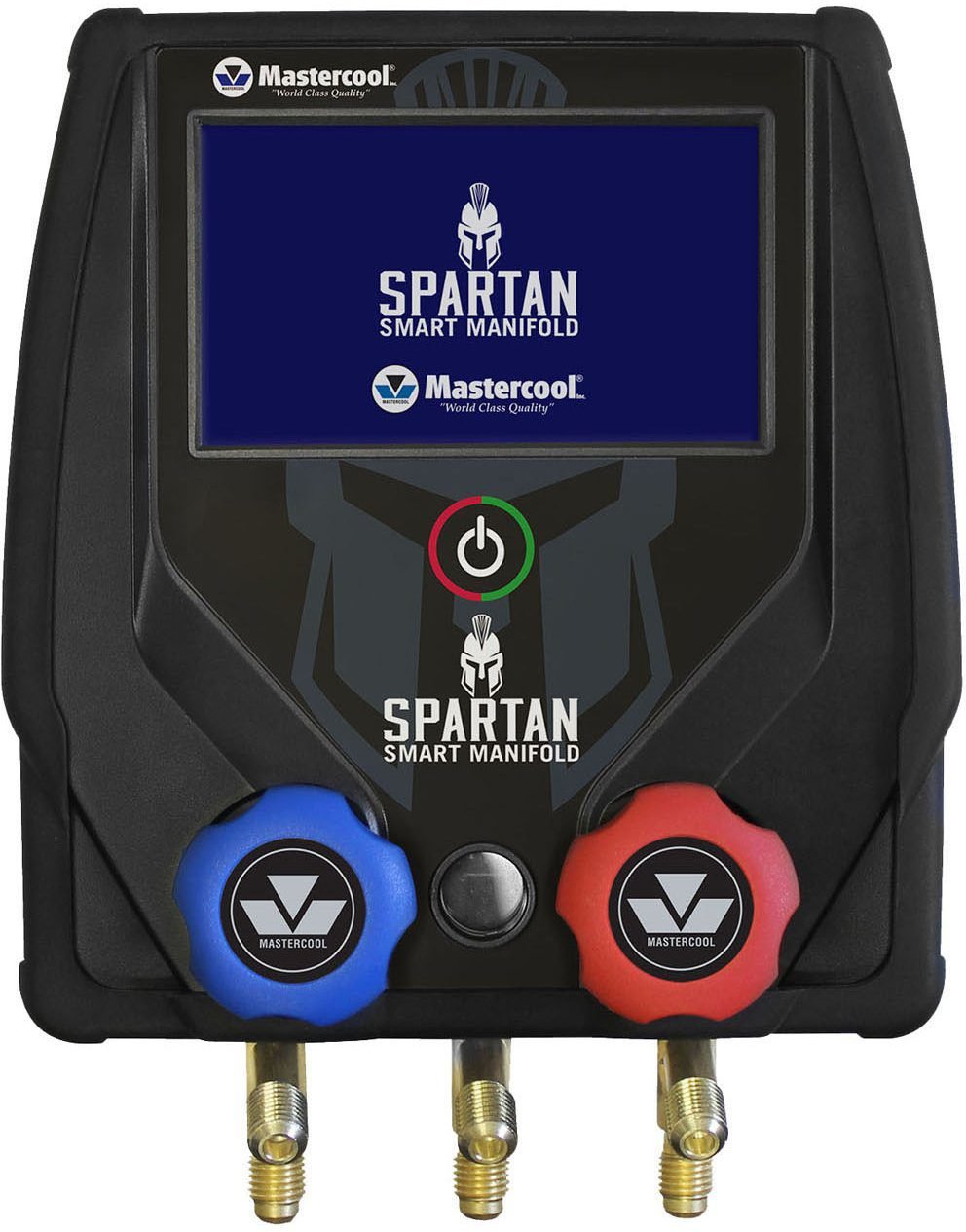

Mastercool 99923-BT – SPARTAN Smart Manifold (2 Way – Manifold Only)

• 2 way manifold
• Without temperature clamps
• Without hoses
• Displays pressure, vacuum, and temperature, and will automatically calculate superheat and subcooling
• 4.3″ color touchscreen provides easy navigation with the touch of a finger

Mastercool introduces the new SPARTAN series smart manifold with Bluetooth wireless technology. This smart manifold is equipped with a 4″ color touchscreen LCD, allowing the user to navigate through all of the screens and options with a quick slide of their finger. Now with a built-in premium vacuum sensor and an accuracy down to 1 micron, there is no need for additional equipment to properly diagnose and service your A/C system.

Offered in 2-way and 4-way options, this manifold will display pressure, vacuum, temperature, and will automatically calculate your superheat and subcool. Both models include data logging and will offer additional features such as leak test timers and alarms but that’s not all! In conjunction with this manifold will be the ability to download our free Mastercool Connect app, which will provide full mobility as activity can be easily viewed on all compatible hand-held devices. This will allow for endless amounts of data collection and diagnostics at your fingertips.

Several versions available

Mastercool offers several versions of its SPARTAN manifold. These are built as either 2 or 4-way and come with a variety of accessories including temperature clamps, and refrigerant and vacuum hoses. The chart below provides an overview of each:

Mastercool Connect App

The Mastercool Connect App is available for free on both the App Store and Google Play.

Simply download the free Mastercool Connect app to begin receiving and analyzing data from any nearby Mastercool Spartan Smart Manifold.

Use the Spartan Smart Manifold and the Mastercool Connect App to:

• Provide all of the manifold’s data remotely. Sit back in a comfortable location and watch the system’s performance.
• Leak test for both pressure and vacuum. Check on the test’s progress while performing other tasks away from the unit.
• Datalog the system’s performance for up to 36 hours. Save all of the values of the system’s performance throughout the day and overnight without having to manually record them. The app gives you a way to download the information from the manifold and forward the file to your favorite spreadsheet program for analysis.

Product Features

The image below highlights several main features of the SPARTAN series.

Note: this image shows a 4 way manifold, as well as optional items. Please refer to the chart above for package contents.
