Mecmesin 850-610 – VFTI Touchscreen Force and Torque Indicator

• Max and 1st Peak mode
• Graphing mode
• Fast internal sampling at 5MHz
• Visual pass/fail alarms
• Overload warning

A powerful and versatile touchscreen display unit for use with Mecmesin’s ‘Smart’ range of interchangeable force and torque sensors. Ideal for testing where high accuracy and flexibility are key requirements.

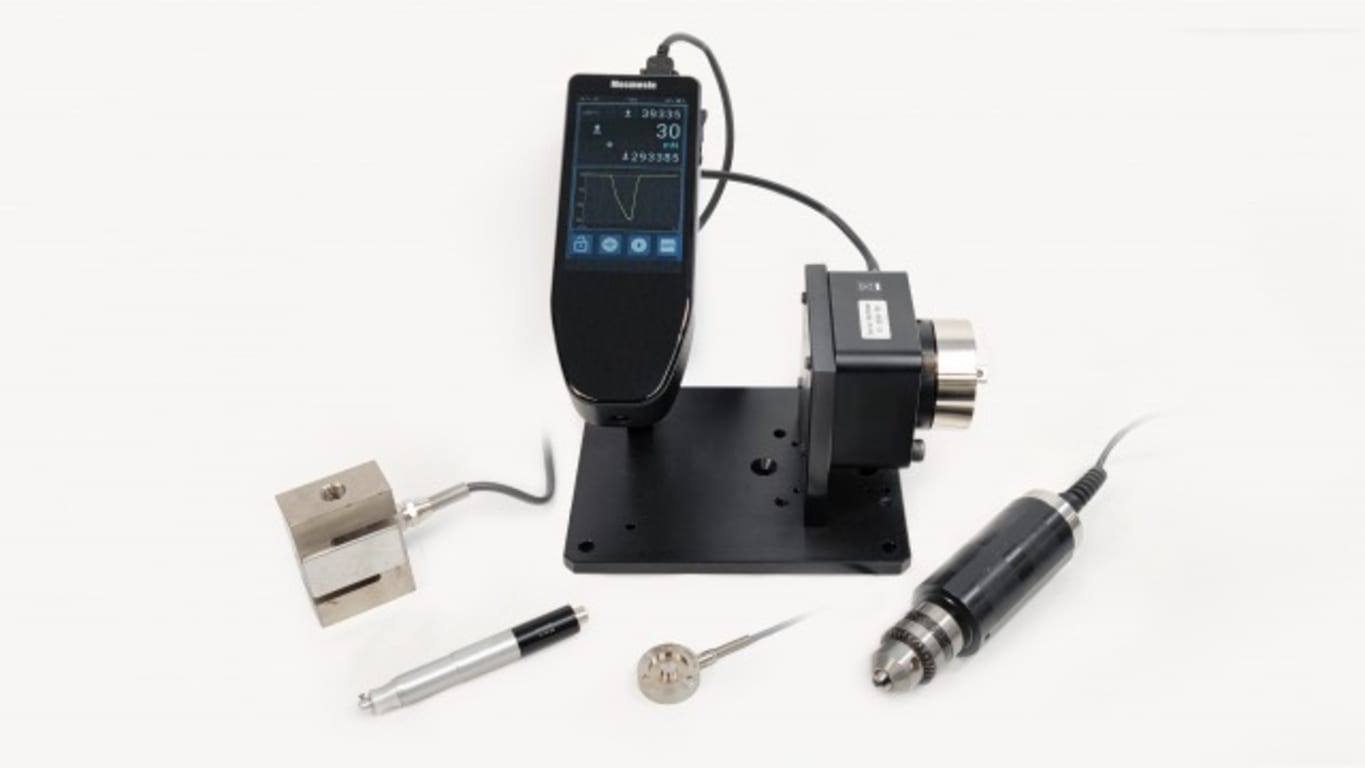

The VFTI, powered by Vector OS, instantly recognises the connected sensor and can be employed as a handheld device for testing on the move or it can be integrated into your own test rig as the core measurement device.

The VFTI offers enhanced measurement features and data analysis capabilities:

• Max and 1st Peak mode – register the key values from the test
• Graphing mode – generate a live curve on the display to help identify critical events during the test
• Fast internal sampling at 5MHz enables a data-acquisition rate of 2,000 times per second – ensures sudden break-force readings are captured accurately
• Visual pass/fail alarms – alert operators immediately when testing
• Overload warning – minimise the risk of accidental damage to the connected sensors.
• Statistical summary – store displayed readings to a built-in memory for statistical analysis within the VFTI
• Expandable external memory – save all the raw data-points on a 32GB micro-SDHC card so you can test rapidly now and download results later
• Output data directly to a PC or printer for further analysis

With its rugged housing being machined from lightweight aluminium and powered by a built-in rechargeable lithium-ion battery., the ergonomic VFTI is ideal for use as a portable test device both indoors and outdoors. It can also be integrated into your own test rig as the core measurement device for applications in production, quality-control or in research and development.

Our touchscreen instruments are powered by Vector OS, Mecmesin’s technology platform for its latest force and torque test equipment. It delivers intuitive and customisable user interfaces, as well as advanced data acquisition and analysis.

To enhance your testing power you can connect all Vector instruments to a computer and use Mecmesin’s VectorPro Lite software for data plotting and reporting.
