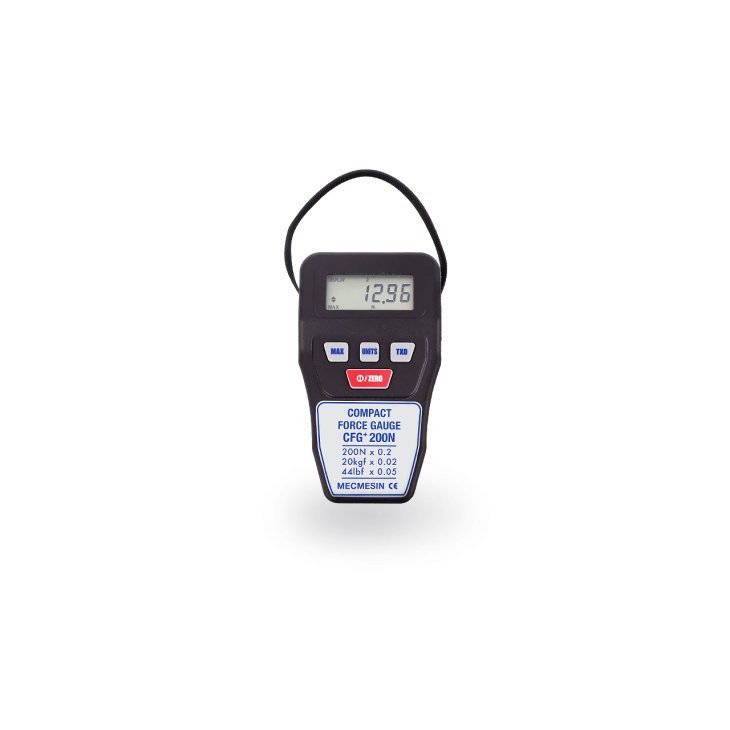

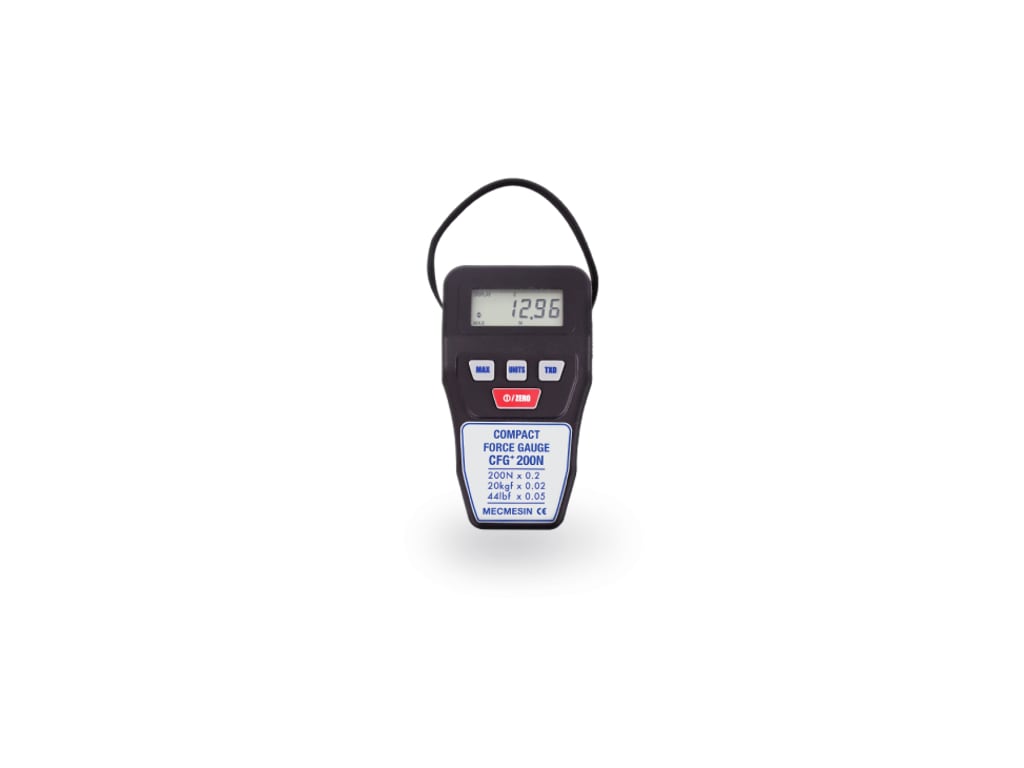

Mecmesin CFG+ 200 – Compact Force Gauge, 44 x 0.05 lbf
44 people are viewing this product right now
$668.80
Shipping calculated at checkout.
Estimated delivery:3 days
Compact Force Gauge, 44 x 0.05 lbf
- Resolution: 44 x 0.05 lbf
- Accuracy: ±0.5 % of full scale
- Units of measurement: mN, N, kN, gf, kgf, ozf, lbf
- Sampling Rate: 500 Hz
- Overload Rating: 150% of the full scale
Guarantee Safe and Secure Payment Checkout
Description
Mecmesin CFG+ 200
- Resolution: 44 x 0.05 lbf
- Accuracy: ±0.5 % of full scale
- Units of measurement: mN, N, kN, gf, kgf, ozf, lbf
- Sampling Rate: 500 Hz
- Overload Rating: 150% of the full scale
Compact Force Gauge, 44 x 0.05 lbf
The Compact Force Gauge+ (CFG+) is a pocket-sized, lightweight force gauge designed for elementary tension and compression measurement. Powered by disposable AA batteries, the CFG+ is delivered with a Declaration of Conformity as standard.
The CFG+ provides a simple digital alternative to traditional analog spring balances. It is ideal for users with a limited budget, who only measure on an occasional basis for non-critical applications.
The CFG+ digital force gauge represents an extremely affordable alternative to mechanical gauges.
Manufactured in a lightweight ABS plastic housing, the CFG+ has a simple keypad and comes equipped with RS232 output for easy data transmission.
Its primary use is as a hand-held device but its design makes it attachable to manual tests stands for more controlled testing. An overload warning function, to reduce the risk of accidental damage to the instrument by an operator, is standard on all models.
CFG Series Comparison Table
| Model | Part No. | N | kgf | lbf |
| CFG+ 50 | 860-021 | 50 x 0.05 | 5 x 0.005 | 11 x 0.01 |
| CFG+ 200 | 860-022 | 200 x 0.2 | 20 x 0.02 | 44 x 0.05 |
| CFG+ 500 | 860-023 | 500 x 0.5 | 50 x 0.05 | 110 x 0.1 |
Force / Torque / Hardness Meters/Force Meter Template | |
|---|---|
| Accuracy | ±0.5% of the full scale |
| Sampling Rate (Force) | 500 Hz |
| Compression Option | Yes |
Product General Attributes | |
| Warranty | 2 YEARS |
| Product Weight | 0.55 LBS |
| Product Height | 5.23 IN |
| Product Length | 1.22 IN |
| Product Width | 3 IN |
| Shipping Weight | 0.63 LBS |
| Battery Type | Other |
| Shipping Height | 6.01 IN |
| Shipping Length | 1.40 IN |
| Shipping Width | 3.45 IN |
You must be logged in to post a review.
Manuals/Guides
Brochures
| Weight | 0.55 lbs |
|---|---|
| Dimensions | 1.22 × 3 × 5.23 in |
