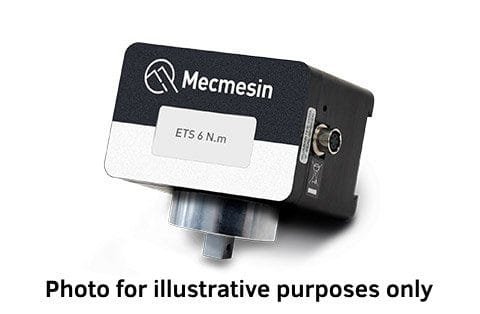

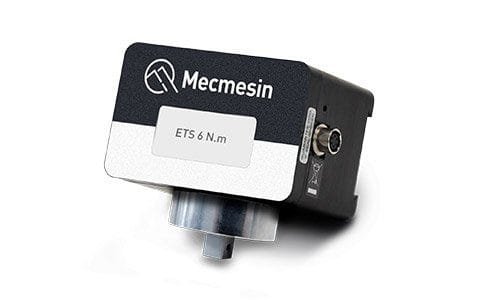

Mecmesin ETS 10 – Enhanced Torque Sensor for VortexPro, 10 N.m

• Interchangeable Enhanced Torque Sensor (ETS)
• For use with VortexPro test systems
• Capacity: 10 N.m / 100 kgf.cm / 90 lbf.in
• Accuracy: ±0.5% of the sensor capacity
• 3/8-inch male square drive for connection to grips and test fixtures

The Mecmesin Enhanced Torque Sensors (ETS) range of interchangeable torque sensors is specially adapted to the HelixaPro and VortexPro test systems. This model, the ETS 10, has a capacity of 10 N.m / 100 kgf.cm / 90 lbf.in. It is not recommended for use with the HelixaPro.

The ETS torque sensors plug into the frame of the precision torque tester and their calibration characteristics are immediately recognized by the software without any input from the operator.

There are eight different sensors available to ensure you have the optimum selection to meet your torque testing needs. All sensors measure from zero to its full nominal capacity (listed in the table below). They have outstanding measurement accuracy at ±0.5% of the sensor capacity.

*Not recommended for VortexPro

**Not recommended for HelixaPro

A range of grips, fixing tables and chucks is available to hold your specimens (sold separately). Connection to each ETS sensor is via a 3/8-inch male square drive (ETS 0.3 – 10) or via a 1/4-inch female hexagonal drive (ETS 0.1 – 0.2).
