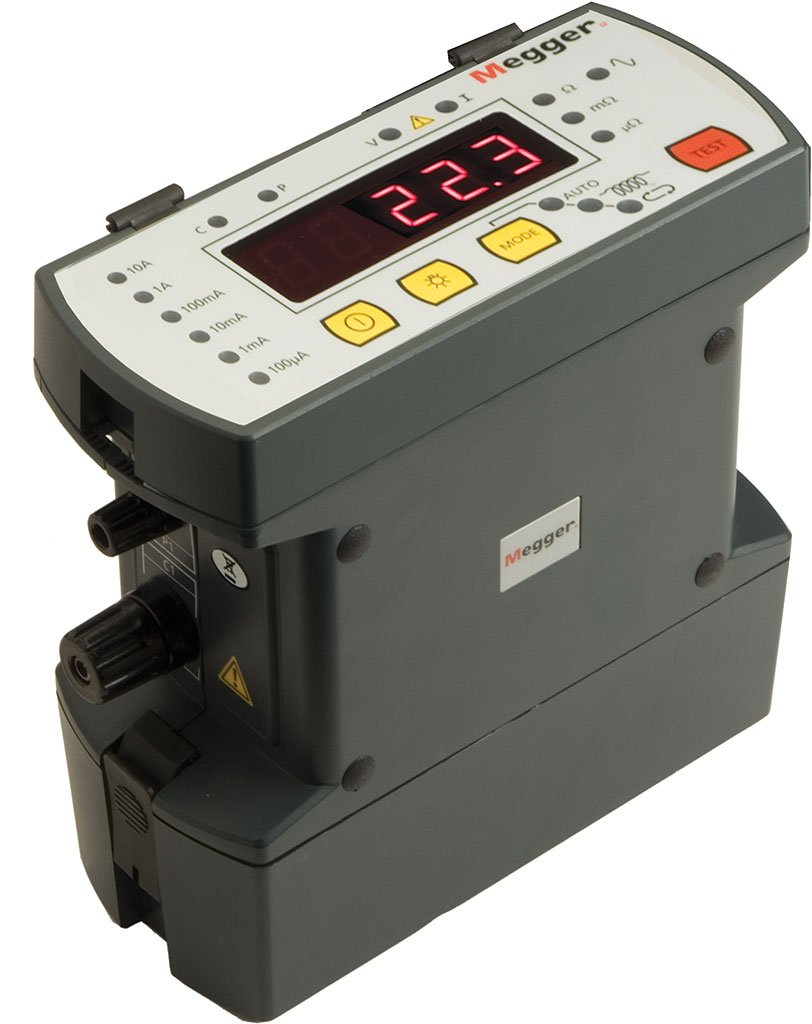

Megger DLRO10 – Digital Low Resistance Ohmmeter
45 people are viewing this product right now
$4,640.00
Shipping calculated at checkout.
Estimated delivery:3 days
Digital Low Resistance Ohmmeter – 10A – With DH4-C Modular Duplex handspike set (1006-444), one with indicator lights. 1.5m ~ 5ft.
- Digital Low Resistance Ohmmeter with DH4-C Modular Duplex handspike set
- Accurate results in under three seconds
- Auto current reversal cancels standing EMFS
- Fuse protected to 600 V
- NiMH battery reduces weight
- 250 mW power limit (with optional override) to avoid heating the test sample
- Automatically detects continuity in potential and current connections
- Visible warning of high voltages present at the terminals
- Visible warning of current flowing in the test sample
- Multiple operating modes including fully automatic
Guarantee Safe and Secure Payment Checkout
Description
Megger DLRO10 – Digital Low Resistance Ohmmeter
Digital Microhmmeter
- 250 mW power limit (with optional override) to avoid heating the test sample
- Automatically detects continuity in potential and current connections
- Visible warning of high voltages present at the terminals
- Visible warning of current flowing in the test sample
- Multiple operating modes including fully automatic
The Megger DLRO10 NLS Ducter Ohmmeter brings new standards to low resistance measurement. Both are fully automatic instruments, selecting the most suitable test current, up to 10 A dc to measure resistance from 0.1 µΩ to 2000 Ω on one of seven ranges. For users who desire more control over the measurement process, DLRO 10X uses a menu system controlled by a two-axis paddle to allow manual selection of the test current. DLRO10X also adds real-time download of results and on-board storage for later download to a PC.
Both instruments are built into a strong, lightweight case that is equally at home in the field or in the laboratory. Light enough to be worn around the neck, they are small enough to be taken into areas which were previously too small to access. DLRO 10 uses a large, bright 4-1/2-digit LED display while DLRO 10X has a large, backlit LCD display.
Duplex connect test leads
- Carry one lead set and swap terminations
- Simple push and twist for a quick change
- Lockable twist cap secures the leads
- Extension leads available
The Megger DLRO duplex connect four terminal test lead system is designed to provide the most cost effective and convenient way to provide the user with all off the test lead terminations and lead lengths required for the many different applications encountered in low resistance testing.
At the centre of this unique test lead system is a bespoke connector allowing terminations such as kelvin clips or duplex test probes to be changed as required.
Option mains / Line power supply unit
The DLRO10 and DLRO10X may be also powered from an optional mains / line power supply unit the DLRO10LPU. This unit is simply fitted to the instrument in place of the standard battery pack.
When in use a red LED is illuminated when the instrument is powered from a mains / line power supply.
The DLRO10X is seen here fitted with the optional DLRO10LPU.
The DLRO10X will particularly benefit providing the ability to store test results with memos whilst powered from a mains / line supply. Ideal for repetitive testing applications such as manufacturing production line use.
Application
The needs for accurate low resistance measurement are well known and very diverse. They range through Goods Receiving inspection of components to ground bonding and welded joints. Typical applications include, but are not limited to, making d.c. resistance measurements of:
- Switch and contact breaker resistance
- Busbar and cable joints
- Aircraft frame bonds and static control circuits
- Integrity of welded joints
- Inter-cell connections on battery systems up to 600 V peak
- Quality control of resistive components
- Transformer and motor winding resistance
- Rail and pipe bonds
- Metal alloys, welds and fuse resistance
- Graphite electrodes and other composites
- Wire and cable resistance
- Transmitter aerial and lightning conductor bonding
Micro / Milli / Meg Ohmmeters/Micro-Ohmmeter / DLRO / Bond Testing Template | |
|---|---|
| Style (Micro-Ohmmeter) | Portable |
| Maximum Test Current | 10 A |
| Variable Test Current | Yes |
| Min Resistance | 0.1 u Ohms (0.00010 m Ohms) |
| Max Resistance (ohm) | 1999.9 Ohms |
| Alarm | No |
| Temperature Compensation | No |
| Line Power or Battery power | Battery Power, Line Power |
| Kelvin Four-Terminal Measurement | Yes |
Product General Attributes | |
| Unique Features | Modes: Manual, Auto, Continuous, High Power. LED display. |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Product Weight | 6 LBS |
| Product Height | 9.5 IN |
| Product Length | 8.5 IN |
| Product Width | 4 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030332090 |
| ECCN Number | EAR99 |
| Calibration Included | |
| Battery Type | NimH |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | United Kingdom |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsApplication NotesMSDS Sheet
| Weight | 6 lbs |
|---|---|
| Dimensions | 8.5 × 4 × 9.5 in |
