Megger MET1000 – All in One True RMS Electrical Tester

Megger MET1000 – All in One True RMS Electrical Tester

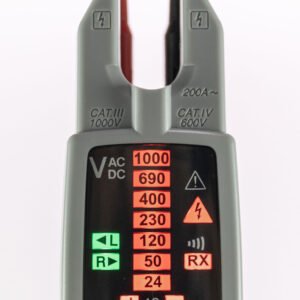

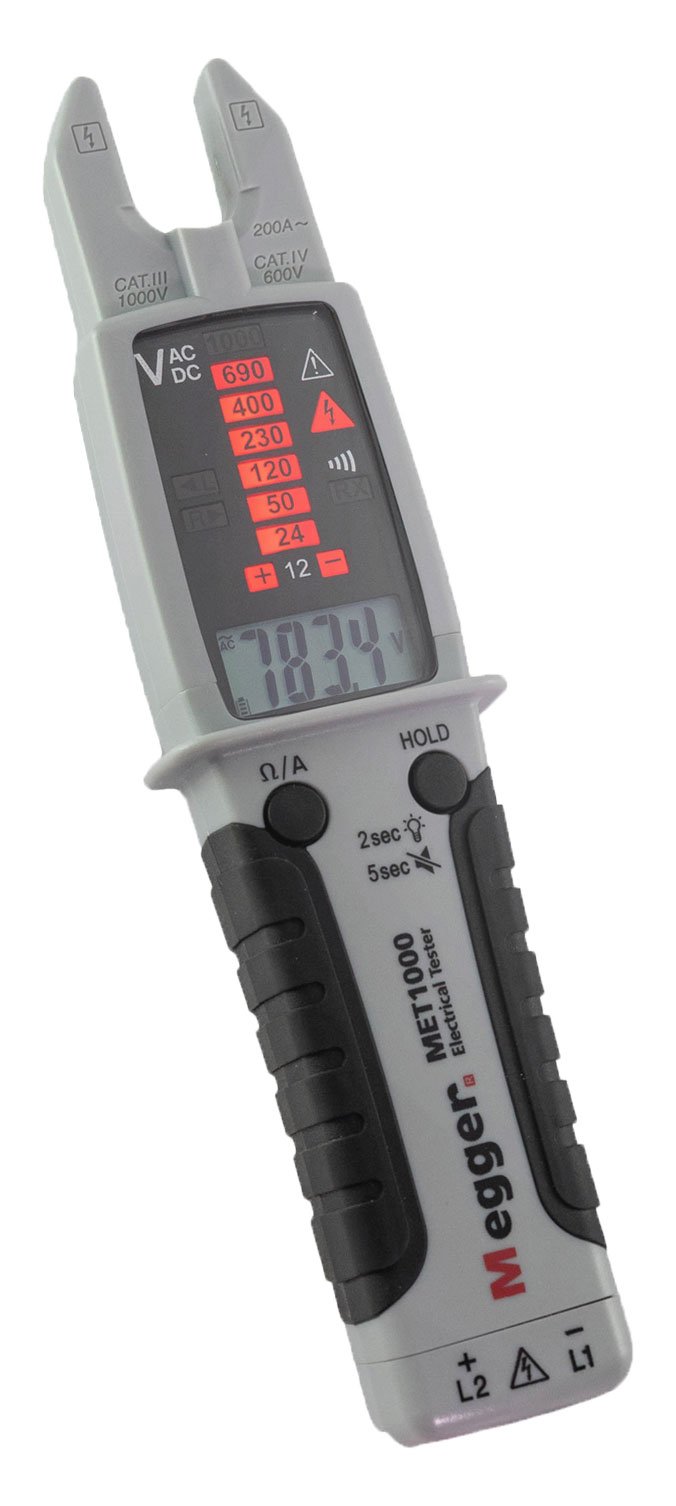

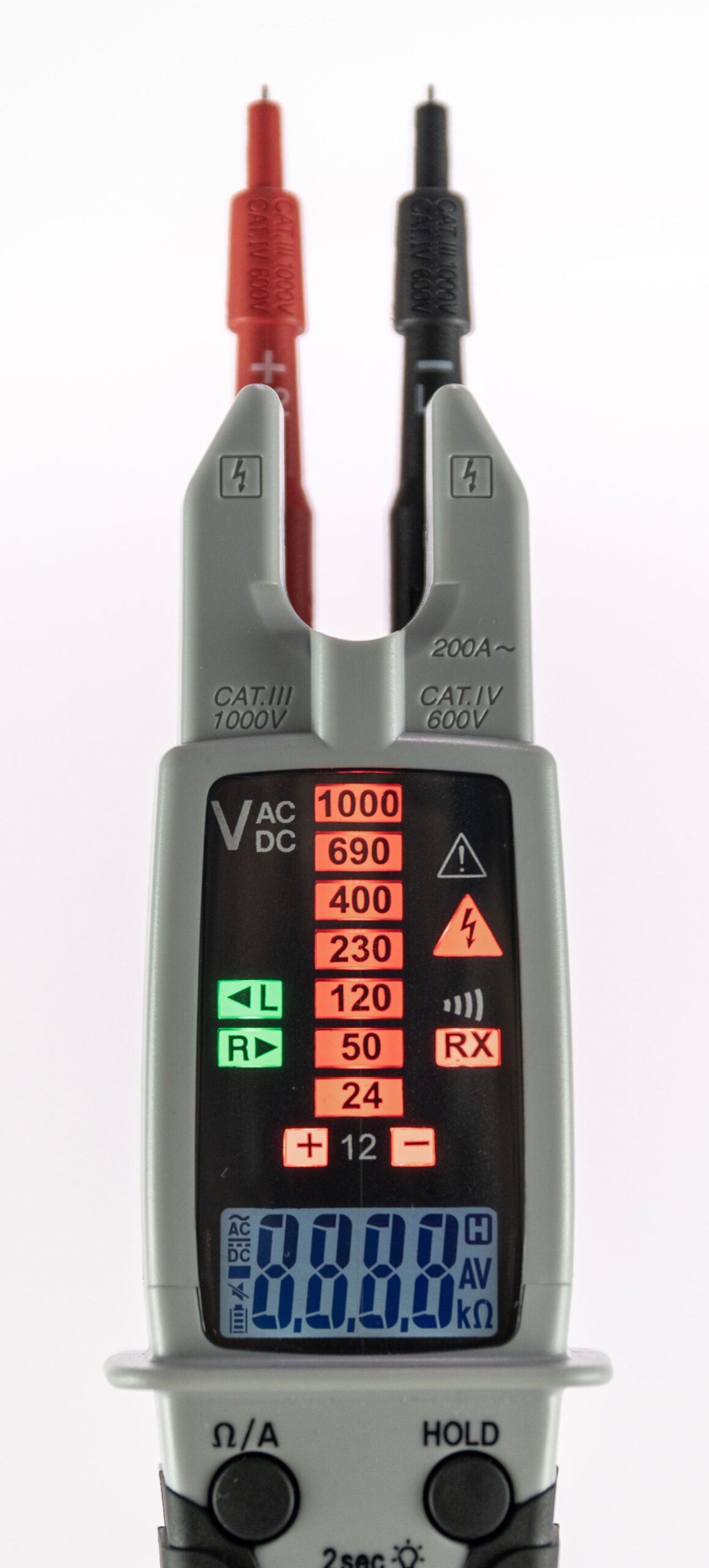

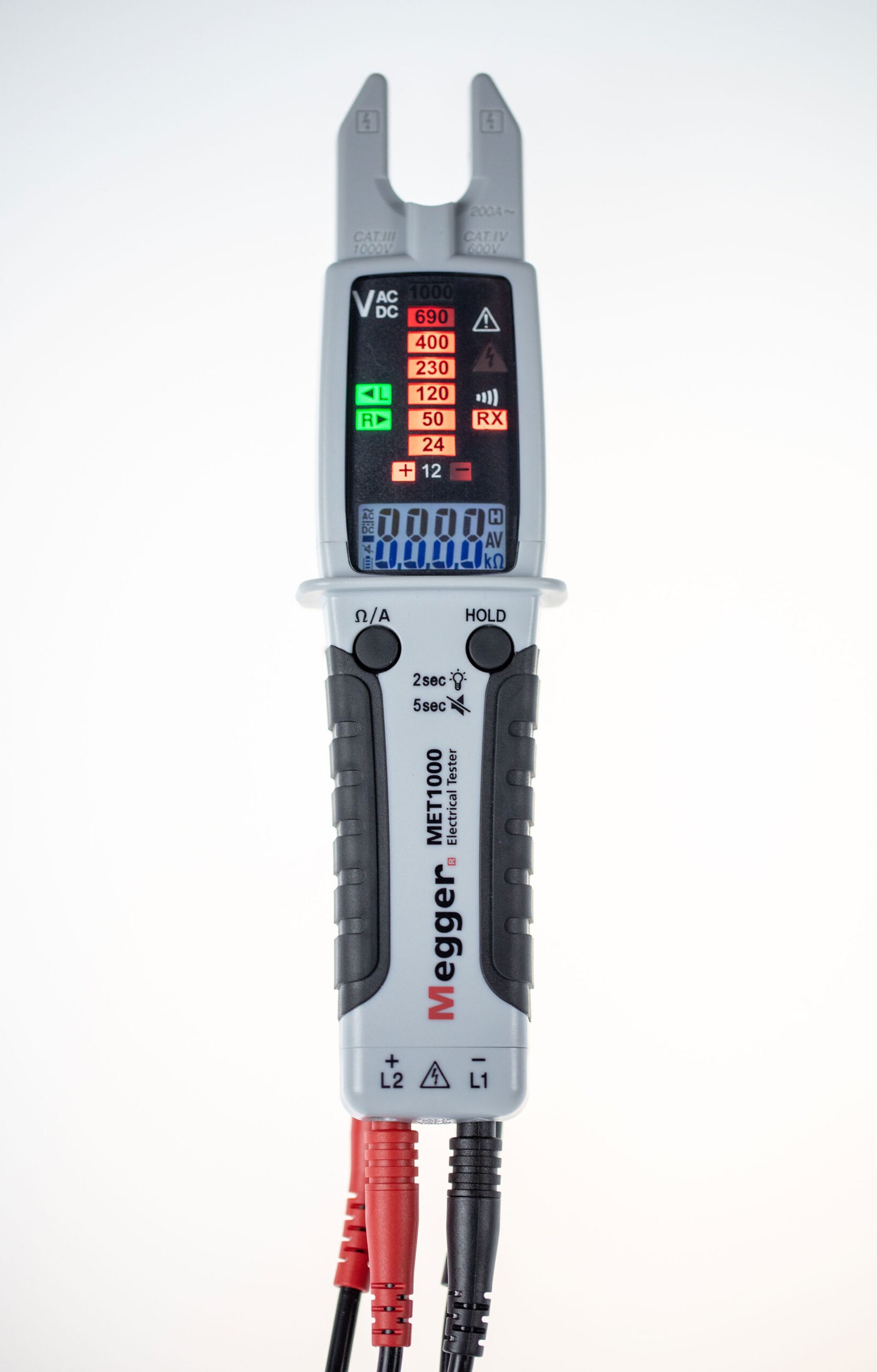

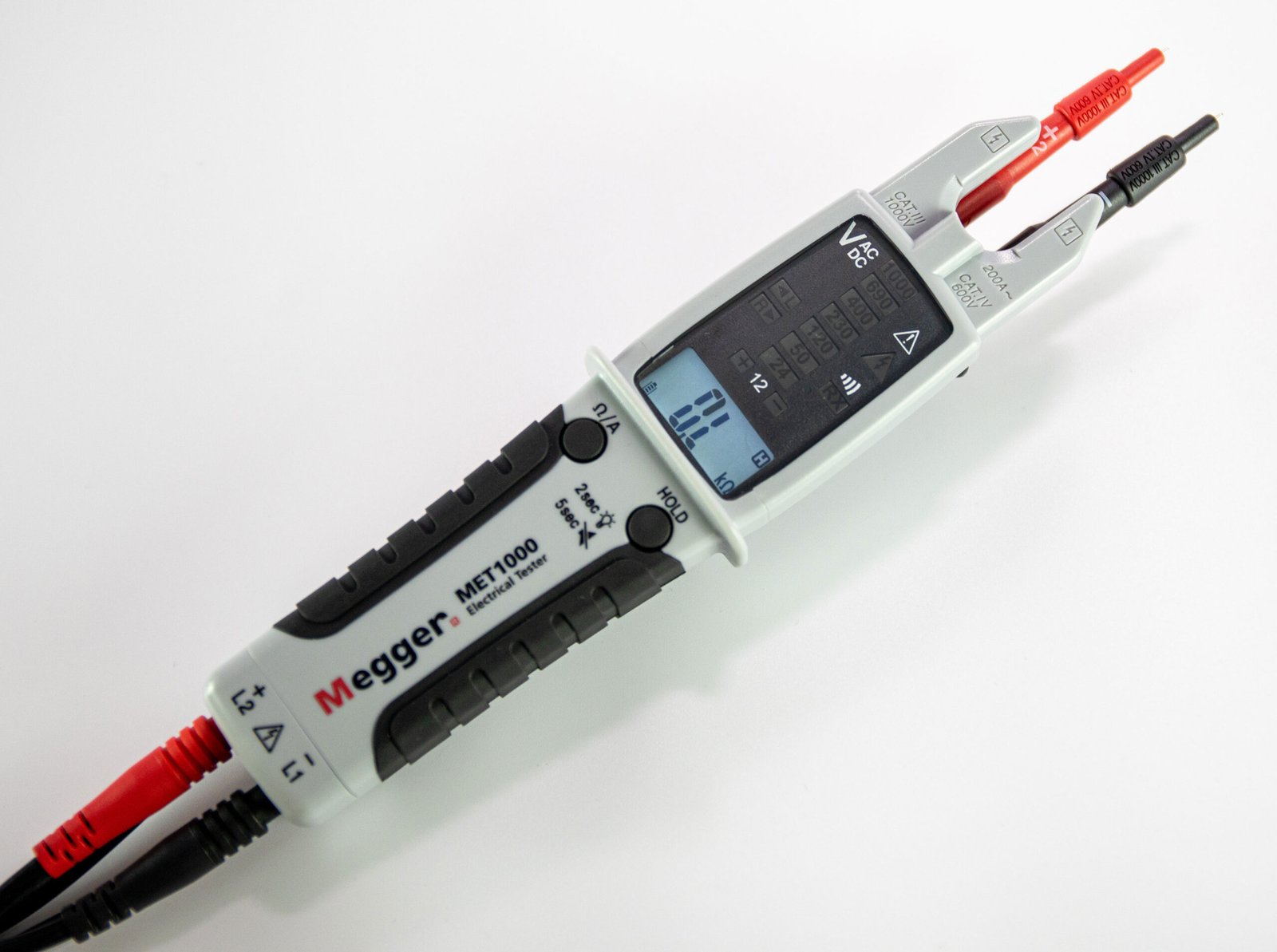

The Megger MET1000 is a multifunctional voltage and current tester providing electricians and electrical engineers with a versatile and robust hand-held all in one meter, with detachable test leads. Featuring both LED and LCD displays, it gives the user a 200 A AC & 1000 V AC/DC tester designed for everyday use. CATIV 600 V/CATIII 1000 V rated, with an IP65 housing for added protection, it reduces the number of testers required in the professional’s tool bag.

• Continuity to 50K Ohms
• Auto power On/Off
• 9999 count digital display
• < 0.5s bar response time
• < 0.5s DCV reading response time
• White LED auto backlight display
• Input peak current < 3.5m A @ 1000V
• 39mm width jaw size
• Up to 16mm diameter conductor

• Auto polarity detection
• ELV Indication
• Carrying holster with belt loop
• Hand guard and streamline design
• Ø2mm / Ø4mm tips interchangeable
• LED Torch
• IP65
• CAT IV 600 V / CAT III 1000 V

MULTIPLE TESTS:

In addition to the versatile auto-ranging voltage and continuity tests the Megger MET1000 has a built-in current lamp for AC current measurement to 200 A.

With TRMS AC measurements, a phase rotation test and both inrush current and single pole voltage test built in, the MET1000 is a truly versatile electrical tester, ideal for use in commercial, industrial and domestic environments. GS38 shrouds are provided as standard to ensure compliance with the latest standards.

A bright LED torch aids safe working in poorly lit conditions and with the added benefit of an IP65 casing – incorporating a protective finger guard – ergonomic design, instrument carrying holster and a simple to use probe mounting on the rear of tester all help to keep the user safe and the instrument protected.

Incorporating a comprehensive self-test feature, acoustic continuity and voltage indication, a maximum current draw of >3.5m A to avoid unwanted tripping of RCD’s/RCBO’s and the ability to warn the operator of dangerous voltages, even when the batteries are exhausted, ensure the Megger MET1000 meets the practical demands of today’s busy test technicians.
