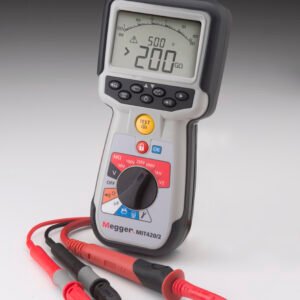

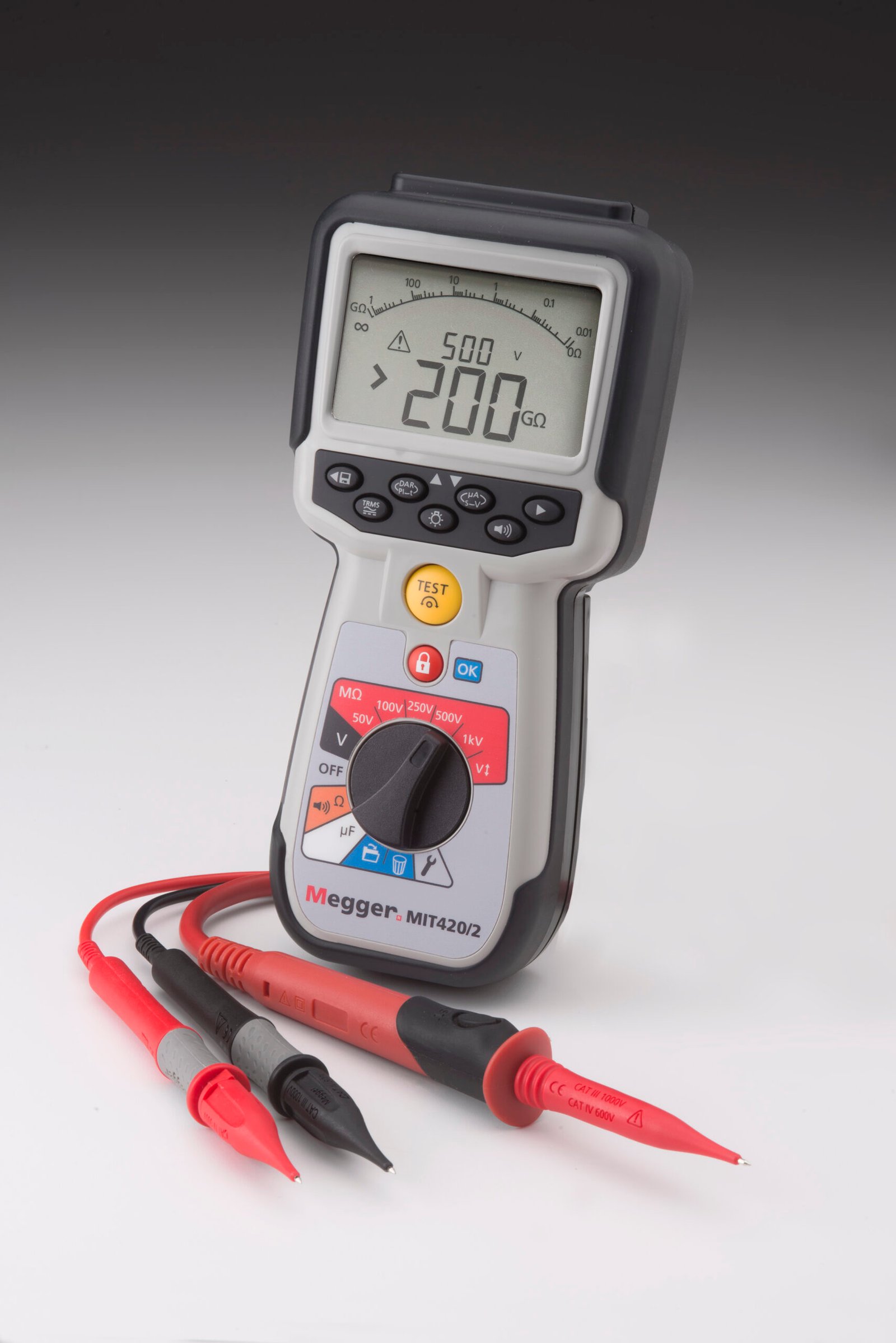

Megger MIT420/2 Kit – MIT420/2 Insulation and Continuity Tester with VF5 Voltage Pen

• MIT420/2 Kit – MIT420/2 includes insulation and continuity test with VF5 voltage pen
• MIT420/2 – 50 V, 100 V, 250 V, 500 V, 1000 V insulation tester + PI and DAR + CAT IV 600 V + storage and recall
• Stabilized insulation test voltage (New)
• Single range, faster continuity testing from 0.01 O to 1 MO (New)
• 600 V Trms AC and DC voltage measurement

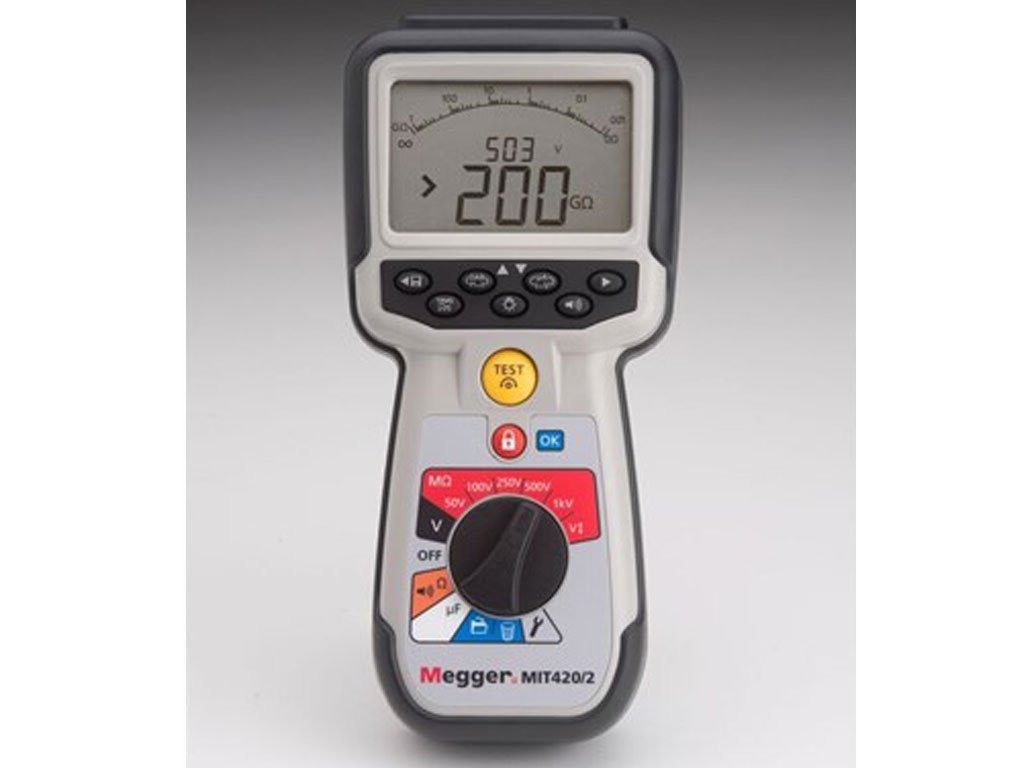

Megger MIT420/2 Megohmmeter / Insulation Resistance Testers

The MIT400/2 series insulation and continuity testers are designed not just for Electrical and Industrial, but with an exceptionally wide range of applications from electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, maintenance etc.

Insulation testing has been enhanced with feedback controlled test voltages to limit over-voltage to 2%, rather than the industry standard of 10-20%.

A variable range has been added to allow any intermediate voltage from 50 V to 1000 V in 10 V steps, where application-specific test voltages are required that do not appear in the standard ranges.

Continuity testing is now significantly faster, and a single auto-ranging 0.01 O to 1.0 MO function replaces the “ohms” and “kOhms” ranges. Retained are the 200 mA and 20 mA test options.

Replacing the original MIT400 instruments the new units feature a redesigned case, back-stand, and 6-cell battery compartment with separate fuse access. All instruments are over-molded for increased protection and achieve an IP54 weatherproof rating.

The range consists of the following instruments:

• MIT400/2 250 V, 500 V and 1000 V
• MIT410/2 50 V, 100 V, 250 V, 500 V and 1000 V + Polarization Index, Dielectric Absorption Ratio
• MIT415/2 250 V, 500 V
• MIT420/2 50 V, 100 V, 250 V, 500 V and 1000 V + Polarization Index, Dielectric Absorption Ratio, Variable Test Voltage and result storage
• MIT430/2 50 V, 100 V, 250 V, 500 V and 1000 V +Polarization Index, Dielectric Absorption Ratio, Variable Test Voltage and Bluetooth download

Model applications

These models include all the features required for electricians, technicians and engineers working in a range of industries. Available features are selected to make testing easy and fast in a range of situations.

• Building/Campus electrical maintenance
• Large and small scale electrical installations
• Periodic electrical systems inspection and testing
• Cable testing

Other model applications

Megger Testers are used to test electrical wiring and other components in buildings, manufacturing facilities, government entities and other general business operations.

Applications for these instruments include insulation testing, ground testing, low resistance testing, battery testing, hi-pot testing and more. With the broadest, most diverse choice of instruments in the industry, we are truly your single source for electrical testing needs.

• Industrial and Power Electrical Installation MIT Models:410 420 and 430
• Service, Repair and Maintenance 420 and 430
• Telecommunication Testing MIT Models: 480, 481 and 485
• Special Applications Testing MIT Model: 40X

Features and Benefits

• CAT IV 600 V rating – provides greater safety when testing at higher voltage levels
• Adjustable insulation test voltages – provides 250 V to 1000 V or 50 V to 1000 V. The special applications instrument (Model MIT40X) offers test voltages from 10 V to 100 V in 1 V steps.
• Dual digital display readout – allows display of complimentary test information simultaneously (for example M½ plus test voltage or M½ plus leakage current)
• Digital and analog arc display – includes not only the digital readout but also Megger’s patented analog arc to replicate the response of a moving coil display
• Exceptional measurement range from 20 G½ to 200 G½ – highest insulation test range available on the market, providing a superior range of measurement applications.
• Choice of 20 mA or 200 mA continuity testing – allows user to select lower continuity range thus increasing battery life considerably
• Continuity auto-test capability – enables real two-handed operation without the need to press the test button
• Adjustable continuity limit alarm – allows pass/fail limits to be sent to speed testing
• Automatically perform PI and DAR tests – user is able to quickly perform two important diagnostic tests. . . Polarization Index (PI) and Dielectric Absorption Ratio (DAR)
• True RMS voltage measurement – allows accurate voltage measurement on noisy lines
• Auto ranging voltage measurement – automatically adjusts range from millivolts to 600 V AC or DC,
• eliminating the need to keep changing and ranging
• Live circuit warning – automatically warns of contact with a live circuit, voltage is displayed and testing is inhibited
• Auto fuse warning – warns of fuse failure automatically.
• No need to test the fuse manually.
• Buzzer select button – enable or disable the buzzer as required with resistance also displayed on the screen

The Megger VF5 Voltage Detector is intended to be used to check for the presence of AC voltage, indicated by a bright red LED situated within the white nylon tip, an audible sounder, plus a vibration alert. The detector has both low voltage (12 – 1000 V) and medium voltage (100 – 1000 V) ranges. The VF5 has the added advantage of a bright white LED torch for use in poor light.

APPLICATION

Suitable for identifying live conductors, finding a break in a conductor, or verifying a blown fuse while in a circuit and detecting AC voltage at socket outlets, switches, circuit breakers, fuses, cables and luminaires.
