Megger PVK350 – Photovoltaic Test Kit (irradiance meter, solar clamp meter and specialist PV test leads kit)

• Photovoltaic kit for installation, commissioning and testing of photovoltaic systems
• DCM1500S AC/DC solar clamp meter measures up to 2000 VDC and 1500 VAC
• PVM210 irradiance meter for optimal incident angle and positioning of solar panels
• PVHV1 (4 mm) test leads
• PVHV2 (PV) test leads

The Megger PVK350 is a photovoltaic test kit. When installing, commissioning and testing a photovoltaic installation, additional instrumentation is required to accompany the usual electrician’s test equipment. The PVK350 photovoltaic kit offers the additional equipment needed combining the DCM1500S AC/DC solar clamp meter, PVM210 irradiance meter and a range of specialist PV test leads, supplied in a single protective hard carry case.

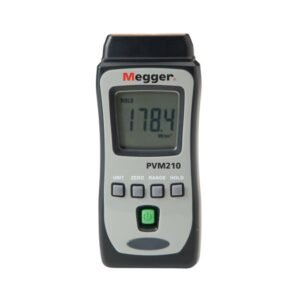

The PVM210 is a pocket size instrument that works as both a solar detector and meter combined in one unit. It permits single handed use, ideal for working at height and on sloping roofs.

The meter has a 3-3/4-digit display and a maximum range of 1999 W/m2. The hold function allows easy measurements of solar power. The measured result can be displayed in W/m2 or BTU (British Thermal Unit).

The DCM1500S clamp meter provides measurements up to 2000 VDC and 1500 VAC on non-mains connected circuits (using the PVHV leads), as well as 1500 A AC or DC. In addition to voltage and current measurement the DCM1500S can measure resistance, diodes, capacitance, temperature and frequency.

The DCM1500S is ideal for use in the installation, monitoring and testing of photovoltaic systems as well as general electrical testing

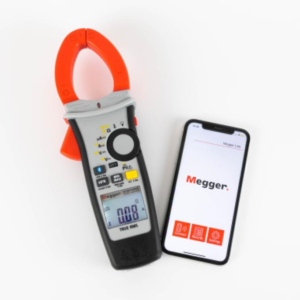

When used with the Megger Link App the measurement value can be remotely monitored on a smart device using built in Bluetooth. This allows a live trending graph and the ability to sample and log values for later analysis.

The PVK350 kit includes the PVHV1 (4 mm connection) and PVHV2 (PV) lead sets for high voltage tests. Additionally, a standard 4 mm to PV connector lead set is provided together with a PV connector adaptor lead set.
