Meiji Techno BMK-4/LED – Stereo Binocular Microscope, 5x Magnification, 45° Eyetube
35 people are viewing this product right now
Original price was: $790.00.$677.42Current price is: $677.42.
Shipping calculated at checkout.
Estimated delivery:5 days
Binocular 5x inclined long arm stereo microscope with sliding 5x objective and 10x eyepiece with LED incident light for BMK-4 only
- Stereo binocular microscope system
- With a body total magnification of 5X
- Includes a 10X eyepiece with an eyetube angle of 45°
- Also includes a post stand, a LED reflection illuminator, and an oblique top light
- Its input voltage is AC 100-240V 50/60Hz
Guarantee Safe and Secure Payment Checkout
Description
Meiji Techno BMK-4/LED
- Stereo binocular microscope system
- With a body total magnification of 5X
- Includes a 10X eyepiece with an eyetube angle of 45°
- Its input voltage is AC 100-240V 50/60Hz
Stereo Binocular Microscope, 5x Magnification, 45° Eyetube

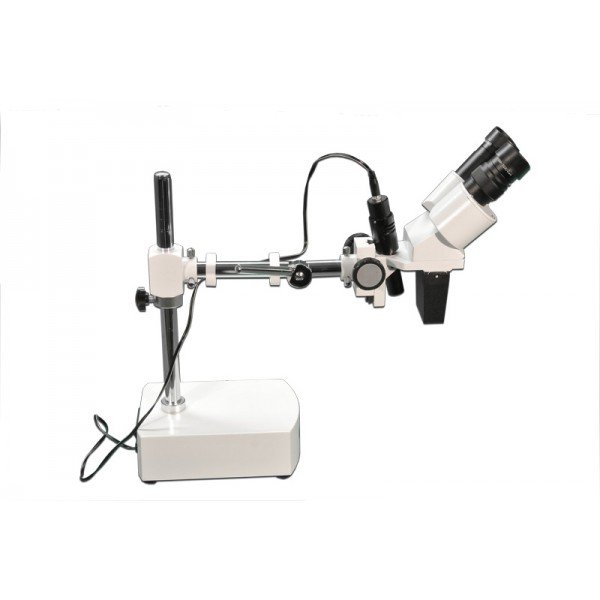

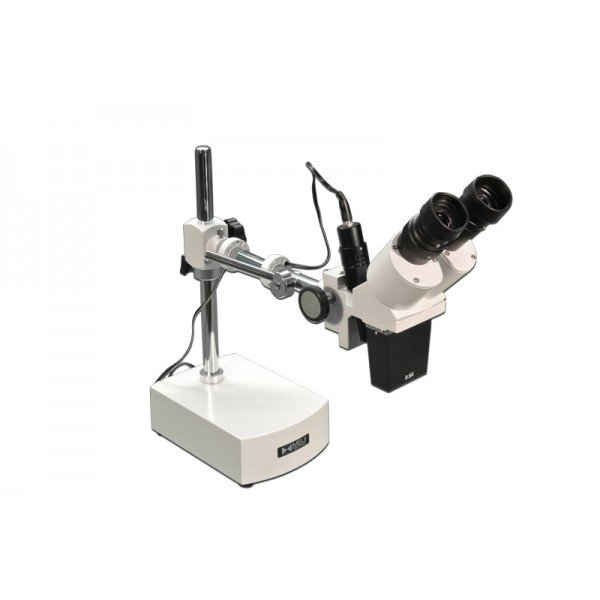

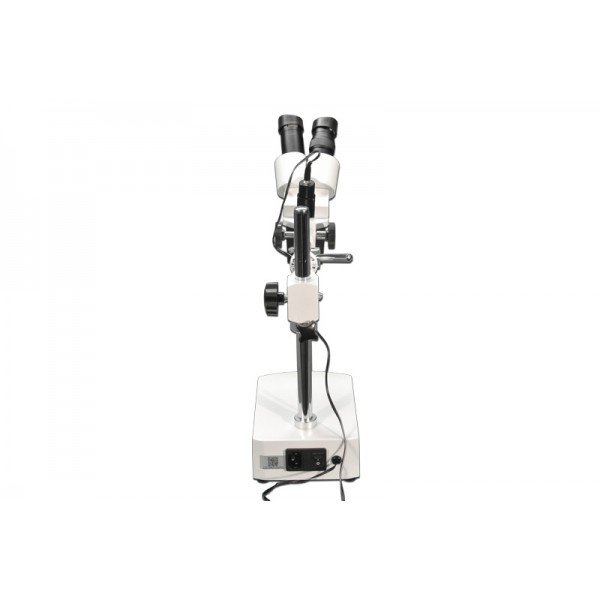

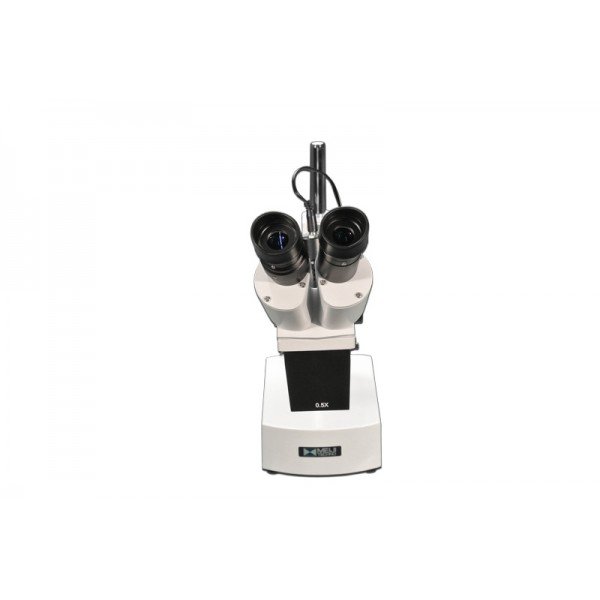

The BMK-4/LED is Meiji Techno America’s new stereo binocular microscope system with a body total magnification of 5X. This system includes a 10X eyepiece and a 0.5X objective with an eyetube angle of 45°. This system includes a boom stand, a LED reflection illuminator, and an oblique top light. Its input voltage is AC 100-240V 50/60Hz.
BMK-4 Optical System Info:
- Optical System: Finite
- System Optical Magnification: 5X
- Total Magnification: 5X
- Standard Eyepiece: 10X Eyepiece
- Standard Objective: 0.5X Objective
- System Field of View: 40mm
- System Working Distance: 250mm
BMK-4 Fixed Body Info:
- Body Optical System: Finite
- Body Magnification: 0.5X
- Observation Method: Binocular
- Eyetube Adjustment Mode: Siedentopf
- Eyetube Angle: 45°
- Erect/Inverted Image: Erect image
- Eyetube Rotatable: Fixed
- Interpupillary Adjustment: 55-75mm
- Eyetube Inner Diameter: 30.5mm
- Eyepiece Diopter Adjustable: Left ±5°, Right Not Adjustable
- Eyetube Fixing Mode: Locking Screw
- Eyepiece Type: Standard Eyepiece
- Eyepiece Optical Magnification: 10X
- Plan Eyepiece: Plan Eyepiece
- Eyepiece Size for Eyetube: 30.5mm
- Eyepiece Field of View: 20mm
BMK-4 Boom Stand Info:
- Stand Type: Boom Stand
- Vertical Post Height: 280mm
- Vertical Post Diameter: 18mm
- Cross Adapter Type: Dual Hole Adapter
- Horizontal Arm Type: Horizontal Post
- Horizontal Arm Length: 190mm
- Horizontal Diameter: 18mm
- Mounting Hole on the Top of Horizontal Arm: 18mm
- Horizontal Rotation Angle: 360° Rotatable
- Horizontal Arm Travel Distance on Z-Axis: 200mm
- Horizontal Arm Travel Mode on Horizontal Direction: Manual
- Horizontal Arm Travel Mode on Z Direction: Manual
- Base Type: Table Base
- Base Shape: Rectangle
- Base Dimensions: 190x130x55mm
- Arbor Length: 70mm
- Arbor Diameter: 18mm
- Arbor Rotation Range on Z Direction: 180°
- Arbor Adapter Type: Fixed
BMK-4 Microscope Illuminator Info:
- Illumination Type: LED Reflection Light
- Top Illumination: Oblique Top Light
- Top Illumination Type: LED
BMK-4 Power Supply Info:
- Output Power: 6W
- Input Voltage: AC 100-240V 50/60Hz
- Output Voltage: DC 6V
- Power Cord Connector Type: USA 3 Pins
- Power Cable Length: 1.5m
Microscopes/Benchtop and Portable Microscopes Template | |
|---|---|
| Type (Microscopes) | Stereo |
| Body Style | Binocular |
| Illumination Type | LED |
| Diopter Adjustment | Yes |
| Eyepiece Inclination | Yes |
| Eyepiece Inclination Degress | 45 Degrees |
| Interpupillary Distance Max | 75 MM |
| Interpupillary Distance Min | 55 MM |
| Field of View (microscope) | 20mm |
| Objective Lens Zoom Min | 0.5 x |
| Magnification max | 5 x |
| Working Distance | 250 MM |
| Stand Base Size | 190x130x55mm |
Product General Attributes | |
| Product Weight | 13.34 LBS |
| Product Height | 14.96 IN |
| Product Length | 17.72 IN |
| Product Width | 5.12 IN |
| Shipping Weight | 14.00 LBS |
| Power Supply Voltage | 120V/220V Universal |
