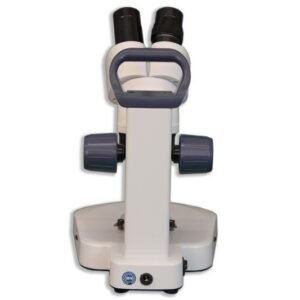

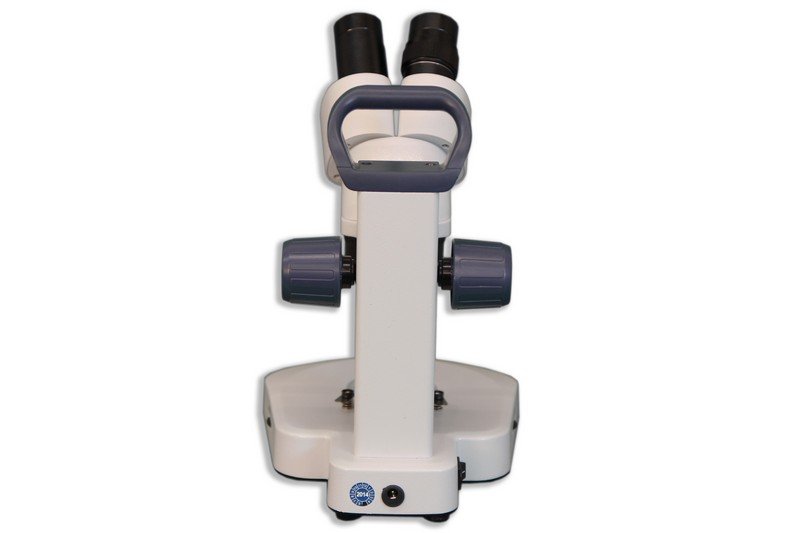

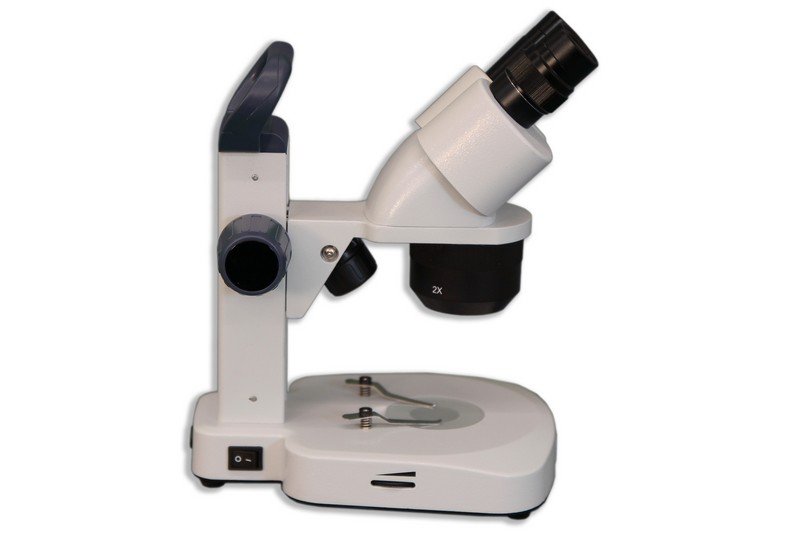

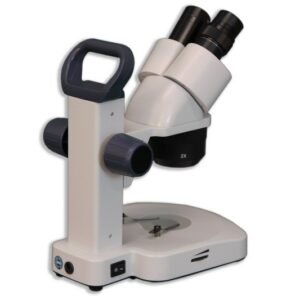

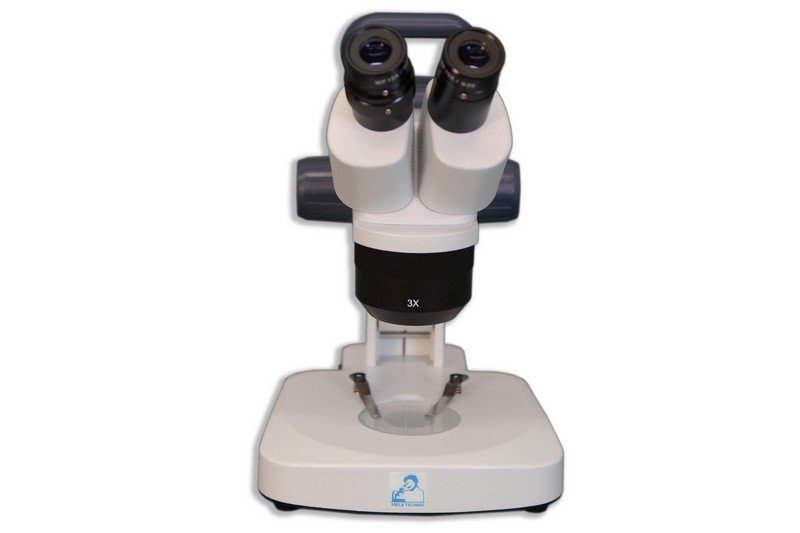

Meiji Techno EM-22 – Binocular Entry-Level Turret Stereo Microscope

• EM-22 Binocular Entry-Level Turret Stereo Microscope
• Turret Style Objective Changer with Triple Magnifications
• Robust metal body with smooth rack & pinion
• Fresh design, Ergonomic focus knobs
• Light weight, compact body, easy to carry with hand grip

The EM-20 Series Stereo Microscopes have crisp, erect images over a wide field of view.

Featuring incident and transmitted illumination, these student microscopes are built to last, year after year. Just perfect for grade schools and high schools!

This series is great for observing any biological or physical science specimens, coins, etc., virtually any object because the stand allows the optics to be raised high enough to fit virtually any specimen.

VIEWING HEADS

Binocular 45° inclined tubes, One ± 5 diopter adjustment, Interpupillary distance adjustable between 55 mm and 75 mm

EYEPIECES

Paired WF 10x/20mm eyepieces

OBJECTIVES

Revolving nosepiece with Triple 1x/2x/3x and 1x/2x/4x magnification objective with field of views of 20/10/6.7 mm and 20/10/5 mm.Magnifications from 10x up to 20x, 30x and 40x with working distance 60 mm.

All optical parts are anti-fungus treated.

STAND

Rack and pinion design. Ergonomically designed base with 2 object clamps. Alloy metal cast, hardened off-white coated. Built-in rechargeable 1.800 mAh battery and external power supply.

FOCUSING ADJUSTMENT

Coarse adjustment with tension control.

ILLUMINATION

The 1 W transmitted and incident LED illuminators can be used simultaneously.Both light intensities can be adjusted separately. Rechargeable batteries enable portability.
