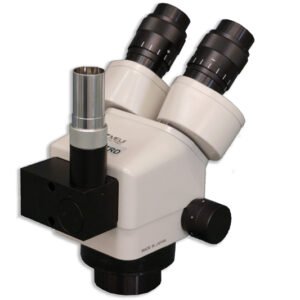

Meiji Techno EMZ-13TRD Trinocular Zoom Stereo Body with Detent
39 people are viewing this product right now
Original price was: $2,180.00.$1,869.35Current price is: $1,869.35.
Shipping calculated at checkout.
Estimated delivery:4 days
Techno America 1X-7X Trinocular Zoom stereo body only with detent (Requires stand and eyepiece), 100% MADE IN JAPAN
- Trinocular zoom stereo body
- 1.0x – 7x Zoom Range
- with detent click stops
- 10x – 70x magnification (10x eyepieces)
- Modular flexibility – configure to your needs!
- Other items are needed for a complete scope
- Body
- Eyepieces
- Stand
- Illumination
- Other items are needed for a complete scope
Guarantee Safe and Secure Payment Checkout
Description
The Meiji Techno EMZ-13TRD is a trinocular stereo microscope body with detents and a zoom range of 1x to 7x.
The Meiji Techno EMZ series are stereo microscopes with zoom control. Available in both binocular and trinocular formats, the EMZ series are completely modular – users select their stand, eyepieces, and light source from a wide selection of high quality equipment. Think of this as an a la carte microscope. Meiji Techno enables users to easily create custom configurations, specific to their applications. You get exactly what you need, and nothing you don’t want.
Optics
The EMZ series are available in several different zoom ranges, as can be seen below. And when paired with any of over a dozen eyepieces and auxiliary objectives, it is possible to achieve magnification levels over 400x. Furthermore, eyepieces and objectives are easily changed, making the EMZ an extremely versatile piece of equipment. Please see the magnification chart in the “Documents” tab for more information. With one microscope, you can easily go from very low magnification to several hundred times, by only changing a component.
The Meiji Techno EMZ series are stereo microscopes with zoom control. Available in both binocular and trinocular formats, the EMZ series are completely modular – users select their stand, eyepieces, and light source from a wide selection of high quality equipment. Think of this as an a la carte microscope. Meiji Techno enables users to easily create custom configurations, specific to their applications. You get exactly what you need, and nothing you don’t want.
Optics
The EMZ series are available in several different zoom ranges, as can be seen below. And when paired with any of over a dozen eyepieces and auxiliary objectives, it is possible to achieve magnification levels over 400x. Furthermore, eyepieces and objectives are easily changed, making the EMZ an extremely versatile piece of equipment. Please see the magnification chart in the “Documents” tab for more information. With one microscope, you can easily go from very low magnification to several hundred times, by only changing a component.
- EMZ-2: 0.7x – 4.5x
- EMZ-5: 0.7x – 4.5x
- EMZ-8: 0.7x – 4.5x
- EMZ-10: 0.7x – 4.5x
- EMZ-12: 0.4x – 2.5x
- EMZ-13: 1x – 7x
Stands
There are over two dozen different stands for the EMZ. These range from plain stands, to units with integrated illumination, to articulating arms which enable users to easily move their microscope out of the way. Meiji Techno recognizes that the EMZ series will be used in everything from forensics to biology, and has created a stand for all possible applications.
Binocular and Trinocular Models
The EMZ is available in both binocular and trinocular formats. And documentation is made easy with any of Meiji Techno’s high quality microscope cameras. Simply attach the camera to a trinocular port, and begin to document your research. Powerful software is also included to easily process photos.
Illumination
Users can select from a wide variety of illumination sources. The EMZ is compatible with several types of fiber optics, ring lights, Halogens, LEDs, Tungsten lamps and much more. There are also several different light intensities and color temperatures available.
- FT193 – Halogen fiber optics
- FL-5000-US-DG – LED fiber optics
- FR-LED – LED ring light
- and many more!!
Microscopes/Benchtop and Portable Microscopes Template | |
|---|---|
| Type (Microscopes) | Stereo |
| Body Style | Trinocular |
| Application (Microscopes) | Biological, Industrial/Research, Teaching Application (Microscopes) Physician, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Palentologists, Entomologists, Gemologists, Quality COntrol Personal, Quality Assurance Personel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Opthalmic Specialists, Dermatologists, Circuit Board rework and repair personnel, Aquaculture professionals, Horticultural experts, Exterminators, Fish and wildlife departments, U.S. Customers Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialists, Ballistics experts, etc.. |
| Diopter Adjustment | Yes |
| Eyepiece Magnification | 10 |
| Eyepiece Inclination | Yes |
| Eyepiece Inclination Degress | 45 Degrees |
| Interpupillary Distance Max | 75 MM |
| Interpupillary Distance Min | 54 MM |
| Field of View (microscope) | 23mm – 3.14mm |
| Objective Lens Zoom Min | 1.0 x |
| Objective Lens Zoom Max | 7 x |
| Magnification max | 70 x |
| Magnification min | 10 x |
| Zoom Ratio | 7:1 |
| Working Distance | 90 MM |
Product General Attributes | |
| Unique Features | 1.0x – 7x Zoom Range 90mm Working distance Trinocular rotatable 360° With Detent for Measuring |
| Warranty Details | MEIJI TECHNO will repair or replace, at its option, any instrument which under normal conditions of use and service proves to be defective in material or workmanship. No charge will be made for labor or parts with respect to defects covered by this warranty, provided that the work is done by MEIJI TECHNO. This warranty does not cover expenses incurred in the removal or reinstallation of any instrument or instruments, whether or not proven defective. Replacement or repairs furnished under this warranty are subject to the same terms and conditions of the original warranty. |
| Country of Origin | Japan |
